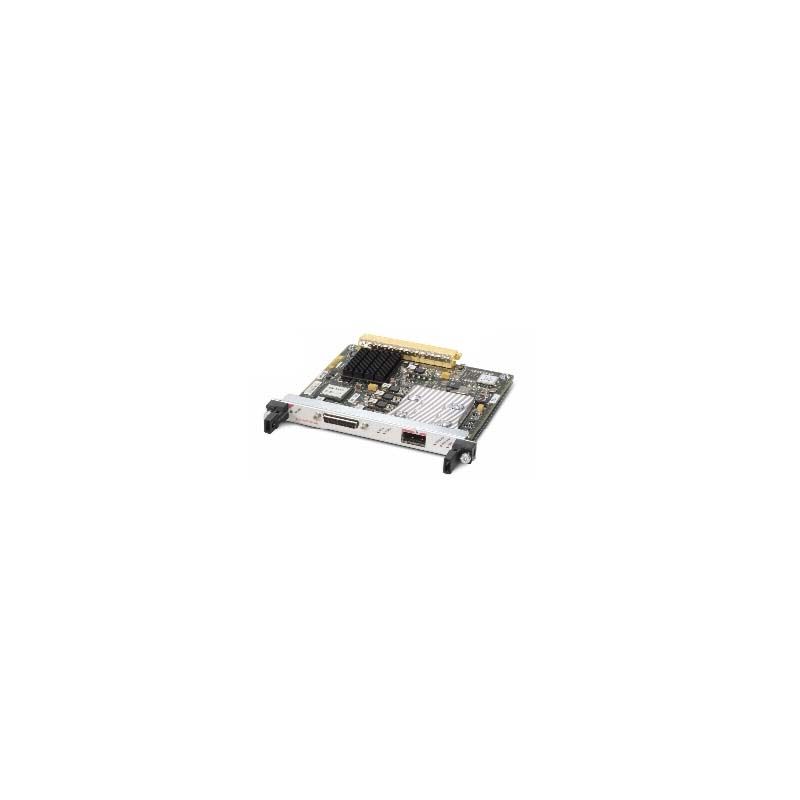

SPA-OC192POS-XFP, Cisco ASR 9000 Adapter, 1-port OC192/STM64 POS, RPR, XFP Optics

Brand: Cisco · SKU: SPA-OC192POS-XFP · MPN: SPA-OC192POS-XFP · Category: Components

SPA-OC192POS-XFP, Cisco ASR 9000 Adapter, 1-port OC192/STM64 POS, RPR, XFP Optics
Request for Quote
In Stock • 10 units

Cisco ASR 9000 Adapter SPA-OC192POS-XFP 1-port OC192/STM64 POS/RPR XFP Optics

View Components Products

Specifications

ModelSPA-OC192POS-XFP
Weightkg
ConnectorsXFP-LC connector; Long Reach (LR) SC connector; Very Short Reach (VSR) MTP (MPO) multifiber optical connectors
DescriptionCisco ASR 9000 Adapter, SPA-OC192POS-XFP, 1-port OC-192/STM-64 POS/RPR XFP Optics
Clock AccuracyLayer 3 clock accuracy ±4.6 ppm over full operating temperature range
EMC ComplianceFCC Part 15 (CFR 47); ICES-003; EN 55022; CISPR 22; AS/NZ 3548; VCCI; EN 55024; EN 50082-1; EN 61000-6-1; EN 61000-3-2; EN 61000-3-3
ETSI ComplianceEN 300 386 / EN 300 386-2 Class B; ETS 300 019 Storage Class 1.1; ETS 300 019 Transportation Class 2.3; ETS 300 019 Stationary Use Class 3.1
NEBS ComplianceDesigned to meet SR-3580 NEBS criteria Level 3; GR-63-CORE physical protection; GR-1089-CORE EMC and safety
Safety ComplianceUL 60950; CSA 22.2 No. 60950; EN 60950; IEC 60950 CB Scheme; ACA TS001; AS/NZS 3260; EN 60825 / IEC 60825 laser safety (SR, IR Class 1; VSR Class 1M); 21 CFR 1040 FDA laser safety (SR, IR Class 1; VSR Class 1M)
Network ManagementRFC 2558 MIB for SONET/SDH; SNMP management
Physical InterfaceOC-192c/STM-64c fixed interface or pluggable XFP optics module
Weight (Datasheet)0.75 lb (0.34 kg)
Physical DimensionsHeight: 0.8 in (2.03 cm) single-height XFP interface; Height: 1.6 in (4.06 cm) double-height VSR, LR fixed optics; Width: 6.75 in (17.15 cm); Depth: 7.28 in (18.49 cm)
Product DescriptionCisco 1-Port OC-192c/STM-64c POS/RPR Shared Port Adapter with XFP Optics
Storage EnvironmentStorage temperature: -38 to 150 °F (-40 to 70 °C); storage humidity: 5% to 95% relative humidity
Supported ProtocolsHDLC (RFC 2615); PPP (RFC 1662); Frame Relay (RFC 2427); IPv4; IPv6; IEEE 802.17 RPR; IETF 2892 SRP
Port Density per SPA1 port; DPT/RPR configuration: two SPAs are needed to connect to one RPR ring
SONET/SDH ComplianceTelcordia GR-253-CORE (as applicable); ANSI T1.105; ANSI T1.231; ITU-T G.707; ITU-T G.957; ITU-T G.825 (as applicable)
Operating EnvironmentOperating temperature: 41 to 104 °F (5 to 40 °C); operating humidity: 5% to 85% relative humidity
Product CompatibilityCisco ASR 1000 Series Router; Cisco ASR 9000 Series Router
RPR Operation CablingRequires mate cable part number CBL-RPR-OC192-L or CBL-RPR-OC192-S
Synchronization ModesLocal (internal) timing; loop-timed (recovered from network)
Additional Path EventsLoss of pointer (LOP); positive stuffing event (PSE); negative stuffing event (NSE); path unequipped indication signal (PUNEQ); path payload mismatch indication signal (PPLM)
Line Alarms and EventsB2 error counts; B2 threshold crossing alarms (TCA); line alarm indication signal (LAIS); line remote defect indication (LRDI); line remote error indication (LREI)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this SPA-OC192POS-XFP, Cisco ASR 9000 Adapter, 1-port OC192/STM64 POS, RPR, XFP Optics (SPA-OC192POS-XFP) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This SPA-OC192POS-XFP, Cisco ASR 9000 Adapter, 1-port OC192/STM64 POS, RPR, XFP Optics includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the SPA-OC192POS-XFP, Cisco ASR 9000 Adapter, 1-port OC192/STM64 POS, RPR, XFP Optics compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SPA-OC192POS-XFP.
