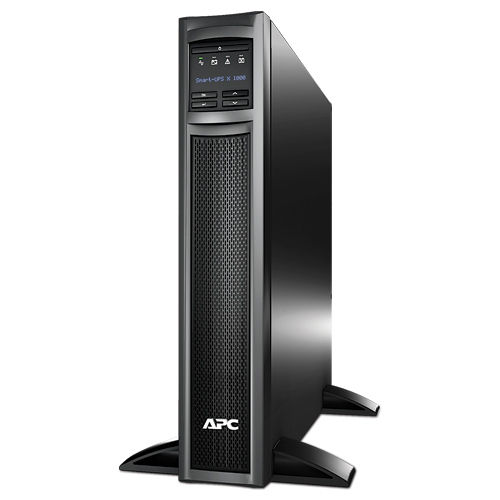

APC Smart-UPS X 1000VA uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 8 AC outlet(s)
Brand: APC · SKU: SMX1000 · MPN: SMX1000 · Category: Components
APC Smart-UPS X 1000VA, Line-Interactive, 1 kVA, 800 W, Sine, 230 V, 50/60 Hz. APC Smart-UPS X 1000VA uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 8 AC outlet(s) (part number SMX1000) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 490 mm, width 432 mm, height 89 mm, weight 22.9 kg, waveform Sine, interface SmartSlot,USB, power plug C14 coupler, form factor Rackmount/Tower. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 490 mm |
|---|---|
| Width | 432 mm |
| Height | 89 mm |
| Weight | 22.9 kg |
| Waveform | Sine |
| Interface | SmartSlot,USB |
| Power plug | C14 coupler |
| Form factor | Rackmount/Tower |
| Noise level | 40 dB |
| Battery type | RBC116 |
| Cable length | 1.83 m |
| Output power | 800 W |
| UPS topology | Line-Interactive |
| Certification | CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Rack capacity | 2U |
| LED indicators | Yes |
| Package weight | 27.3 kg |
| Product colour | Black |
| AC outlet types | NEMA 5–15R, C13 coupler, IEC Jumpers |
| Input frequency | 50/60 Hz |
| Maximum current | 60 A |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Operating altitude | 0 - 3000 m |
| Warranty | 3-Year Warranty |
| Weight | 22.9 kg |
| Dimensions | 432 mm x 490 mm x 89 mm |
Product Description
Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. High frequency design Reduces or eliminates bulky transformers resulting in lighter units for ease of handling. Auto recognition of external batteries UPS recognizes when external battery packs are attached and automatically adjusts runtime. Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Multiple switched outlet groups Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. High online efficiency Reduces utlility costs, generates less heat. EPO Attach the device to an Emergency Power Off (EPO) system so that power can be turned off in an emergency situation. SmartSlot Customize UPS capabilities with management cards. Cold-start capable Provides temporary battery power when the utility power is out. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Scalable runtime Allows additional run time to be quickly added as needed. Rack/Tower convertible Protects the initial investment in the UPS when migrating from tower to rack-mount environment. Plug-and-Play external batteries Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS
Key Features
APC Smart-UPS X 1000VA. UPS topology: Line-Interactive, Output power capacity: 1 kVA, Output power: 800 W. AC outlet types: NEMA 5–15R, C13 coupler, IEC Jumpers, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Smart-UPS X 1000VA uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 8 AC outlet(s) (SMX1000) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Smart-UPS X 1000VA uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 8 AC outlet(s) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Smart-UPS X 1000VA uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 8 AC outlet(s) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SMX1000.
