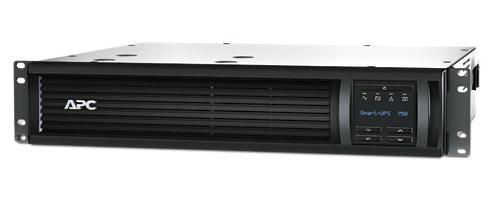

APC SMT750R2X122 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC outlet(s)
Brand: APC · SKU: SMT750R2X122 · MPN: SMT750R2X122 · Category: Components
APC SMT750R2X122, Line-Interactive, 0.75 kVA, 500 W, Sine, 75 V, 154 V. APC SMT750R2X122 uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 6 AC outlet(s) (part number SMT750R2X122) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 406 mm, width 432 mm, height 89 mm, weight 17.3 kg, waveform Sine, smartslot Yes, power plug NEMA L5-15P, form factor Rackmount. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 406 mm |
|---|---|
| Width | 432 mm |
| Height | 89 mm |
| Weight | 17.3 kg |
| Waveform | Sine |
| SmartSlot | Yes |
| Power plug | NEMA L5-15P |
| Form factor | Rackmount |
| Noise level | 42 dB |
| Cable length | 2.44 m |
| Display type | LCD |
| Output power | 500 W |
| UPS topology | Line-Interactive |
| Certification | CSA, FCC Part 15 Class A, UL 1449, UL 1778, REACH, PEP, EOLI |
| Package depth | 584 mm |
| Package width | 546 mm |
| Rack capacity | 2U |
| Package height | 241 mm |
| Package weight | 21.2 kg |
| Product colour | Black |
| AC outlet types | NEMA 5–15R |
| Input frequency | 50/60 Hz |
| Audible alarm(s) | Yes |
| Battery capacity | 168 VAh |
| Warranty | 3-Year Warranty |
| Weight | 17.3 kg |
| Dimensions | 432 mm x 406 mm x 89 mm |
Product Description
APC Smart-UPS 750VA LCD RM 2U 120V with L5-15P Reliable network power protection designed for deployment in retail and open access environments. Includes : CD with software , Documentation CD , Installation guide , Rack Mounting support rails , Smart UPS signalling RS-232 cable , USB cable - Cold-start capable Provides temporary battery power when the utility power is out. - Energy meter Provides actual kilowatt hours of usage for energy conscious users. - Green mode Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - High online efficiency Reduces utlility costs, generates less heat. - Intuitive LCD interface Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. - Predictive replace battery date Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. - Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. - SmartSlot Customize UPS capabilities with management cards. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Availability - Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. - Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced. - Pure sine wave output on battery Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. - Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Manageability - Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. - LED Indicators Provide easy-to-read status of the unit and utility power conditions. - USB connectivity Provides management of the UPS via a USB port (not available on all models). - Serial connectivity Provides management of the UPS via a serial port. - SmartSlot Customize UPS capabilities with management cards. Serviceability - Technical support Our experienced technical support engineers are available to answer your questions, giving you peace of mind knowing the help you need is there when you need it. - Easy to install Innovative design allows for fast, easy installation by almost anybody. - Hot-swappable batteries Ensures clean, uninterrupted power to protected equipment while batteries are being replaced - User-replaceable batteries Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Key Features
APC SMT750R2X122. UPS topology: Line-Interactive, Output power capacity: 0.75 kVA, Output power: 500 W. AC outlet types: NEMA 5–15R, Power plug: NEMA L5-15P, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 168 VAh, Battery life (max): 6 year(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA, FCC Part 15 Class A, UL 1449, UL 1778, REACH, PEP, EOLI
