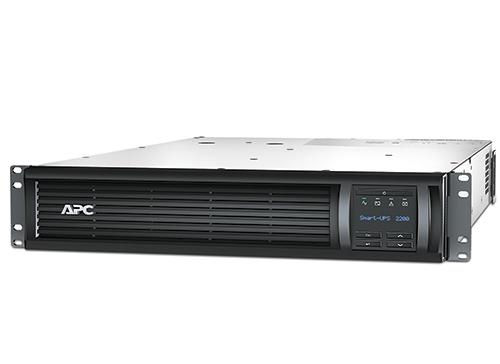

APC SMT2200R2X180 uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s)
Brand: APC · SKU: SMT2200R2X180 · MPN: SMT2200R2X180 · Category: Components
APC SMT2200R2X180, 2.2 kVA, 1980 W, 75 V, 154 V, 50/60 Hz, 120 V. APC SMT2200R2X180 uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s) (part number SMT2200R2X180) is an enterprise power supplies product available from Server Tech Central. Key specifications include depth 683 mm, width 480 mm, height 86 mm, weight 42.3 kg, efficiency 97.5%, power plug NEMA 5-20P, form factor Rackmount, noise level 55 dB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 683 mm |
|---|---|
| Width | 480 mm |
| Height | 86 mm |
| Weight | 42.3 kg |
| Efficiency | 97.5% |
| Power plug | NEMA 5-20P |
| Form factor | Rackmount |
| Noise level | 55 dB |
| Built-in fan | Yes |
| Cable length | 2.44 m |
| Cooling type | Active |
| Display type | LCD |
| Output power | 1980 W |
| Certification | CSA, FCC-15 A, UL 1778 |
| Rack capacity | 2U |
| LED indicators | Battery replacement |
| Package weight | 49.7 kg |
| Product colour | Black |
| AC outlet types | NEMA 5–20R, NEMA L6-15R |
| Input frequency | 50/60 Hz |
| Audible alarm(s) | Yes |
| Surge protection | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Operating altitude | 0 - 3000 m |
| Warranty | 3-Year Warranty |
| Weight | 42.3 kg |
| Dimensions | 480 mm x 683 mm x 86 mm |
Product Description
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys. - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. - Provides actual kilowatt hours of usage for energy conscious users. - Configure select outlet groups to shut down and turn on in a pre-determined order (for UPSs with switched outlet groups). - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. - Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. - Enables centralized management via StruxureWare Central. - Reduces utlility costs, generates less heat. - Customize UPS capabilities with management cards. - Provides temporary battery power when the utility power is out. - Prolongs battery life by regulating the charge voltage according to battery temperature.
Key Features
APC SMT2200R2X180. Output power capacity: 2.2 kVA, Output power: 1980 W, Input operation voltage (min): 75 V. AC outlet types: NEMA 5–20R, NEMA L6-15R, Power plug: NEMA 5-20P, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 5 min, Typical backup time at half load: 15 min. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CSA, FCC-15 A, UL 1778
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC SMT2200R2X180 uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s) (SMT2200R2X180) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC SMT2200R2X180 uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC SMT2200R2X180 uninterruptible power supply (UPS) 2.2 kVA 1980 W 8 AC outlet(s) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SMT2200R2X180.
