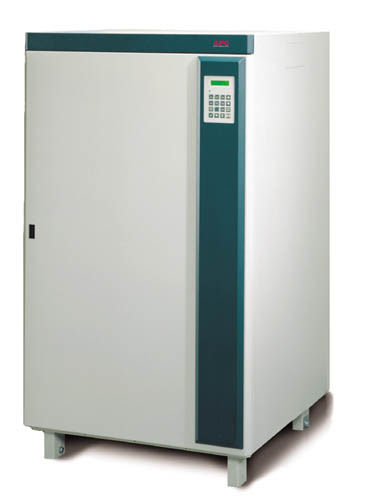

APC Silcon 20kW 400V UPS W-2 BPI uninterruptible power supply (UPS) 20 kVA 20000 W
Brand: APC · SKU: SL20KHB2 · MPN: SL20KHB2 · Category: Components
APC Silcon 20kW 400V UPS W-2 BPI, 20 kVA, 20000 W, 10.9 min, 37.7 min, 0 - 40 °C, 0 - 95%. APC Silcon 20kW 400V UPS W-2 BPI uninterruptible power supply (UPS) 20 kVA 20000 W (part number SL20KHB2) is an enterprise power supplies product available from Server Tech Central. Key specifications include interface DB-25 RS-232, Contact Closure, battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, output power 20000 W, dimensions (wxdxh) 800.1 x 800.1 x 1400 mm, output voltage note Configurable for 380: 400 or 415 V 3 Phase nominal output voltage, products per pallet 1 pc(s), nominal input voltage 400 V, output power capacity 20 kVA. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Interface | DB-25 RS-232, Contact Closure |
|---|---|
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Output power | 20000 W |
| Bundled software | (1)Hard Wire 4-wire (3PH + G) (1)Hard Wire 5-wire (3PH + N + G) (1)Hard Wire 3-wire (3PH) (1)Hard Wire 4-wire (3PH + N) (1)Hard Wire 4-wire (3PH - PEN) |
| Dimensions (WxDxH) | 800.1 x 800.1 x 1400 mm |
| Output connections | (1)Hard Wire 4-wire (3PH + G) (1)Hard Wire 5-wire (3PH + N + G) (1)Hard Wire 3-wire (3PH) (1)Hard Wire 4-wire (3PH + N) (1)Hard Wire 4-wire (3PH - PEN) |
| Output voltage note | Configurable for 380: 400 or 415 V 3 Phase nominal output voltage |
| Products per pallet | 1 pc(s) |
| Input connection type | Hard Wire 5-wire (3PH + N + G); Hard Wire 4-wire (3PH + PEN); Hard Wire 4-wire (3PH + N) |
| Nominal input voltage | 400 V |
| Output power capacity | 20 kVA |
| Emergency Power Off (EPO) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Typical backup time at full load | 10.9 min |
| Typical backup time at half load | 37.7 min |
| Operating relative humidity (H-H) | 0 - 95% |
| Warranty | 3-Year Warranty |
Product Description
Features 200% overload capability, Audible Alarms, Built-in SmartSlot, Built-in static bypass switch, Delta Conversion On-line Technology, Delta Conversion On-line Technology, Designed and manufactured under ISO9001 / ISO14001 certification, Environmental Protection, EPO, Event logging, Front-access servicing, Full-rated Power with kVA equaling kW, Full-rated Power with kVA equaling kW, Generator Compatible, Input Power Factor Correction, Intelligent Battery Management, Intelligent Battery Management, LCD AlphaNumeric Display, Overload Handling Capacity, Overload Indicator, Paralleling Capability, Paralleling Features for Capacity and Redundancy, Rated for Power-Factor Corrected Loads, Scalable Run Time, Sine-wave output, Software, Temperature Compensated Battery Charging, Web Management Includes Installation Guide, Parallel Card, Triple Chassis for 3 SmartSlots, User Manual, Web/SNMP Management Card
Key Features
APC Silcon 20kW 400V UPS W-2 BPI. Output power capacity: 20 kVA, Output power: 20000 W. Typical backup time at full load: 10.9 min, Typical backup time at half load: 37.7 min. Bundled software: (1)Hard Wire 4-wire (3PH + G) (1)Hard Wire 5-wire (3PH + N + G) (1)Hard Wire 3-wire (3PH) .... Products per pallet: 1 pc(s). Battery type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof, Interface: DB-25 RS-232, Contact Closure, Output connections: (1)Hard Wire 4-wire (3PH + G) (1)Hard Wire 5-wire (3PH + N + G) (1)Hard Wire 3-wire (3PH) ...
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Silcon 20kW 400V UPS W-2 BPI uninterruptible power supply (UPS) 20 kVA 20000 W (SL20KHB2) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Silcon 20kW 400V UPS W-2 BPI uninterruptible power supply (UPS) 20 kVA 20000 W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Silcon 20kW 400V UPS W-2 BPI uninterruptible power supply (UPS) 20 kVA 20000 W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SL20KHB2.
