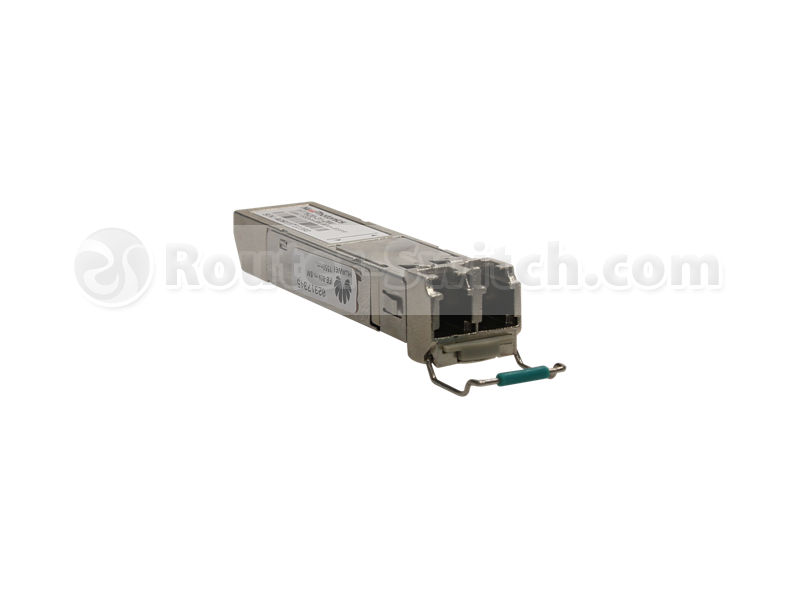

SFP-FE-LX-SM1310-BIDI, Huawei SFP Optics, BiDi Transceiver/1310nm/155M/15km
Brand: Huawei · SKU: SFP-FE-LX-SM1310-BIDI · MPN: SFP-FE-LX-SM1310-BIDI · Category: Networking
BiDi transceiver, eSFP, Tx1310nm/Rx1550nm, 155M, -15dBm, -8dBm, -32dBm, LC/PC, SM, 15km.
Specifications
| MTBF | 1,000,000 hours |
|---|---|
| Model | SFP-FE-LX-SM1310-BIDI |
| Weight | 0.5 kg |
| DDM/DOM | Yes (Digital Diagnostics Monitoring/Digital Optical Monitoring) |
| Data Rate | 155Mbps |
| Compliance | RoHS, MSA Compliant, IEEE 802.3 |
| Fiber Type | Single-mode (SM) |
| Form Factor | eSFP (Enhanced Small Form-factor Pluggable) |
| Case Material | Metal |
| Connector Type | LC/PC (Lucent Connector/Physical Contact) |
| Supply Voltage | 3.3 V |
| Maximum Distance | 15 km |
| Transceiver Type | BiDi (Bidirectional) Transceiver |
| Power Consumption | < 1W |
| Temperature Range | 0°C to 70°C |
| Receive Wavelength | 1550 nm |
| Transmit Wavelength | 1310 nm |
| Maximum Output Power | -8 dBm |
| Minimum Output Power | -15 dBm |
| Receiver Sensitivity | -32 dBm |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
