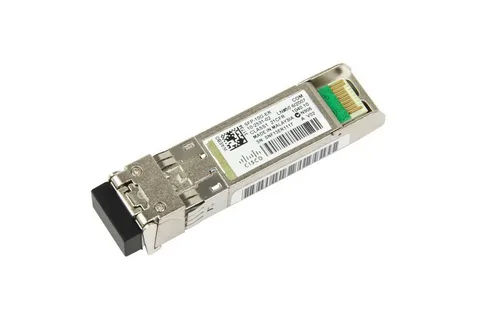

SFP-10GLR-31 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module
Brand: FS · SKU: SFP-10GLR-31 · MPN: SFP-10GLR-31 · Category: Networking
The SFP-10GLR-31 is a 10GBASE-LR SFP+ optical transceiver operating at 1310nm with up to 10km transmission over single mode fiber using an LC connector and DOM monitoring.
Specifications
| EMC | Supported |
|---|---|
| MTBF | 1,000,000 Hours |
| Media | Single-Mode Fiber (SMF) |
| DDM/DOM | Supported |
| TX Power | -8.2~0.5dBm |
| Protocols | IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI |
| Wavelength | 1310 nm |
| Form Factor | SFP+ |
| Max Data Rate | 10.3125 Gbps (10 Gbps) |
| Receiver Type | PIN |
| Connector Type | LC Duplex |
| Extinction Ratio | > 3.5dB |
| Transmitter Type | DFB |
| Power Consumption | < 1W |
| Max Cable Distance | 10 km |
| Receiver Sensitivity | <-14.4dBm |
| Bit Error Ratio (BER) | 1E-12 |
| Operating Temperature | 0 to 70°C (Commercial) |
| Warranty | 3-Year Warranty |
| Weight | 0.035 kg |
| Dimensions | Standard SFP Form Factor |
Key Features
The SFP-10GLR-31 is a 10 Gigabit Ethernet SFP+ optical transceiver designed for high speed network connectivity over single mode fiber. It uses a 1310nm wavelength and supports transmission distances of up to 10 kilometers, making it suitable for enterprise networks, data centers, campus networks, and telecommunications infrastructure. The module uses an LC duplex connector and is designed for single mode fiber (SMF) installations. Its SFP+ form factor allows it to be installed in compatible 10GbE switches, routers, network adapters, and other networking equipment.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this SFP-10GLR-31 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module (SFP-10GLR-31) is 100% genuine FS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This SFP-10GLR-31 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the SFP-10GLR-31 10GBASE-LR SFP+ 1310nm 10km DOM LC SMF Transceiver Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SFP-10GLR-31.
