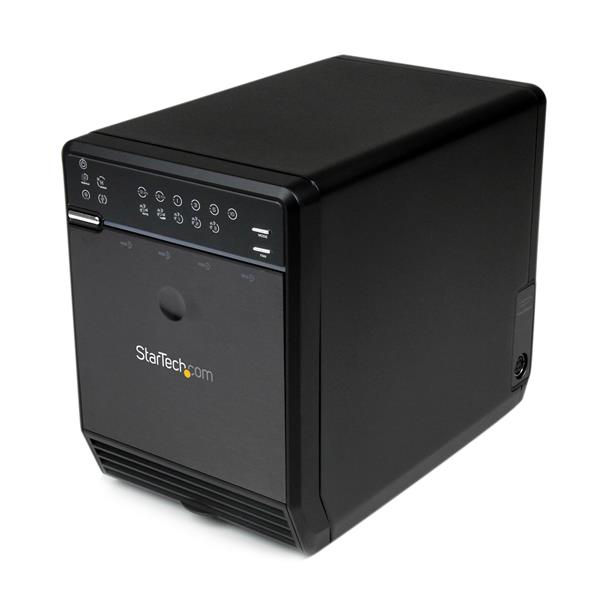

StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure
Brand: StarTech.com · SKU: SAT3540U3ER · MPN: SAT3540U3ER · Category: Components
StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure, 3.5", Serial ATA, Serial ATA II, 5 Gbit/s, Black. StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure (part number SAT3540U3ER) is an enterprise raid controllers product available from Server Tech Central. Key specifications include depth 215 mm, width 126 mm, height 170 mm, weight 1.8 kg, chipset JMicron JMB394 + JMB355 + JMS539, interface USB 3.0/eSATA, raid levels 0, 1, 1+0, 3, 5, fan diameter 8 cm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 215 mm |
|---|---|
| Width | 126 mm |
| Height | 170 mm |
| Weight | 1.8 kg |
| Chipset | JMicron JMB394 + JMB355 + JMS539 |
| Interface | USB 3.0/eSATA |
| RAID levels | 0, 1, 1+0, 3, 5 |
| Fan diameter | 8 cm |
| Certification | CE, FCC |
| Package depth | 293 mm |
| Package width | 158 mm |
| LED indicators | HDD, Power |
| Package height | 272 mm |
| Package weight | 2.75 kg |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Power requirements | 115 - 230V, 12V DC, 500mA |
| Storage drive size | 3.5" |
| eSATA ports quantity | 1 |
| External power adapter | Yes |
| Compliance certificates | RoHS |
| Maximum storage capacity | 16 TB |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Warranty | 3-Year Warranty |
| Weight | 1.8 kg |
| Dimensions | 126 mm x 215 mm x 170 mm |
Product Description
Turn 4 SATA hard drives into external RAID storage, connected through USB 3.0 or eSATA The SAT3540U3ER 4-Drive USB 3.0/eSATA to 3.5" SATA RAID Enclosure is a high-performance external RAID storage solution that supports up to 4 high capacity (tested with up to 4TB per bay) 3.5-inch SATA hard drives over a USB 3.0 or eSATA connection. The 4-bay RAID enclosure can be connected to the host/source computer through USB or eSATA and automatically builds your SATA RAID array based on your selection (Spanning, RAID 0, RAID 1, RAID 1+0, RAID 3, and RAID 5 supported), delivering a simple, yet flexible external storage solution. Designed for convenience, the enclosure features front panel LED indicators that provide RAID information and simple hard drive status and activity monitoring. The enclosure also features a built-in, 3-speed 80mm fan with automatic or manual controls that enable you to customize the speed of the fan as necessary to ensure suitable operating temperatures for optimized drive performance. The StarTech.com Advantage - Support for up to 4 drives provide large amounts of storage with a choice of high speed interfaces from USB 3.0 or eSATA - The removable front cover and accessible drive bays allows drives to be replaced easily in case of failure or a system upgrade - Built-in support for numerous RAID modes for most personal/business needs and an 80mm controllable cooling fan to keep drives from overheating
Key Features
StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure. Number of storage drives supported: 4, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA, Serial ATA II, Maximum storage capacity: 16 TB. Data transfer rate: 5 Gbit/s. RAID levels: 0, 1, 1+0, 3, 5. Product colour: Black
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure (SAT3540U3ER) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4 Bay External Hard Drive Array RAID Tower – eSATA USB 3.0 Enclosure compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SAT3540U3ER.
