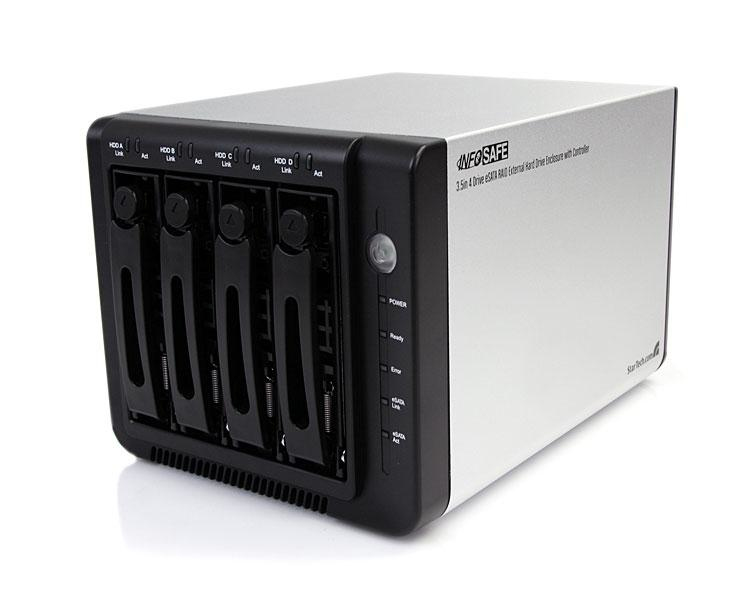

StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller
Brand: StarTech.com · SKU: SAT3540ER2 · MPN: SAT3540ER2 · Category: Components
StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller, 3.5", Serial ATA, 3 Gbit/s, Black, Silver. StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller (part number SAT3540ER2) is an enterprise raid controllers product available from Server Tech Central. Key specifications include depth 230 mm, width 170 mm, height 149.2 mm, weight 3.4 kg, chipset JMB393, SIL3531, material Aluminium, i/o ports 4x SATA, interface SATA. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 230 mm |
|---|---|
| Width | 170 mm |
| Height | 149.2 mm |
| Weight | 3.4 kg |
| Chipset | JMB393, SIL3531 |
| Material | Aluminium |
| I/O ports | 4x SATA |
| Interface | SATA |
| RAID levels | 0, 1, 5, 10 |
| Fan diameter | 8 cm |
| Package depth | 270 mm |
| Package width | 180 mm |
| LED indicators | Yes |
| Package height | 280 mm |
| Package weight | 4.88 kg |
| Product colour | Black, Silver |
| Data transfer rate | 3 Gbit/s |
| Power requirements | AC 110-240V/DC 12V |
| Storage drive size | 3.5" |
| eSATA ports quantity | 1 |
| External power adapter | Yes |
| Maximum storage capacity | 2 TB |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Warranty | 3-Year Warranty |
| Weight | 3.4 kg |
| Dimensions | 170 mm x 230 mm x 149.2 mm |
Product Description
Add up to 8TB of RAID, hot-swappable 3.5in SATA hard drive storage capacity to your computer through eSATA. - Built-in support for numerous RAID modes for most personal/business needs and an 80mm controllable cooling fan to keep drives from overheating. - Support for up to 4 drives provide large amounts of storage over a high speed eSATA connection. - Included PCIe-based eSATA card ensures you have the right hardware to fully utilize the enclosure out of the box. The SAT3540ER2 External RAID Multi Bay Hard Drive Enclosure/Mobile Rack delivers a high performance storage solution that lets you install up to four 3.5in SATA hard drives (including SATA, SATA II and SATA III-6Gbps) for connection to a host computer through eSATA. The 4-drive mobile rack supports JBOD and standard RAID modes (RAID 0, 1, 10 (1+0)), in addition to RAID 5, Spanning/Concatenation, and Cloning (RAID 1 + Hot Spare); the cloning mode enables a drive to be removed for off-site storage, without interrupting data accessibility. To ensure a safe, sturdy operating environment for installed HDDs, it features a built-in 80mm ball bearing fan to enhance hard drive cooling, and offers a high quality aluminum body and attractive front panel design. An out-of-the box external RAID solution, the storage appliance includes a companion PCI Express SATA controller card (with port multiplier support), as well as an eSATA cable and the necessary power adapter.
Key Features
StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller. Number of storage drives supported: 4, Storage drive size: 3.5", Supported storage drive interfaces: Serial ATA, Maximum storage capacity: 2 TB. Data transfer rate: 3 Gbit/s. RAID levels: 0, 1, 5, 10. Product colour: Black, Silver
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller (SAT3540ER2) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 3.5in 4 Drive eSATA RAID External Hard Drive Enclosure w/ Controller compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the SAT3540ER2.
