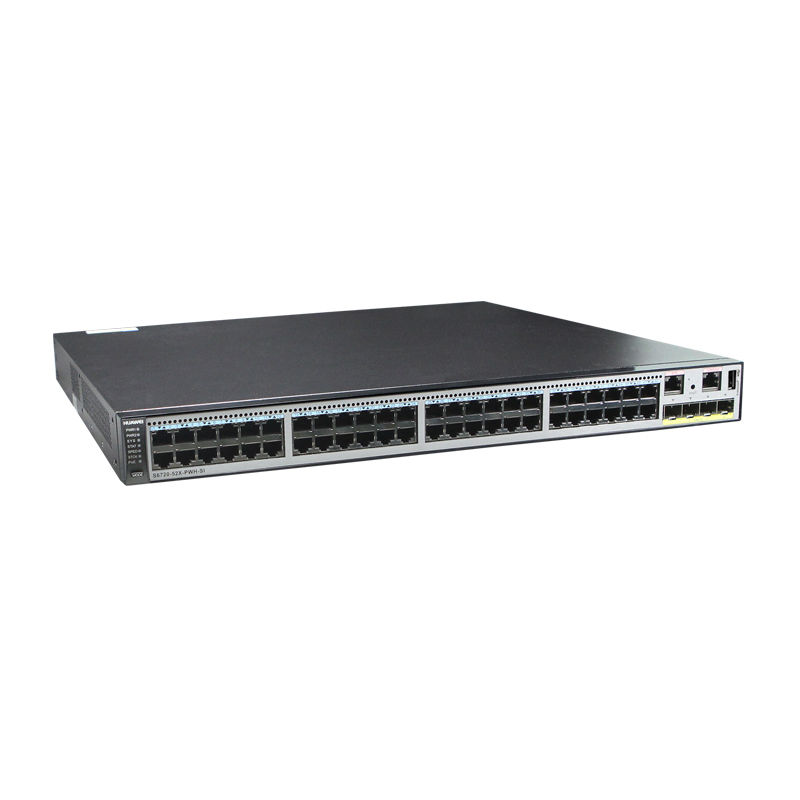

S6720-52X-PWH-SI, Huawei S6720 Switch, 48x100M/10G/PoE++/No PSU
SKU: S6720-52X-PWH-SI · MPN: S6720-52X-PWH-SI · Category: Components
$6,758.32
In Stock • 10 units
S6720-52X-PWH-SI(48 Ethernet 100M/1/2.5/5/10G ports,4 10 Gig SFP+,PoE++,without power module)
Specifications
| Height | 1 U |
|---|---|
| QoS/ACL | Traffic classification based on ACLs Traffic classification based on outer 802.1p fields, inner VLAN IDs, outer VLAN IDs, source MAC addresses, and Ethernet types Access control after traffic classification Traffic policing based on traffic classifiers Re-marking based on traffic classifiers Class-based packet queuing Associating traffic classifiers with traffic behaviors Rate limiting on inbound and outbound ports Traffic shaping based on ports and queues Tail drop Priority Queuing (PQ) Deficit Round Robin (DRR) PQ + DRR scheduling Weighted Round Robin (WRR) PQ + WRR scheduling |
| Multicast | IGMP V1/V2/V3 snooping Fast leave IGMP snooping proxy MLD snooping Port-based multicast traffic suppression Inter-VLAN multicast replication Controllable multicast IGMP v1/v2/v3 PIM-SM and PIM-DM Multicast Source Discovery Protocol (MSDP) Multicast routing policies |
| Fixed ports | 48x100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4x10GE SFP+ |
| Reliability | STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover Smart Ethernet Protection (SEP) G.8032 Ethernet Ring Protection Switching (ERPS) BFD for OSPF, IS-IS, VRRP, and PIM protocols Enhanced trunk (E-trunk) |
| IPv4 routing | Static routing, RIPv1, RIPv2, ECMP, URPF, OSPF, IS-IS, and BGP VRRP Policy-based routing Routing policies |
| IPv6 routing | Static routing RIPng OSPFv3 BGP4+ ISISv6 |
| IPv6 features | Neighbor Discovery (ND) and ND snooping IPv6 Ping VRRP6 DHCPv6 snooping, DHCPv6 server, and DHCPv6 relay MLDv1 and MLDv2 PIM-DM for IPv6 PIM-SM for IPv6 6 Over 4 tunnels |
| Input voltage | AC: • Rated voltage range: 100 V to 240 V AC, 50/60 Hz • Maximum voltage range: 90 V to 264 V AC, 47/63Hz DC: • Rated voltage range: – 48 V to – 60 V DC • Maximum voltage range: – 36 V to – 72 V DC |
| VLAN features | 4K VLANs Guest VLAN and voice VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping Super VLAN Basic QinQ and selective QinQ |
| Extended slots | Not supported |
| MAC address table | 32K MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| Security features | Defense against DoS, ARP, and ICMP attacks Binding of the IP address, MAC address, port number, and VLAN ID of a user Port isolation, port security, and sticky MAC MAC-Forced Forwarding (MACFF) Limit on the number of learned MAC addresses IEEE 802.1X authentication, MAC address authentication, Portal authentication, and hybrid authentication Authentication methods, including AAA, RADIUS, and HWTACACS CPU defense MACSec |
| Switching Capacity | 2.56 Tbit/s |
| Operating environment | Working temperature: 0 – 1800 m, 0 – 45 ° C; 1800 – 5000 m, the highest operating temperature reduces by 1 ° C every time the altitude increases by 220 m. Relative humidity: 5% – 95% (noncondensing) |
| Forwarding Performance | 480 Mpps |
| Typical power consumption | 159.5W |
| Dimensions (W x D x H, mm) | 442 x 507 x 44.4 |
| Management and maintenance | iStack (using service ports as stack ports) Virtual Cable Test (VCT) Ethernet OAM (IEEE 802.3ah and 802.1ag) SNMPv1/v2c/v3 RMON Web-based network management system and relevant features System logs and multi-level alarms GVRP MUX VLAN sFlow Hypertext Transfer Protocol Secure (HTTPS) SSH1.5/SSH2 |
| Super Virtual Fabric (SVF) | SVF Parent and Client |
| Maximum power consumption (W) | • 650W DC without PD: 207.36W • 1150W AC /1000W AC (without PD): 236.8W |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S6720-52X-PWH-SI, Huawei S6720 Switch, 48x100M/10G/PoE++/No PSU (S6720-52X-PWH-SI) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S6720-52X-PWH-SI, Huawei S6720 Switch, 48x100M/10G/PoE++/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S6720-52X-PWH-SI, Huawei S6720 Switch, 48x100M/10G/PoE++/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S6720-52X-PWH-SI.
