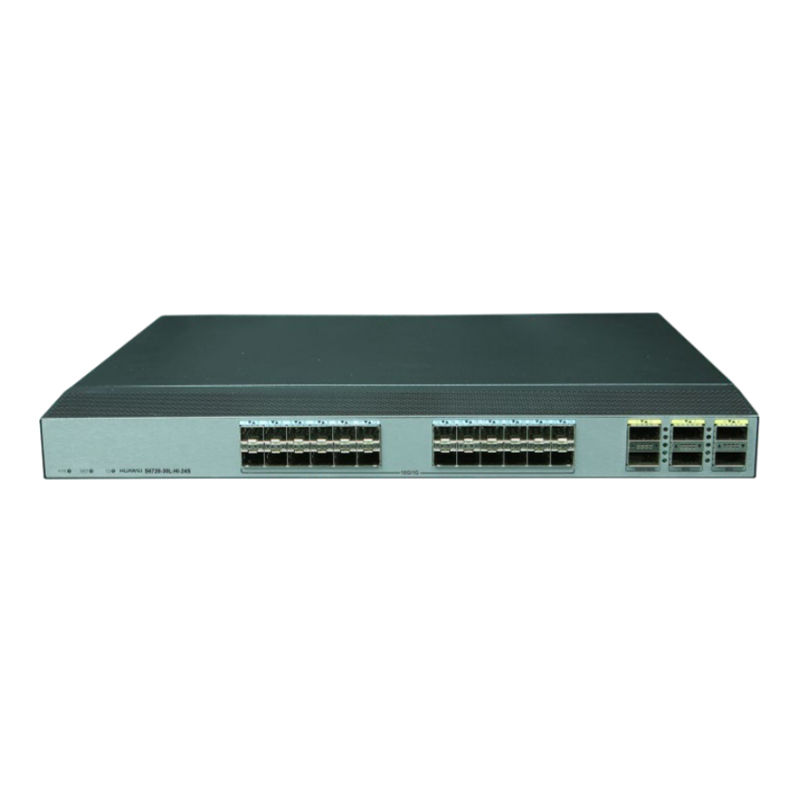

S6720-30L-HI-24S, Huawei S6720 Switch, 24x10GE SFP+/4x40GE QSFP+/2x100GE QSFP28
SKU: S6720-30L-HI-24S · MPN: S6720-30L-HI-24S · Category: Networking
$2,849.24
In Stock • 10 units
Huawei S6720-HI switch with 24 x 10 Gig SFP+, 4 x 40 Gig QSFP+,and 2 x 100 Gig QSFP28
Specifications
| SVF | Acting as the parent node to vertically virtualize downlink switches and APs as one device for management Two-layer client architecture ASs can be independently configured. Services not supported by templates can be configured on the parent node. Third-party devices allowed between SVF parent and clients |
|---|---|
| MPLS | MPLS L3VPN MPLS L2VPN (VPWS/VPLS) MPLS-TE MPLS QoS |
| iPCA | Marking service packets to obtain the packet loss ratio and number of lost packets in real time Measurement of the number of lost packets and packet loss ratio on networks and devices |
| VXLAN | VXLAN functions, VXLAN L2 and L3 gateways, BGP EVPN VXLAN configuration using NETCONF/YANG |
| Height | 1U |
| QoS/ACL | Rate limiting in the inbound and outbound directions of a port Packet redirection Port-based traffic policing and two-rate three-color CAR HQoS Eight queues on each port DRR, SP, and DRR+SP queue scheduling algorithms WRED Re-marking of the 802.1p and DSCP fields of packets Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP source/destination port number, protocol type, and VLAN ID Queue-based rate limiting and shaping on ports |
| Security | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, port number, and VLAN ID Port isolation, port security, and sticky MAC MAC Forced Forwarding (MFF) Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1X authentication and limit on the number of users on a port AAA authentication, RADIUS authentication, and HWTACACS authentication NAC SSH V2.0 HTTPS CPU protection Blacklist and whitelist Attack source tracing and punishment for IPv6 packets such as ND, DHCPv6, and MLD packets IPSec for management packet encryption |
| Multicast | IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics IGMP v1/v2/v3, PIM-SM, PIM-DM, and PIM-SSM MSDP Multicast VPN |
| IP Routing | Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy |
| Fixed Ports | 24 x 10 Gigabit SFP+, 4 x 40 Gigabit QSFP+, and 2 x 100 Gigabit QSFP28 |
| Reliability | LACP E-Trunk Ethernet OAM (IEEE 802.3ah and IEEE 802.1ag) ITU-Y.1731 DLDP LLDP BFD for BGP, BFD for IS-IS, BFD for OSPF, BFD for static routes |
| IPv6 features | Neighbor Discover (ND) PMTU IPv6 Ping, IPv6 Tracert, IPv6 Telnet ACLs based on source IPv6 addresses, destination IPv6 addresses, Layer 4 ports, or protocol types Multicast Listener Discovery snooping (MLDv1/v2) IPv6 addresses configured for sub-interfaces, VRRP6, DHCPv6, and L3VPN |
| Input voltage | AC: Rated AC voltage: 100V to 240V AC; 50/60 Hz Max. AC voltage: 90V to 264V AC; 47–63 Hz DC: Rated DC power: –48V to 60V DC Max. DC voltage: –38.4V to 72V DC |
| VLAN Features | 4,094 VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping |
| Extended Slots | Not supported |
| Heat dissipation | Heat dissipation with fan, intelligent fan speed adjustment |
| Interoperability | VLAN-Based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) |
| Wireless service | AP access control, AP domain management, and AP configuration template management Radio management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
| MAC Address Table | 64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses |
| Relative humidity | 5% to 95% (non-condensing) |
| Switching Capacity | 2.56 Tbit/s |
| Operating temperature | - 0–1800 m altitude: 0°C to 45°C - 1800–5000 m altitude: The operating temperature reduces by 1°C every time the altitude increases by 220 m. |
| Dimensions (W x D x H) | 442 mm x 420 mm x 43.6 mm |
| Ethernet loop protection | RRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing millisecond-level protection switchover SEP ERPS (G.8032) BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S6720-30L-HI-24S, Huawei S6720 Switch, 24x10GE SFP+/4x40GE QSFP+/2x100GE QSFP28 (S6720-30L-HI-24S) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S6720-30L-HI-24S, Huawei S6720 Switch, 24x10GE SFP+/4x40GE QSFP+/2x100GE QSFP28 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S6720-30L-HI-24S, Huawei S6720 Switch, 24x10GE SFP+/4x40GE QSFP+/2x100GE QSFP28 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S6720-30L-HI-24S.
