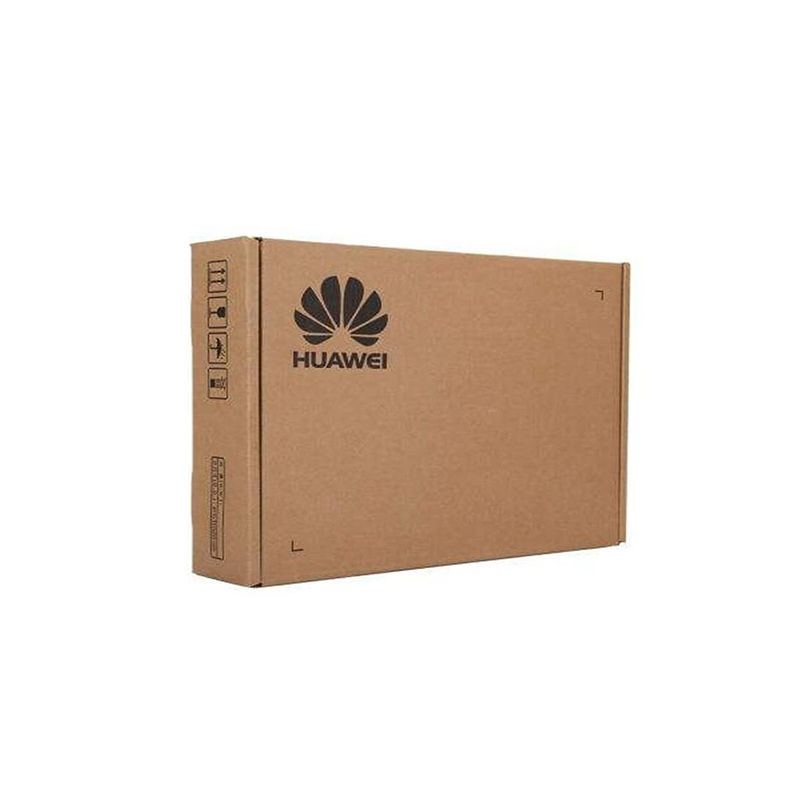

S5735S-S32ST4X-A, Huawei S5735-S Switch, 24xGE SFP/4x10G SFP+/1x60W AC PSU
SKU: S5735S-S32ST4X-A · MPN: S5735S-S32ST4X-A · Category: Components
Huawei S5735-S switch, 24 GE SFP Ports, 8 10/100/1000BASE-T, 4 10G SFP+, 1 60W AC Power Supply, Distribution model
Specifications
| PoE | Not supported |
|---|---|
| RPS | Not supported |
| RTC | Supported |
| Flash | 512 MB in total. To view the available flash memory size, run the display version command. |
| Stack ports | Any 10/100/1000BASE-T ports, 100/1000BASE-X ports, or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
| Availability | > 0.99999 |
| Memory (RAM) | 1 GB |
| Certification | EMC certification Safety certification Manufacturing certification |
| Relative humidity | 5% to 95%, noncondensing |
| Operating altitude | 0-5000 m (0-16404 ft.) |
| Rated voltage range | AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC DC input: -48 V DC to -60 V DC |
| Storage temperature | -40°C to +70°C (-40°F to +158°F) |
| Maximum voltage range | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz High-Voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC |
| Operating temperature | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
| Dimensions (H x W x D) | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.) |
| Mean time to repair (MTTR) | 1.75 hours |
| Power supply surge protection | Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode Using DC power modules: ±2 kV in differential mode, ±4 kV in common mode |
| Service port surge protection | Common mode: ±7 kV |
| Short-term operating temperature | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Mean time between failures (MTBF) | 68.59 years |
| Noise under normal temperature (27°C, sound power) | < 59.3 dB(A) |
| Maximum power consumption (100% throughput, full speed of fans) | 66 W |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5735S-S32ST4X-A, Huawei S5735-S Switch, 24xGE SFP/4x10G SFP+/1x60W AC PSU (S5735S-S32ST4X-A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5735S-S32ST4X-A, Huawei S5735-S Switch, 24xGE SFP/4x10G SFP+/1x60W AC PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5735S-S32ST4X-A, Huawei S5735-S Switch, 24xGE SFP/4x10G SFP+/1x60W AC PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5735S-S32ST4X-A.
