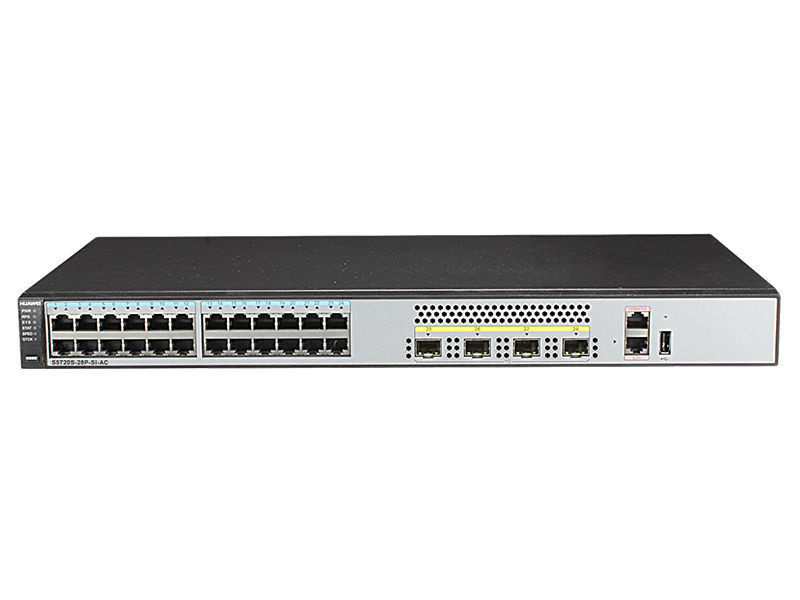

S5720S-28P-SI-AC, Huawei S5720S Switch, 24xGE RJ45/4xGE SFP/AC 110-220V

Brand: Huawei · SKU: S5720S-28P-SI-AC · MPN: S5720S-28P-SI-AC · Category: Networking

S5720S-28P-SI-AC, Huawei S5720S Switch, 24xGE RJ45/4xGE SFP/AC 110-220V
Request for Quote
In Stock • 10 units

Huawei S5720S-28P-SI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)

View Transceivers & Optics Products

Specifications

VLAN4K VLANs Guest VLAN and voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN Mapping
ModelS5720S-28P-SI-AC
Weight5.43 kg
QoS/ACLRate limiting on packets sent and received by an interface Packet redirection Port-based traffic policing and two-rate three-color CAR Eight queues on each port WRR, DRR, SP, WRR + SP, and DRR + SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address TCP/UDP port number, protocol type, and VLAN ID Rate limiting in each queue and traffic shaping on ports
SecurityUser privilege management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface, and VLAN Port isolation, port security, and sticky MAC Blackhole MAC address entries MAC Forced Forwarding (MFF) Limit on the number of learned MAC addresses 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS+ authentication, and NAC SSH v2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist 802.1x authentication, MAC address authentication, and combined authentication on a per port basis Portal authentication on a per VLANIF interface basis MACSec
MulticastPIM DM, PIM SM, PIM SSM IGMP v1/v2/v3 snooping and IGMP fast leave Multicast forwarding in a VLAN and multicast replication between VLANs Multicast load balancing among member ports of a trunk Controllable multicast Port-based multicast traffic statistics
IP RoutingStatic route, RIPv1, RIPv2, RIPng, ECMP, OSPF, OSPFv3, BGP, BGP4+, IS-IS, IS-ISv6, VRRP, and VRRP6
Fixed Ports24 x Ethernet 10/100/1,000 ports P series: 4 x Gig SFP X series: 4 x 10 Gig SFP+
Extended SlotN/A
IPv6 FeaturesNeighbor Discovery (ND) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type MLD v1/v2 snooping 6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Input VoltageAC: Rated voltage range: 100V to 240V, 50 Hz/60 Hz Maximum voltage range: 90V to 264V, 50 Hz/60 Hz
Ring ProtectionRRPP ring topology and RRPP multi-instance Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover SEP ERPS (G.8032) STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s) BPDU protection, root protection, and loop protection
InteroperabilitySupports VBST (Compatible with PVST/PVST+/RPVST) Supports LNP (Similar to DTP) Supports VCMP (Similar to VTP)
Surge ProtectionSurge protection capability of service ports: 6 kV
MAC Address TableIEEE 802.1d compliance 16K MAC address entries MAC address learning and aging Static, dynamic, and black hole MAC address entries Packet filtering based on source MAC addresses
Operating EnvironmentOperating temperature: Zero to 1,800m altitude: 0°C to 45°C 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every 220m increase in altitude Relative humidity: 5% to 95% (non-condensing)
Dimensions (W x D x H)442mm x 220mm x 43.6mm
Typical Power Consumption20.2W
Management and MaintenanceiStack Virtual cable test SNMP v1/v2c/v3 RMON Web-based NMS System logs and alarms of different levels sFlow
Super Virtual Fabric (SVF)Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurations Supports independent running client
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this S5720S-28P-SI-AC, Huawei S5720S Switch, 24xGE RJ45/4xGE SFP/AC 110-220V (S5720S-28P-SI-AC) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This S5720S-28P-SI-AC, Huawei S5720S Switch, 24xGE RJ45/4xGE SFP/AC 110-220V includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the S5720S-28P-SI-AC, Huawei S5720S Switch, 24xGE RJ45/4xGE SFP/AC 110-220V compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5720S-28P-SI-AC.
