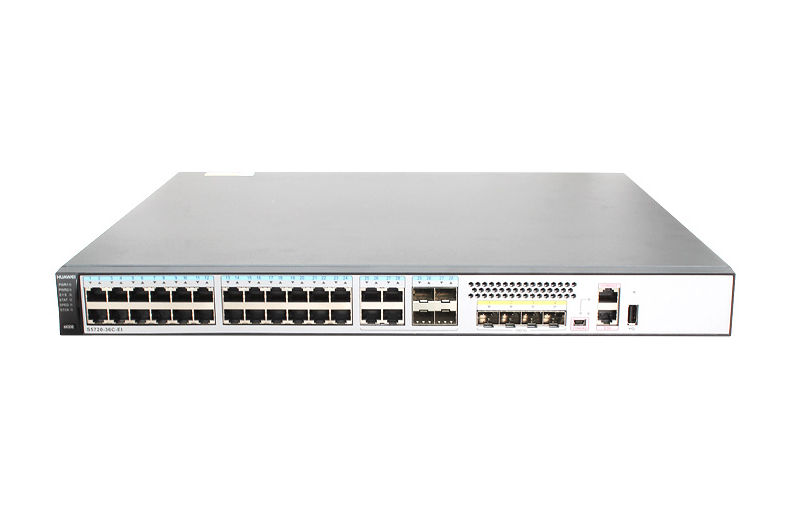

S5720-36C-PWR-EI-DC, Huawei S5720 Switch, 28xGE PoE+/4xGE SFP/4x10GE SFP+
Brand: Huawei · SKU: S5720-36C-PWR-EI-DC · MPN: S5720-36C-PWR-EI-DC · Category: Networking
S5720-36C-PWR-EI-DC (28 Ethernet 10/100/1000 PoE+ ports,4 of which are dual-purpose 10/100/1000 or SFP,4 10 Gig SFP,with 650W DC power)
Specifications
| VLAN | 4k |
|---|---|
| Model | S5720-36C-PWR-EI-DC |
| Security | Hierarchical user management and password protection AAA authentication DHCP relay, DHCP server, DHCP snooping, DHCP security, and SAVI Port isolation, port security, and sticky MAC NAC and user management based on user groups Limit on the number of learned MAC addresses CPU defense Blacklist and whitelist MACSec ready |
| IP Routing | Static route, RIPv1, RIPv2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy |
| Fixed Ports | 28 x 10/100/1,000 Base-T (4 GE Combo SFP), 4 x 10 Gig SFP+ |
| Jumbo Frame | 12K |
| Energy saving | 802.3az Energy Efficient Ethernet (EEE) supported |
| Extended Slot | One extended slot supporting a service subcard or stack card |
| Input Voltage | Rated voltage range: –48V to –60V Maximum voltage range: –36V to –72V |
| Interoperability | VLAN-based Spanning Tree (working with PVST/PVST+/RPVST) Link-type Negotiation Protocol (LNP), similar to the Dynamic Trunking Protocol (DTP) VLAN Central Management Protocol (VCMP), similar to the VLAN Trunk Protocol (VTP) |
| Surge Protection | Surge protection capability of service ports: 6 kV |
| Front Power Input | NA |
| MAC Address Table | 64k |
| Switching Capacity | 598 Gbit/s |
| DRAM and Flash Memory | SDRAM: 2GB Flash: 340MB |
| Operating Environment | Operating temperature: Zero to 1,800m altitude: 0°C to 45°C 1,800m to 5,000m altitude: Operating temperature reduces by 1°C for every altitude increase of 220m. Relative humidity: 5% to 95% (non-condensing) |
| Dimensions (W x D x H) | 442mm x 420mm x 44.4mm |
| Forwarding Performance | 132Mpps |
| Typical Power Consumption | without PD: 48.5W, with PD |
| Management and Maintenance | iStack Virtual cable test SNMPv1/v2c/v3 RMON/RMON2 Web-based network management system System logs and multi-level alarms sFlow LLDP/LLDP-MED Secure Copy Protocol (SCP), TFTP, FTP Store dual software images and configuration files 802.3az Energy Efficient Ethernet (EEE) |
| Super Virtual Fabric (SVF) | Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software and patching on the client One-click and automatic delivery of service configurations Independent running clients |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this S5720-36C-PWR-EI-DC, Huawei S5720 Switch, 28xGE PoE+/4xGE SFP/4x10GE SFP+ (S5720-36C-PWR-EI-DC) is 100% genuine Huawei hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This S5720-36C-PWR-EI-DC, Huawei S5720 Switch, 28xGE PoE+/4xGE SFP/4x10GE SFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the S5720-36C-PWR-EI-DC, Huawei S5720 Switch, 28xGE PoE+/4xGE SFP/4x10GE SFP+ compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the S5720-36C-PWR-EI-DC.
