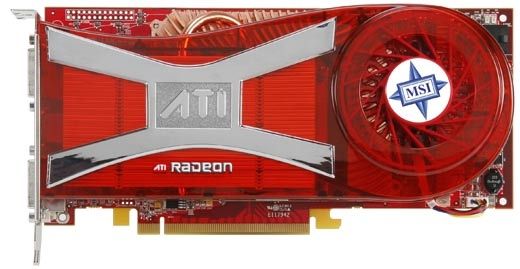

MSI Radeon X1950XTX - PCI-Ex16, 512MB, GDDR4

Specifications

Product Description

Shader Technology - Support for Microsoft® DirectX® 9.0 programmable vertex and pixel shaders in hardware. - Shader Model 3.0 vertex and pixel shader support: - Full speed 32-bit floating point processing. - High dynamic range rendering with floating point blending and anti-aliasing support. - High performance dynamic branching and flow control. - Complete feature set also supported in OpenGL® 2.0. Anti-Aliasing and Anisotropic Filtering - 2x/4x/6x Anti-Aliasing modes: - Sparse multi-sample algorithm with gamma correction, programmable sample patterns, and centroid sampling. - New adaptive anti-aliasing mode. - Temporal anti-aliasing. - Lossless color compression (up to 6:1) at all resolutions, up to and including wide screen HDTV. - 2x/4x/8x/16x Anisotropic Filtering modes: - Up to 128-tap texture filtering. - Adaptive algorithm with performance and quality options. - Improved rendering with higher subpixel precision and LOD computation levels. - New rotational high quality rendering mode. 3Dc+™ Advanced Texture Compression - High quality 4:1 compression for normal maps and luminance maps. - Works with any single-channel or two-channel data format. New Ring Bus Memory Controller - New Ring Bus Memory Controller - Programmable arbitration logic maximizes memory efficiency, software upgradeable. - New fully associative texture, color, and Z cache design. - Hierarchical Z-Buffer with Early Z Test. - Fast Z-Buffer Clear. - Z Cache optimized for real-time shadow rendering. - Optimized for performance at high display resolutions, up to and including widescreen HDTV. Avivo™ Video and Display Engine - New advanced video capabilities, including high fidelity gamma, color correction and scaling. - Dual independent display controllers that support true 30-bpp throughout the display pipe. - Full symmetry on both heads. - Each display controller supports display resolutions beyond 2560x1600. - Advanced DVI capabilities, including 10-bit, 16-bit HDR output. - YPrPb component output for direct drive of HDTV displays. - Seamless integration of pixel shaders with video in real time. - MPEG1/2/4 decode and encode acceleration. - DXVA support. - Hardware motion compensation, iDCT, DCT and color space conversion. - All-format DTV/HDTV decoding. - Adaptive per-pixel de-interlacing and frame rate conversion (temporal filtering). CrossFire™ Support - Multi-GPU technology ready. - Four modes of operation. - Alternate frame rendering for maximum performance. - Supertiling for optimal load-balancing. - Scissoring for compatibility. - Super AA for maximum image quality. HDCP - High-bandwidth Digital Content Protection HDCP is a content protection specification to protect digital entertainment content across the DVI/HDMI interface. The HDCP provides a robust, cost-effective and transparent method for transmitting and receiving digital entertainment similar to DVI/HDMI-compliant digital displays. HDCP encrypts the data transmitted between the DVI/HDMI connector on the graphics adapter and the display. To provide this support, both the graphics adapter and the display need to have an HDCP transmitter and receiver respectively.

Key Features

MSI Radeon X1950XTX - PCI-Ex16, 512MB, GDDR4. Processor frequency: 650 MHz. Graphics card memory type: GDDR4, Memory bus: 256 bit, Memory clock speed: 2000 MHz. Maximum resolution: 2048 x 1536 pixels. DirectX version: 9.0, OpenGL version: 2.0, Dual Link DVI
