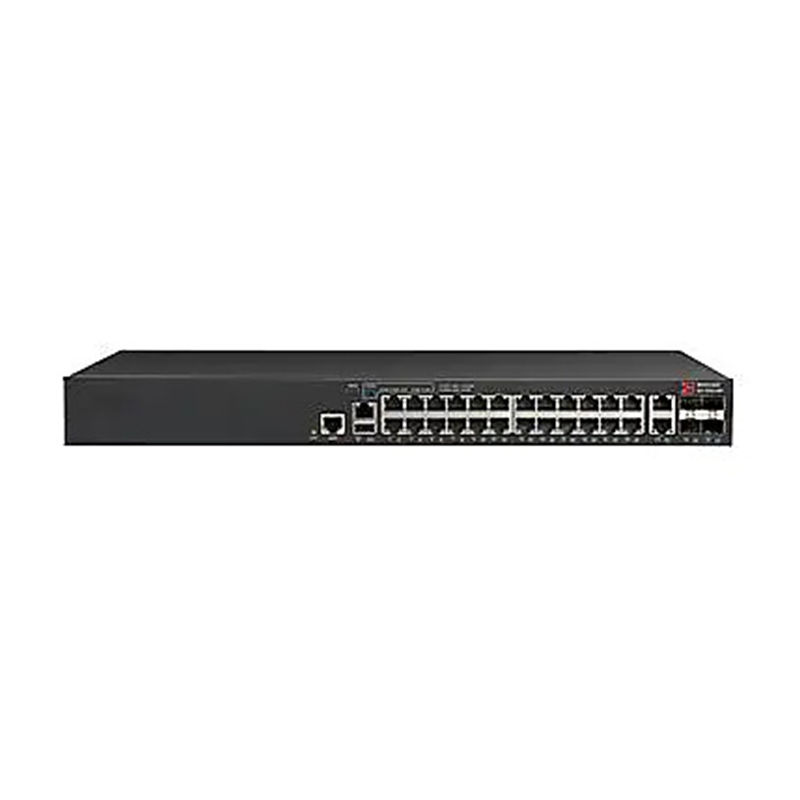

ICX7150-24P-4X10GR, Ruckus ICX7150 Switch, 24xPoE+ 10/100/1000, 4x10GbE SFP+, 370W PoE budget
SKU: RUK:ICX7150-24P-4X10GR · MPN: RUK:ICX7150-24P-4X10GR · Category: Networking
Ruckus ICX 7150 Switch, 2410/100/1000 Mbps PoE+ ports, 21G RJ45 uplink-ports, 410 GbE SFP+ stacking/uplink- ports, 370 W PoE budge
Specifications
| RAM | 1 GB |
|---|---|
| Depth | 11 in |
| Ports | 24 x 10/100/1000 (PoE+) + 2 x 10/100/1000 (uplink) + 2 x Gigabit SFP + 2 x 10 Gigabit SFP+ (uplink) |
| Width | 17.3 in |
| Height | 1.7 in |
| Subtype | Gigabit Ethernet |
| Capacity | Virtual interfaces (VLANs): 4095 ¦ Spanning Tree Protocol instances: 254 ¦ ARP entries: 2048 ¦ QoS hardware queues: 8 |
| Features | Flow control, DoS attack prevention, DiffServ support, Weighted Round Robin (WRR) queuing, IPv6 support, sFlow, Virtual Cable Test (VCT) technology, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Trusted Platform Module (TPM), IPv4 support, DHCP relay, Class of Service (CoS), Strict Priority (SP), tagged VLAN, 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, OpenFlow support, Network Timing Protocol (NTP) |
| Interfaces | 24 x 1000Base-T RJ-45 12 ports (PoE+) / 24 ports (PoE) ¦ 2 x 1000Base-T RJ-45 uplink ¦ 1 x management RJ-45 ¦ 1 x console RJ-45 ¦ 1 x USB-C management ¦ 2 x Gigabit LAN SFP+ upgradable to 10G ¦ 2 x 10Gbit LAN SFP+ uplink/stacking |
| PoE Budget | 370 W |
| Device Type | Switch - 24 ports - L3 - managed - stackable |
| Performance | Switching capacity: 132 Gbps ¦ Forwarding performance: 98 Mpps ¦ Stacking bandwidth: 320 Gbps |
| Flash Memory | 2 GB |
| Power Device | Internal power supply |
| Installed Qty | 1 (installed) / 1 (max) |
| Enclosure Type | Front and side to back rack-mountable 1U |
| Power Provided | 525 Watt |
| Routing Protocol | RIP-1, RIP-2, static IPv4 routing, static IPv6 routing, RIPng |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Service & Support | Limited warranty - lifetime |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, EN 61000-3-2, EN50081-1, EN55022, ICES-003, EN 61000-3-3, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, RoHS, EN 61000-6-3, EN 60825-2, IEC 60950-1 Second Edition, VCCI Class A, EN 60950-1:2006, AS/NZS 55022, IEC 60068-2-36 |
| Jumbo Frame Support | 9216 bytes |
| Encryption Algorithm | AES |
| Max Units In A Stack | 8 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ICX7150-24P-4X10GR, Ruckus ICX7150 Switch, 24xPoE+ 10/100/1000, 4x10GbE SFP+, 370W PoE budget (RUK:ICX7150-24P-4X10GR) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ICX7150-24P-4X10GR, Ruckus ICX7150 Switch, 24xPoE+ 10/100/1000, 4x10GbE SFP+, 370W PoE budget includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ICX7150-24P-4X10GR, Ruckus ICX7150 Switch, 24xPoE+ 10/100/1000, 4x10GbE SFP+, 370W PoE budget compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RUK:ICX7150-24P-4X10GR.
