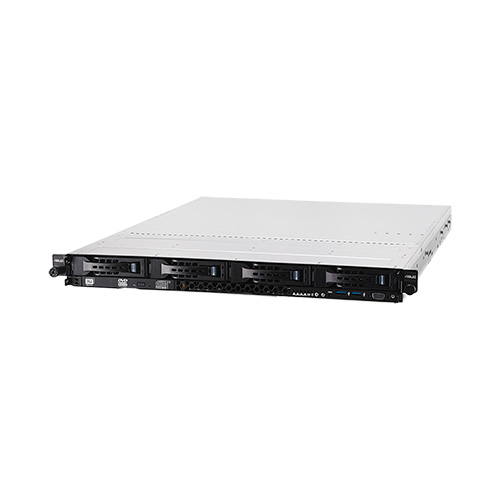

ASUS RS300-E8-RS4 Intel® C224 LGA 1150 (Socket H3) Rack (1U) Black, White
Brand: ASUS · SKU: RS300E8RS4 · MPN: RS300E8RS4 · Category: Components
ASUS RS300-E8-RS4, Intel® C224, LGA 1150 (Socket H3), Intel, Intel® Celeron®, Intel® Pentium®, E3-1200, DDR3-SDRAM
Specifications
| Depth | 444 mm |
|---|---|
| Width | 615 mm |
| Height | 43.4 mm |
| Weight | 16 kg |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (1U) |
| Power supply | 450 W |
| Product colour | Black, White |
| AC input voltage | 100 - 240 V |
| Processor family | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Hot-swap HDD bays | Yes |
| Intel Xeon series | E3-1200 |
| AC input frequency | 47 - 63 Hz |
| Optical drive type | DVD-RW |
| Motherboard chipset | Intel® C224 |
| PS/2 ports quantity | 1 |
| Maximum UDIMM memory | 32 GB |
| Number of DIMM slots | 4 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 2 |
| Maximum internal memory | 32 GB |
| Warranty | 3-Year Warranty |
| Weight | 16 kg |
| Dimensions | 615 mm x 444 mm x 43.4 mm |
Product Description
The latest Intel® CPUs The RS300-E8-RS4 is ready for new-generation Intel® Xeon® 22nm processors, which deliver a significant performance improvement over previous-generation processors in virtualization support, integrated security, scalability, and I/O performance. They assure frustration-free smooth operation. 2+1 expandability in UP 1U The RS300-E8-RS4 ships with 2+1 expansion slots in a 1U system for higher expandability and better data protection. It has one PCI Express 3.0 x16 slot and one PCI Express 3.0 x8 slot to accommodate the power of two dual full-height add-on cards. An extra slot is reserved for optional ASUS PIKE cards for cost effective upgrades to SAS storage and RAID protection. Better networking with new quad server-grade Intel® I210 Ethernet Four server-grade Intel® Ethernet ports with the I210 controller double queuing capacity compared to previous-generation Intel® Ethernet 82574L controllers, powering faster data transmission. In addition, quad LAN teaming ports provide high networking bandwidth with load balance and fault tolerance functions, which reduce data processing bottlenecks in virtualization environments by increasing virtualized traffic. Best-in-class power efficiency and stability With new ASUS Beat Thermal Choke technology, operating temperatures drop by as much as 5 degrees centigrade, helping ensure the lowest energy loss and up to 91% (VR) efficiency. The RS300-E8-RS4 is able to work stably under high ambient temperature environments of up to a sustained 40 degrees centigrade. It also includes 1+1 80 PLUS Gold power supplies to reduce power loss and power consumption, helping consumers save on total cost of ownership. Optimized user experience design A front VGA port provides greater convenience and flexibility, allowing customers to connect a monitor from the front. There is also an “asset tag” on every RS300-E8-RS4 for better identification within a server cluster. ASUS further furnishes several choices for OS drive placement, such as SSD and SATA DOM cages, plus internal Type A USB. Comprehensive remote management ASUS presents the most comprehensive and complete server remote management, including both out of band ASMB7-iKVM and in-band ASWM Enterprise. ASWM Enterprise features “one on many management”, saving time and effort. Its intuitive graphical user interface offers quick insight into current server status as well as detailed and easily-accessible asset management for each server.
Key Features
ASUS RS300-E8-RS4. Motherboard chipset: Intel® C224, Processor socket: LGA 1150 (Socket H3), Processor family: Intel. Supported memory types: DDR3-SDRAM, Supported DIMM module capacities: 2GB, 4GB, 8GB, Maximum internal memory: 32 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, Serial ATA III, RAID levels: 0, 1, 5, 10. Optical drive type: DVD-RW. Chassis type: Rack (1U), Product colour: Black, White
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS300-E8-RS4 Intel® C224 LGA 1150 (Socket H3) Rack (1U) Black, White (RS300E8RS4) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS300-E8-RS4 Intel® C224 LGA 1150 (Socket H3) Rack (1U) Black, White includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS300-E8-RS4 Intel® C224 LGA 1150 (Socket H3) Rack (1U) Black, White compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RS300E8RS4.
