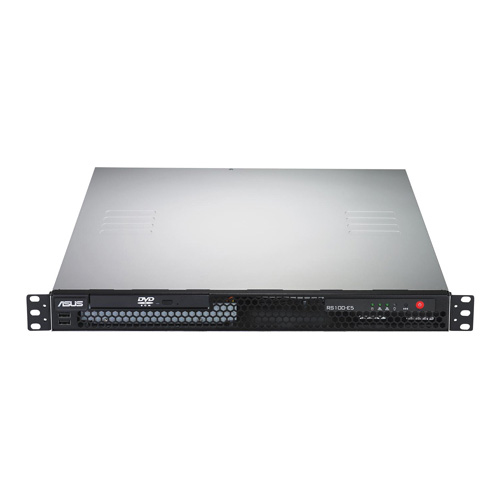

ASUS RS100-E5/PI2 server barebone Intel® 3200 LGA 775 (Socket T)
Brand: ASUS · SKU: RS100-E5/PI2 · MPN: RS100-E5/PI2 · Category: Servers
ASUS RS100-E5/PI2, Intel® 3200, LGA 775 (Socket T), Intel, 1.333 GHz, 8 GB, Intel ICH7R
Specifications
| ECC | Yes |
|---|---|
| Depth | 43.4 mm |
| Width | 430 mm |
| Height | 380 mm |
| Weight | 6.5 kg |
| Drive bays | 2 x SATA2 |
| RAID levels | 0, 1 |
| Ethernet LAN | Yes |
| Power supply | 220 W |
| LAN controller | Broadcom BCM5721 |
| Bundled software | ASWM2.0 |
| Processor family | Intel |
| Processor socket | LGA 775 (Socket T) |
| Storage controller | Intel ICH7R |
| Motherboard chipset | Intel® 3200 |
| PS/2 ports quantity | 2 |
| Number of DIMM slots | 4 |
| PCI Express x16 slots | 1 |
| Serial ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Maximum internal memory | 8 GB |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Warranty | 3-Year Warranty |
| Weight | 6.5 kg |
| Dimensions | 430 mm x 43.4 mm x 380 mm |
Product Description
RS100-E5/PI2 is ready for the next generation 45nm processor, Quad-Core Intel® Xeon® 3300/3200 series and Dual-Core Intel® Xeon® 3100/3000 series platform at FSB 1333/1066MHz. Being a super quiet and space-saving uni-processor (UP) Green server featuring with energy saving, It´s an ideal platform for home users, SMB, SOHO, IDC, TELCOM and client system requiring quiet working environment. Excellent FAN Control Technology - Provides excellent acoustic control (under 29dBA under Quad-Core mode), which is even lower than that of a projector (42dBA) - Facilitate customers with quiet working environment Best Energy Saving Platform - Optimal System power design enhances system power efficiency - Less than 50Watt of AC power consumption with simple Quad-Core configuration (idle mode) and Less than 170Watt power consumption under a full Quad-Core system stress loading Memory Support & Data Protection - Provide 4-DIMM slots to support up to 8GB DDR2 800/667 ECC memory to meet large and cost effective memory demand - Offer customers with RAID 0, 1 function for cost-effective data protection under Windows & Linux Dual GbE LAN Support Teaming & Failover - Dual PCI-E Gigabit Ethernet is capable of higher bandwidth aggregation and reliable networking based on failover and load balance functions - Provide One Slot for Modular IPMI 2.0 BMC Support - Optional ASUS ASMB3-SOL Card (Out-of-band monitor/troubleshooting) provides security and remote offline serviceability functions - Save MIS´s effort for maintenance and minimize system downtime
Key Features
ASUS RS100-E5/PI2. Motherboard chipset: Intel® 3200, Processor socket: LGA 775 (Socket T), Processor family: Intel. Maximum internal memory: 8 GB. Storage controller: Intel ICH7R, RAID levels: 0, 1. Maximum graphics card memory: 32 MB. Ethernet interface type: Gigabit Ethernet, LAN controller: Broadcom BCM5721
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS100-E5/PI2 server barebone Intel® 3200 LGA 775 (Socket T) (RS100-E5/PI2) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS100-E5/PI2 server barebone Intel® 3200 LGA 775 (Socket T) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS100-E5/PI2 server barebone Intel® 3200 LGA 775 (Socket T) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RS100-E5/PI2.
