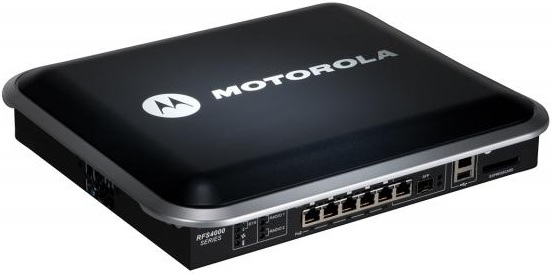

Motorola RFS 4000 gateway/controller
Brand: Zebra · SKU: RFS-4011-11110-WR · MPN: RFS-4011-11110-WR · Category: Components
Motorola RFS 4000, 2U, Rack mounting, Power, SNMP v1/v2/v3, HTTP, HTTPS, SSL, SNTP, SSH, 1,2,5.5,6,9,11,12,18,24,36,48,54,300 Mbit/s. Zebra Motorola RFS 4000 gateway/controller (part number RFS-4011-11110-WR) is an enterprise components product available from Server Tech Central. Key specifications include wi-fi Yes, weight 2.15 kg, input current 2.2 A, input voltage 100 - 240 V, mounting type Rack mounting, rack capacity 2U, led indicators Power, input frequency 50/60 Hz. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Wi-Fi | Yes |
|---|---|
| Weight | 2.15 kg |
| Input current | 2.2 A |
| Input voltage | 100 - 240 V |
| Mounting type | Rack mounting |
| Rack capacity | 2U |
| LED indicators | Power |
| Input frequency | 50/60 Hz |
| Cabling technology | 10/100/1000Base-T(X) |
| Data transfer rate | 1 Gbit/s |
| Dimensions (WxDxH) | 304.8 x 254 x 44.5 mm |
| Operating altitude | 0 - 3000 m |
| Security algorithms | WEP, WPA-TKIP, WPA2-TKIP |
| Management protocols | SNMP v1/v2/v3 |
| USB 2.0 ports quantity | 1 |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 6 |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 150 W |
| Supported network protocols | HTTP, HTTPS, SSL, SNTP, SSH |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating relative humidity (H-H) | 5 - 85% |
| WLAN data transfer rates supported | 1,2,5.5,6,9,11,12,18,24,36,48,54,300 Mbit/s |
| Warranty | 3-Year Warranty |
| Weight | 2.15 kg |
Product Description
The RFS 4000 802.11n Integrated Services Controller is designed to provide any branch office or remote facility with high performance, comprehensive, cost-effective and secure wireless and wired networking services. No matter what the networking needs are in your branch offices, the RFS 4000 delivers rich voice support including Voice over WLAN (VoWLAN) now, Fixed Mobile Convergence (FMC) and IP PBX in the future; rich video support including video conferencing and video surveillance; multiple locationing technologies such as Wi-Fi and RFID; plus support for multiple RF technologies, including future technologies such as Wi-MAX. The RFS4000 is the only product in its class that offers dual band access concurrent with Mesh services as well as gap free security with 24x7 Wireless Intrusion Protection System (IPS). A converged platform of features & functionality The RFS4000 is a fully integrated 802.11n wireless services controller, 802.11n access point, wired switch with 5 POE ports rolled into one, with IPSEC VPN/firewall/WIPS security, RADIUS & DHCP server, location & RFID engines, 3G failover, and more. Wi-NG Operating System: delivering a unified voice, data and RF management platform Improve business process flow with one platform for wireless voice, video, data and multiple RF technologies - such as RFID, Wi-Fi (including 802.11n) and future technologies such as Wi-MAX; rich enterprise class functionality includes seamless roaming across L2/L3 deployments, resilient failover capabilities, comprehensive security, toll-quality voice and other value-added services, such as multi-RF locationing. Wireless Intrusion Detection/Protection System The integrated IDS/IPS provides defense against over-the-air attacks by leveraging the sensing capabilities of AP300/ AP51x1/AP7131. Real Time Locationing System (RTLS) Provides rich locationing services to enable real-time enterprise asset-tracking through support for 802.11, RFID and third party locationing solutions - including industry leaders such as AeroScout, Ekahau, and Newbury Networks. Standards-based support for: EPC Global ALE interface for processing and filtering data from all active and passive tags; and EPC Global LLRP interface for passive RFID tag support. Role-based wired/wireless firewall Secures and protects the wired and wireless network against attacks and unauthorized access at Layer 2 and Layer 3 with stateful inspection; ability to create identity and location-based policies provides granular control of network access. 3G Wireless for WAN Backhaul Support for 3G wireless cards to backhaul WAN traffic when the primary WAN Link fails. Enhanced End-to-End Quality of Service (QoS) Enhances voice and video capabilities; prioritizes network traffic to minimize latency and provide optimal quality of experience; SIP Call Admission Control and Wi-Fi Multimedia Extensions (WMM-Power Save) with Admission Control enhances multimedia application support and improves battery life and capacity.
Key Features
Motorola RFS 4000. Rack capacity: 2U, Mounting type: Rack mounting, LED indicators: Power. Management protocols: SNMP v1/v2/v3, Supported network protocols: HTTP, HTTPS, SSL, SNTP, SSH. WLAN data transfer rates supported: 1,2,5.5,6,9,11,12,18,24,36,48,54,300 Mbit/s, Data transfer rate: 1 Gbit/s, Cabling technology: 10/100/1000Base-T(X). Security algorithms: WEP, WPA-TKIP, WPA2-TKIP. Power consumption (typical): 150 W, Input voltage: 100 - 240 V, Input frequency: 50/60 Hz
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Motorola RFS 4000 gateway/controller (RFS-4011-11110-WR) is 100% genuine Zebra hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Motorola RFS 4000 gateway/controller includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Motorola RFS 4000 gateway/controller compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RFS-4011-11110-WR.
