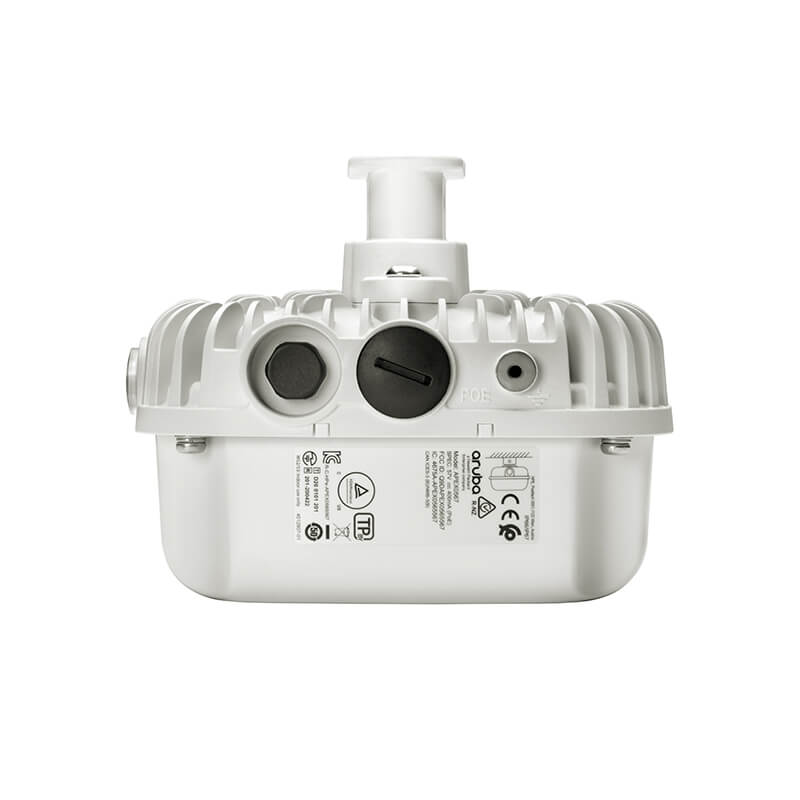

R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated

SKU: R4W43A · MPN: R4W43A · Category: Networking

R4W43A, Aruba 560 Series Outdoor Access Point, Weatherproof, Wi-Fi 6, Outdoor rated
$443.44
In Stock • 10 units

Weatherproof and temperature hardened, Aruba 560 Series Outdoor Access Points (APs), R4W43A deliver cost-effective Wi-Fi 6 wireless connectivity in outdoor and environmentally challenging locations.

View Wireless APs Products

Specifications

5GHzTwo spatial stream Single User (SU) MIMO for up to 1.2 Gbps wireless data rate with individual 2SS HE80 802.11ax client devices, or with two 1SS HE80 802.11ax MU-MIMO capable client devices simultaneously
2.4GHzTwo spatial stream Single User (SU) MIMO for up to 574 Mbps (287 Mbps) wireless data rate with individual 2SS HE40 (HE20) 802.11ax client devices or with two 1SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously
AP typeOutdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Dimensions16.5 cm (W) x 16.5 cm (D) x 11 cm (H) 6.5” (W) x 6.5” (D) x 4.3” (H)
Transmit powerConfigurable in increments of 0.5 dBm
Hardware VariantsBuilt-in Omni Directional Antennas 5 GHz Antennas 5.4 dBi 2.4 GHz Antennas 3.2 dBi BLE/802.15.4 Antennas 3.3d Bi
Available channelsDependent on configured regulatory domain
Operating humidity5% to 95% non-condensing internal
Operating temperature-40° C to +55° C (-40° F to +140° F) with full solar loading
Power over Ethernet (PoE+)802.3at-compliant
Supported modulation types802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Supported radio technologies802.11b: Direct-sequence spread-spectrum (DSSS) 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 16 resource units (RU)
802.11n high-throughput (HT) supportHT 20/40
802.11ax high efficiency (HE) supportHE20/40/80
Maximum (worst-case) power consumption15.6W
Storage and transportation temperature: -40° C to +70° C (-40° F to +158° F)
802.11ac very high throughput (VHT) supportVHT 20/40/80
Maximum (worst case) power consumption in idle mode4.2W
Maximum EIRP (limited by local regulatory requirements): 2.4 GHz band: 565: 29.2 dBm EIRP 567: 33 dBm EIRP 5 GHz band: 565: 31.4 dBm EIRP 567: 32.7 dBm EIRP
Maximum (worst case) power consumption in deep-sleep mode1.7W
Maximum (conducted) transmit power (limited by local regulatory requirements)2.4 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) 5 GHz band: +23 dBm per chain, +26 dBm aggregate (2x2) Note: conducted transmit power levels exclude antenna gain.
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
