Brand: Aruba (HPE) · SKU: R2H28A · MPN: R2H28A · Category: Networking

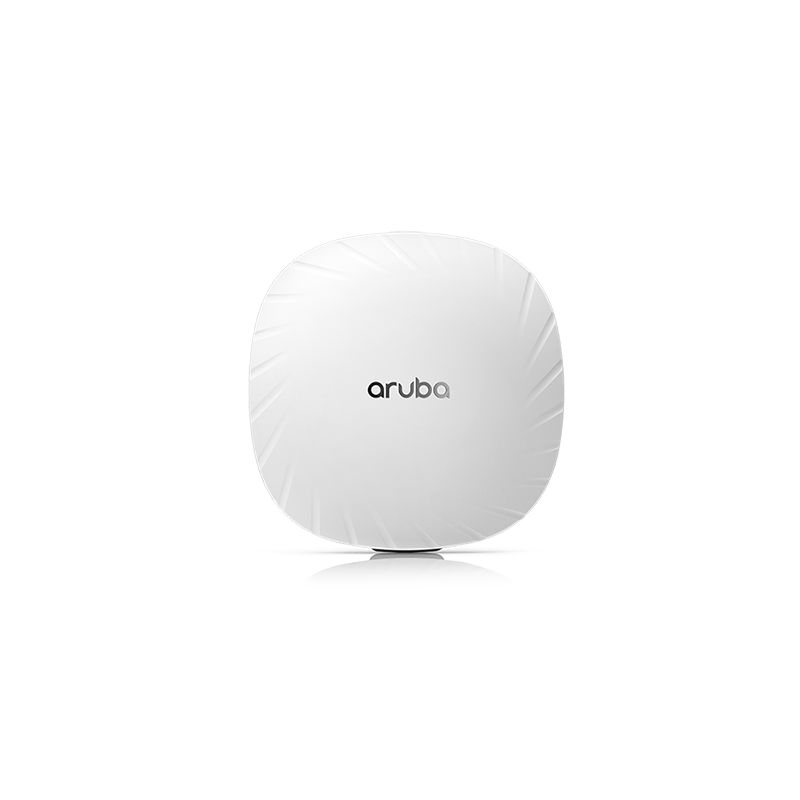

The HPE Aruba AP-505 is an AX1800 dual-radio, 2x2:2 802.11ax (Wi-Fi 6) indoor unified campus access point designed for low to medium density environments like mid-sized offices, schools, and retail spaces. It supports a maximum combined data rate of 1.774 Gbps, with up to 574Mbps on the 2.4GHz band and 1.2Gbps on the 5GHz band. It features OFDMA, bidirectional MU-MIMO, and Target Wait Time (TWT) for improved Wi-Fi 6 efficiency. The AP includes integrated dual-band downtilt omni-directional antennas, a built-in Bluetooth 5.0 and Zigbee (802.15.4) radio for IoT, a Trusted Platform Module (TPM), and an Ethernet port (10/100/1000BASE-T), a USB 2.0 port, and a serial console interface. It supports PoE (802.3af/at) power input. It can manage up to 256 associated clients per radio.
| IoT Radio | Bluetooth 5.0 and Zigbee (802.15.4) |
|---|---|
| PoE Support | 802.3af/at (Class 3 or 4) |
| Ethernet Port | 1x 10/100/1000BASE-T |
| Wi-Fi Standard | 802.11ax (Wi-Fi 6) |
| Radio Configuration | Dual Radio, 2x2:2 MIMO |
| Aggregate Throughput | 1.774 Gbps |
| Max Data Rate (5GHz) | 1.2 Gbps |
| Max Data Rate (2.4GHz) | 574 Mbps |
| Warranty | Not Available (Service contracts available separately, e.g., 1Y, 3Y, 5Y FC NBD Exch) |
| Weight | 500 g |
| Dimensions | 37 x 160 x 161 mm (H x W x D) |
The Aruba AP-505 is a cost-effective, high-performance Wi-Fi 6 (802.11ax) indoor access point suitable for medium-density enterprise environments. It supports 2x2 MU-MIMO and OFDMA, features integrated IoT radios (BLE/Zigbee), and is managed locally, via Aruba Central (cloud), or AirWave. It is available with different part numbers for various regions (e.g., RW for International, US for US model).
Yes, this HPE Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP (R2H28A) is 100% genuine Aruba (HPE) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This HPE Aruba AP-505 (RW) Dual Radio 2x2:2 802.11ax Internal Antennas Unified Campus AP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the R2H28A.
