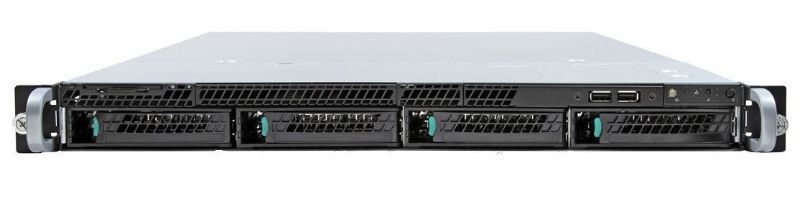

Intel Server System R1304SPOSHBNR Integrated Server Platform Barebone
Brand: Intel · SKU: R1304SPOSHBNR · MPN: R1304SPOSHBNR · Category: Servers
The Intel Server System R1304SPOSHBNR is a 1U rack-mountable server barebone system featuring the Intel C236 chipset. It is designed to support one Intel Xeon E3-1200 V5/V6 Series processor and up to 64GB of DDR4 ECC UDIMM memory across 4 DIMM slots. The system includes an Intel Server Board S1200SPOR and R1304 1U Chassis with a 12Gb SAS Backplane supporting 4x 3.5"/2.5" SATA/SAS hot-swap drive carriers, an M.2 SSD support slot, and a fixed 350W AC power supply. Included are a riser card assembly, system fans, standard control panel, and a front I/O panel with 1x VGA and 2x USB ports. RAID is supported via Software RAID RSTe (0,1,10,5) and ESRT2 (0,1,10) on 8 total SATA ports. It features 2x Gigabit Ethernet ports. This product is noted as discontinued.
Specifications
| Chipset | Intel C236 |
|---|---|
| LAN Ports | 2 x Gigabit Ethernet (i210) |
| Drive Bays | 4 x 3.5" Hot-swap (SATA/SAS) + 1 x M.2 SSD |
| Max Memory | 64 GB DDR4 ECC UDIMM |
| Form Factor | 1U Rackmount |
| Power Supply | 350W Fixed AC |
| Expansion Slots | 1 x PCIe Gen3 x8 (via Riser) |
| Processor Support | 1 x Intel Xeon E3-1200 V5/V6 Series (LGA1151) |
| Integrated Graphics | No (Uses shared/limited graphics) |
| Warranty | Limited 3 Year (as per one source) |
| Weight | 25.6 Lbs (Packaged Gross Weight) |
| Dimensions | 17.26"x23.84"x1.7" (WxDxH) (Chassis Dimensions) |
Key Features
The Intel Server System R1304SPOSHBNR is a 1U rack-mountable integrated server platform barebone based on the Intel S1200SPOR board and R1304 chassis. It supports Intel Xeon E3-1200 v5/v6 processors, up to 64GB DDR4 ECC memory, and features 4 hot-swap 3.5" drive bays with a 12Gb SAS backplane and a 350W power supply. It supports software RAID configurations. FAQs: What is the Intel R1304SPOSHBNR used for? It is used as a barebone server platform for building custom enterprise servers for virtualization, storage, and cloud applications. Does this server come fully configured? No, it is a barebone system, meaning CPU, RAM, and storage must be added separately based on requirements.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Intel Server System R1304SPOSHBNR Integrated Server Platform Barebone (R1304SPOSHBNR) is 100% genuine Intel hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Intel Server System R1304SPOSHBNR Integrated Server Platform Barebone includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Intel Server System R1304SPOSHBNR Integrated Server Platform Barebone compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the R1304SPOSHBNR.
