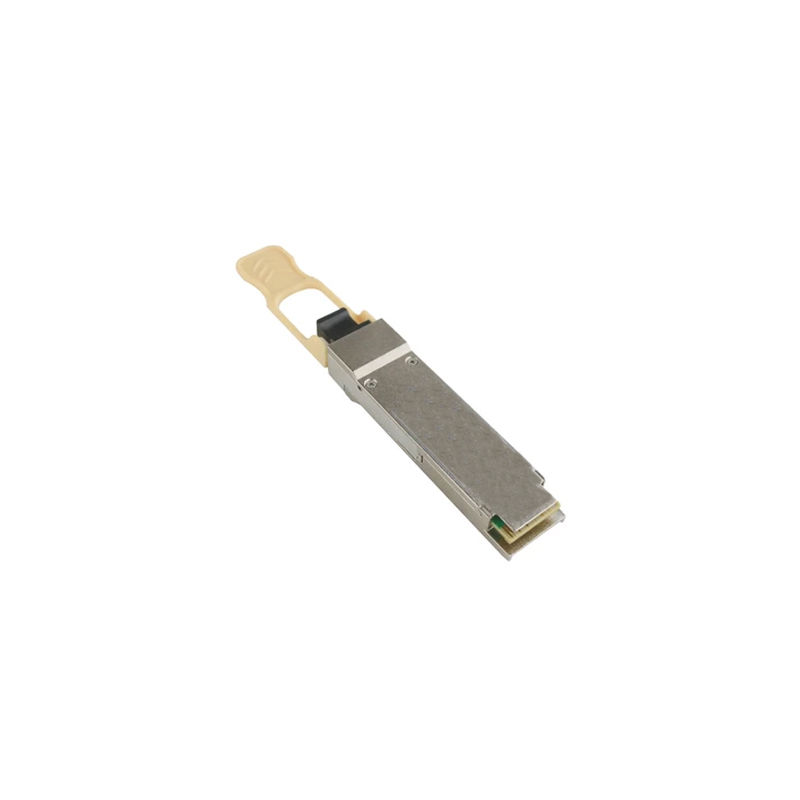

QSFP-40G-CSR-S=, Cisco 40GBASE-CSR QSFP Transceiver, 40Gbps/LC Connector/CSR Reach
Brand: Cisco · SKU: QSFP-40G-CSR-S= · MPN: QSFP-40G-CSR-S= · Category: Networking
40GBASE-CSR QSFP Transceiver Module with LC Connector
Specifications
| Type | 40GBASE-CSR, Duplex MMF |
|---|---|
| Model | QSFP-40G-CSR-S= |
| Safety | Cable jacket of QSFP copper modules is UL E116441 Compliant, SFP copper cables are ELV Compliant |
| Standards | GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba, IEEE 802.3ae, SFP+ MSA SFF-8436, SFP+ MSA SFF-8431 and -8461, RoHS 6 |
| Cable Type | MMF |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| Description | Cisco 40GBASE-CSR QSFP Module for Duplex MMF |
| Product Type | 40GBASE-CSR, Duplex MMF |
| Cable Distance | 300m, 400m |
| Pull Tab Color | Orange |
| Wavelength (nm) | 850 |
| Core Size (microns) | 50.0 |
| Receive Power (dBm) | Max: +3.0 per lane, Min: -9.0 per lane |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Transmit Power (dBm) | Max: +3.0 per lane, Min: -7.0 per lane |
| Power Consumption (W) | 3.5 |
| Commercial Temperature | 0 to 70°C (32 to 158°F) |
| Modal Bandwidth (MHz-km) | 2000 (OM3), 4700 (OM4) |
| Transmit and Receive Wavelength (nm) | Four lanes: 850, 880, 910, 940 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this QSFP-40G-CSR-S=, Cisco 40GBASE-CSR QSFP Transceiver, 40Gbps/LC Connector/CSR Reach (QSFP-40G-CSR-S=) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This QSFP-40G-CSR-S=, Cisco 40GBASE-CSR QSFP Transceiver, 40Gbps/LC Connector/CSR Reach includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the QSFP-40G-CSR-S=, Cisco 40GBASE-CSR QSFP Transceiver, 40Gbps/LC Connector/CSR Reach compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the QSFP-40G-CSR-S=.
