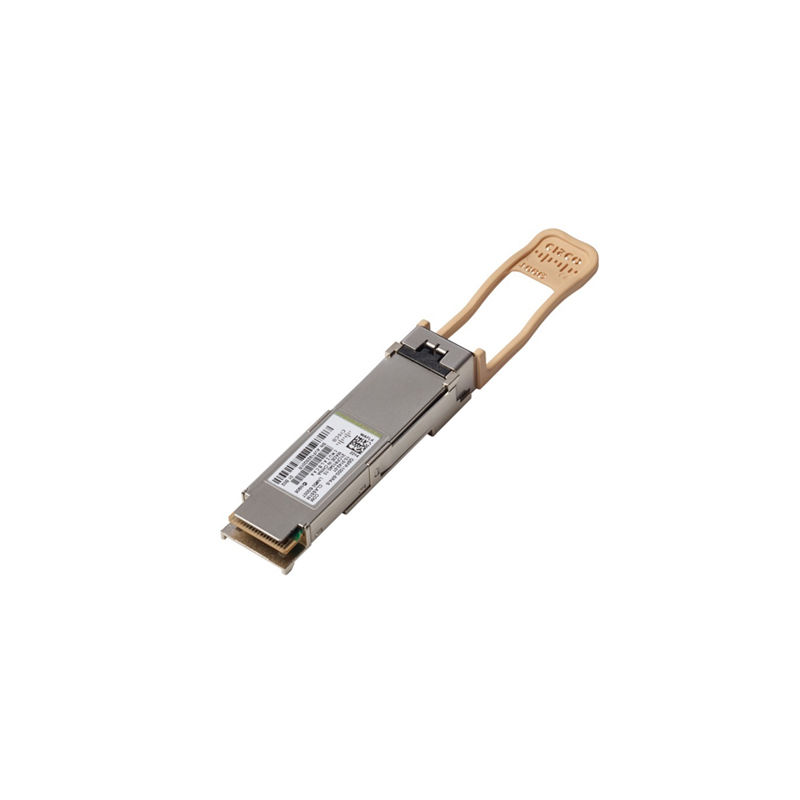

Cisco 100GBASE-SR4 QSFP Transceiver
Brand: Cisco (or compatible equivalent) · SKU: QSFP-100G-SR4-S= · MPN: QSFP-100G-SR4-S= · Category: Networking
The QSFP-100G-SR4-S= is a 100GBASE SR4 Quad Small Form-Factor Pluggable (QSFP28) optical transceiver module designed for high-density and low-power 100 Gigabit Ethernet connectivity. It supports 4 independent transmit and receive channels, each operating at 25 Gbps for an aggregate data rate of 100 Gbps. It uses MTP/MPO connectors over Multi-Mode Fiber (MMF). The module supports link lengths up to 70 meters over OM3 MMF and up to 100 meters over OM4 MMF, utilizing an 850nm nominal wavelength. It supports Digital Optical Monitoring (DOM) for real-time monitoring of operating parameters and is compliant with IEEE 802.3bm and CAUI-4 standards, as well as QSFP28 MSA. It is suitable for data centers, high-performance computing networks, and enterprise core/distribution layers. Some compatible versions also support breakout to 4x 25GBASE-SR SFP28.
Specifications
| Connector | MTP/MPO-12 |
|---|---|
| Data Rate | 100GBASE-SR4 (103.125 Gbps) |
| Media Type | Multi-Mode Fiber (MMF) |
| Wavelength | 850 nm |
| DOM Support | Yes |
| Form Factor | QSFP28 |
| Power Consumption | ≤1.8W or 3.5W (depending on source/version) |
| Operating Temperature | 0 to 70°C (Commercial) |
| Maximum Distance (OM3) | 70m |
| Maximum Distance (OM4) | 100m |
| Warranty | Limited lifetime warranty (for compatible versions) |
| Weight | 100 grams or less (typical for QSFP modules) |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
Key Features
The QSFP-100G-SR4-S= is a 100G QSFP28 transceiver supporting 100GBASE-SR4 over MMF, reaching up to 100 meters over OM4 fiber using an MPO connector. It features 4 parallel 25Gbps lanes and includes DOM functionality.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco 100GBASE-SR4 QSFP Transceiver (QSFP-100G-SR4-S=) is 100% genuine Cisco (or compatible equivalent) hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco 100GBASE-SR4 QSFP Transceiver includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco 100GBASE-SR4 QSFP Transceiver compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the QSFP-100G-SR4-S=.
