Brand: Supermicro · SKU: PWS-802A-1R · MPN: PWS-802A-1R · Category: Components

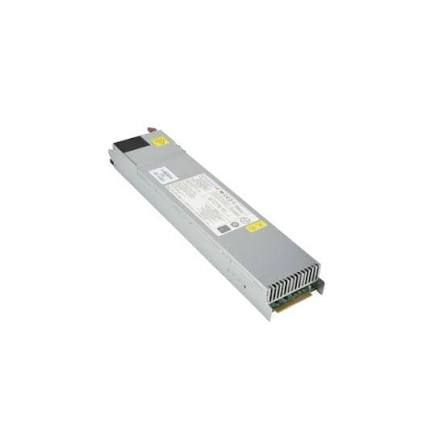

Designed for demanding server environments, the Supermicro PWS-802A-1R is an 80 Plus Titanium certified power supply offering exceptional efficiency (96%+ typical at 230Vac) and reliability. It supports hot-swappable N+1 redundancy, PMBus 1.2 for remote management, and features Active Power Factor Correction (PFC). The unit has a compact 1U form factor and provides a maximum output power of 800W, with a +12V output capable of 66A and a +5Vsb output of 4A. It supports a broad AC input range of 100-240Vac and is RoHS and REACH compliant. The output connector is a Gold Finger (19 pair connector).
| MTBF | >200,000 hours at 25 °C |
|---|---|
| Redundancy | Hot swappable, N+1 |
| Form Factor | 1U Rack-mountable |
| Output Connector | Gold Finger (19 pair connector) |
| Remote Management | PMBus 1.2 Compatible |
| Input Voltage Range | 100-240Vac / 200-240Vdc |
| Maximum Power Output | 800W |
| Output Current (+12V) | 66A |
| Output Current (+5Vsb) | 4A |
| Efficiency Certification | 80 Plus Titanium (96%+ typical) |
| Power Factor Correction (PFC) | Active (0.98 typical @ max load) |
| Warranty | 1 Year Limited Warranty (Varies by retailer) |
| Weight | 1.2 kg (approx) |
| Dimensions | 76 x 336 x 40 mm (W x L x H) |
The Supermicro PWS-802A-1R is an 800W, 1U redundant power supply built for high-efficiency server applications. It features 80 Plus Titanium certification for superior energy savings, PMBus 1.2 support for monitoring, and N+1 hot-swap capability for maximum uptime.
Yes, this Supermicro 800W 1U Redundant Power Supply (PWS-802A-1R) is 100% genuine Supermicro hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Supermicro 800W 1U Redundant Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWS-802A-1R.
