Brand: Supermicro · SKU: PWS-668-PQ · MPN: PWS-668-PQ · Category: Components

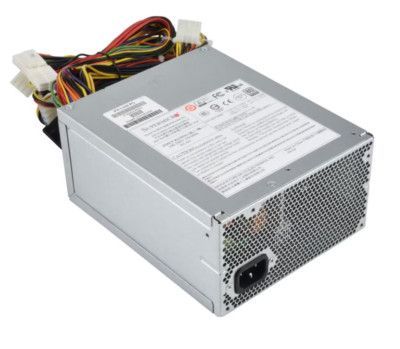

The Supermicro PWS-668-PQ is an 80 Plus Platinum level power supply capable of continuously supplying 668W output power at 92% efficiency. It features active power factor correction (PFC) and automatically corrects AC input for a full range of voltages. It includes a quiet fan and protective circuitry for over voltage, over current, and short circuiting. Designed for Workstation and Desktop applications. All materials comply with RoHS requirements and are certified by Supermicro. It is a PS2/ATX Multi-Output Power Supply, and compatible with chassis like SC733/TQ-668B.
| MTBF | >200,000 hours at 35 °C |
|---|---|
| Form Factor | PS2/ATX |
| Hold Up Time | 17ms at 75% of max Loading (PWOK); 18ms at 75% of max loading (Vout) |
| Output Power | 668W |
| Input Current | 8A max |
| Input Voltage | 100 - 240 V AC |
| Main Connector | 24-Pin ATX |
| Protection Features | OCP, OVP, Short Circuit, Over Temperature, Input Under Voltage |
| Output Current (+5V) | 20A max |
| Input Frequency Range | 50/60 Hz |
| Operating Temperature | 0 to 50 °C |
| Output Current (+12V) | 54A max |
| Regulatory Compliance | UL60950-1/CSA 60950-1, EN60950-1, IEC60950-1, CB Report, CE Low Voltage Directive, BSMI, CCC, FCC/CISPR Class B |
| Output Current (+3.3V) | 15A max |
| Power Factor Correction | Active |
| Efficiency Certification | 80 Plus Platinum (92%+ efficiency) |
| Warranty | 1 year (as per one retailer listing) |
| Dimensions | 5.91" x 3.39" x 7.28" (150 x 185 x 86 mm) |
This Supermicro 668W power supply achieves 80 Plus Platinum efficiency (92%+) and features Active PFC. It is designed for robust and reliable power delivery in workstation and desktop environments, incorporating multiple protection mechanisms against common power anomalies.
Yes, this Supermicro PWS-668-PQ PS2 668W Multi-Output 80 Plus Platinum Power Supply (PWS-668-PQ) is 100% genuine Supermicro hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Supermicro PWS-668-PQ PS2 668W Multi-Output 80 Plus Platinum Power Supply includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWS-668-PQ.
