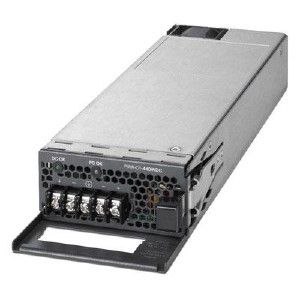

PWR-C1-440WDC/2, Cisco PWR-C1 Series Power Supply, 440W DC/Config 1/Secondary
Brand: Cisco · SKU: PWR-C1-440WDC/2 · MPN: PWR-C1-440WDC/2 · Category: Components
440W DC Config 1 secondary Power Supply
Specifications
| MTBF | Calculated MTBF >300,000 hr (Telcordia SR-332, Method 1, Case 3); demonstrated MTBF 500,000 hr (90% confidence level) |
|---|---|
| Model | PWR-C1-440WDC/2 |
| Weight | kg |
| Altitude | Up to 10,000 ft (3000 m), up to 45 °C |
| Input current | <8 A at -72 VDC; <16 A at -36 VDC |
| LED indicators | "AC OK": input power to the power supply is OK; "PS OK": output power from the power supply is OK |
| Output ratings | -56 V at 7.86 A |
| Total output BTU | 1517 BTU/hr (1000 BTU/hr = 293 W), 440 W |
| Power cord rating | 20 A at 100 VDC |
| Safety compliance | UL 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1; IEC 60950-1; CCC; CE Marking |
| Output holdup time | >2 ms at -48 VDC |
| Input voltage range | -36 VDC to -72 VDC |
| Storage temperature | -40 to 158 °F (-40 to 70 °C) |
| Operating temperature | 23 to 113 °F (-5 to 45 °C) |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class A; ICES-003 Class A; EN 55022 Class A; CISPR 22 Class A; AS/NZS 3548 Class A; BSMI Class A (AC input models only); VCCI Class A; EN 55024; EN 300386; EN 50082-1; EN 61000-3-2; EN 61000-3-3; EN 61000-4-2; EN 61000-4-3; EN 61000-4-4; EN 61000-4-5; EN 61000-4-6; EN 61000-6-1 |
| Power supply rated maximum | 440 W |
| Power-supply input receptacles | Terminal strip |
| Physical dimensions (H x W x D) | 1.58 x 3.25 x 12.20 in |
| Relative humidity (operating and nonoperating) | 5% to 90% noncondensing |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this PWR-C1-440WDC/2, Cisco PWR-C1 Series Power Supply, 440W DC/Config 1/Secondary (PWR-C1-440WDC/2) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This PWR-C1-440WDC/2, Cisco PWR-C1 Series Power Supply, 440W DC/Config 1/Secondary includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the PWR-C1-440WDC/2, Cisco PWR-C1 Series Power Supply, 440W DC/Config 1/Secondary compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PWR-C1-440WDC/2.
