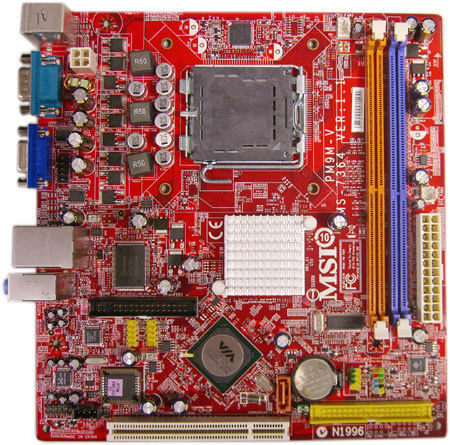

MSI PM9M-V motherboard VIA P4M900 LGA 775 (Socket T) micro ATX
Brand: MSI · SKU: PM9M-V · MPN: PM9M-V · Category: Components
MSI PM9M-V, VIA Technologies, LGA 775 (Socket T), Intel® Celeron®, Intel® Celeron® D, Intel® Pentium® 4, Intel® Pentium® D, 2 GB, VIA P4M900, 128 MB. MSI PM9M-V motherboard VIA P4M900 LGA 775 (Socket T) micro ATX (part number PM9M-V) is an enterprise components product available from Server Tech Central. Key specifications include depth 211 mm, width 200 mm, audio chip Realtek ALC888, microphone in Yes, lan controller Realtek RTL8201CL, cd/aux audio in Yes, controller type VIA P4M900, processor socket LGA 775 (Socket T). Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 211 mm |
|---|---|
| Width | 200 mm |
| Audio chip | Realtek ALC888 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8201CL |
| CD/AUX audio in | Yes |
| Controller type | VIA P4M900 |
| Processor socket | LGA 775 (Socket T) |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Graphics controller | VGA |
| Motherboard chipset | VIA P4M900 |
| Networking features | 10/100 Fast Ethernet |
| Power fan connector | Yes |
| Audio output channels | 5.1 channels |
| Number of memory slots | 2 |
| Processor manufacturer | VIA Technologies |
| Maximum internal memory | 2 GB |
| Motherboard form factor | micro ATX |
| Number of COM connectors | 1 |
| Number of SATA connectors | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Chassis intrusion connector | Yes |
| Compatible processor series | Intel® Celeron®, Intel® Celeron® D, Intel® Pentium® 4, Intel® Pentium® D |
| Warranty | 3-Year Warranty |
| Dimensions | 200 mm x 211 mm |
Product Description
CPU - Supports Socket 775 for Intel P4 3xx/ 5xx/ 6xx/ Pentium D, Celeron D, Core 2 Duo processors. - Supports FSB 1066/800/533MHz. - Supports 3/4 pin CPU Fan Pin-Header with Fan Speed Control. - Supports EIST Technology. - Supports Hyper-Threading (HT) Technology. Chipset VIA P4M900 Chipset - Supports P4 processor FSB 1066/800/533MHz VIA VT8237A Chipset - Ultra DMA 33/66/100/133 master mode. - ACPI & PC2001 compliant enhanced power management. - Supports USB 2.0 up to 6 ports. Main Memory - DIMM1 supports unbuffered 240-pin DIMM of 1.8 Volt DDR2 400/533/667 SDRAM. (2GB Max) - DIMM2 supports unbuffered 184-pin DIMM of 2.5 Volt DDR 266/333/400 SDRAM. (1GB Max) Slots - One PCI 2.2 32-bit PCI bus slot (support 3.3V/5V PCI bus interface). On-Board IDE - An IDE controller on the VT8237A chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66/33 operation modes. - Can connect up to two IDE devices. Serial ATA controller integrated in VT8237A. - Up to 150MB/sec transfer rate. - Can connect up to 1 Serial ATA drive. Audio - Chip integrated by Realtek ALC888. - Flexible 6-channel audio with jack sensing. - Compliant with Azalia 1.0 spec. LAN - Supports 10/100 Fast Ethernet by Realtek RTL8201CL.
Key Features
MSI PM9M-V. Processor manufacturer: VIA Technologies, Processor socket: LGA 775 (Socket T), Compatible processor series: Intel® Celeron®, Intel® Celeron® D, Intel® Pentium® 4, Intel® Pentium® D. Maximum internal memory: 2 GB, Controller type: VIA P4M900. Maximum graphics card memory: 128 MB. LAN controller: Realtek RTL8201CL, Networking features: 10/100 Fast Ethernet. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M900, Audio output channels: 5.1 channels
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI PM9M-V motherboard VIA P4M900 LGA 775 (Socket T) micro ATX (PM9M-V) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI PM9M-V motherboard VIA P4M900 LGA 775 (Socket T) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI PM9M-V motherboard VIA P4M900 LGA 775 (Socket T) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PM9M-V.
