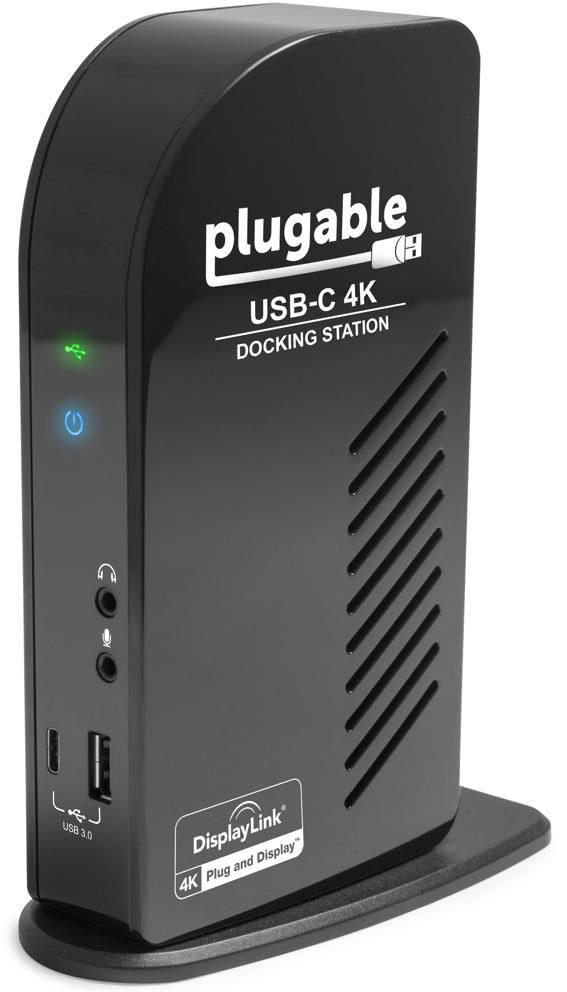

Plugable Technologies UD-ULTC4K laptop dock/port replicator Docking USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black

Specifications

Product Description

Instantly turn your laptop, 2-in-1, or Windows tablet into a multi-monitor desktop—by connecting a single cable—with the Plugable 4K Triple Display USB-C Docking Station (UD-ULTC4K) Plugable is an industry leader in Docking Station products, and this dock is no exception. Utilizing innovations introduced with USB 3.1, this dock is one of the first to use "Alternate Mode" from the USB-C specifications for one of the display outputs. This dock is also one of the first to support USB Power Delivery, enabling the dock to charge a laptop, 2-in-1, or Windows tablet connected to it (up to 60W). Note: New and innovative products aren't without compatibility concerns, it is important to read the information below for details regarding display output types and system requirements. USB-C is required for this docking station, it will not work properly when adapted to USB 3.0. When attached to a fully compatible USB-C or Thunderbolt 3 Windows or Mac system, the UD-ULTC4K supports Windows 10, 8.x, and 7 and macOS 10.14+. Chrome OS, Linux, and some older macOS versions are not supported. Charge - Up to 60W of USB Power Delivery If your device supports USB Power Delivery (USB PD), this docking station supports up to 60 watts (60W) of charging to your host device. This means you won't need to take out the charger that came with your laptop when you're at your desk, on supported hosts. The one USB-C cable from the dock is all you'll need to stay charged and connect all your devices. Some laptops may require more power than this dock provides (60W). The Dell XPS 15 9550/9560 and Precision 5510/7510, for example, will display a warning during boot if connected to a 60W power adapter, rather than a Dell 130W power adapter. These systems may still charge, but at a slower rate. Display - 1x HDMI 1.4 - 2x Dual-Mode DisplayPort 1.2 (DP++) With one USB-C (USB Type-C) cable connected to the dock, overcome the limited number of display outputs and ports on your device. This dock connects up to three 4K displays on supported devices. For USB-C ports that do not support Alternate Mode video output will be limited to displaying through the DisplayPort 1.2 ports. Note: HDMI and DisplayPort require different connections and cables. DisplayPort can be adapted to HDMI with separately-purchased HDMI adapters. Connect - 4x USB-A 3.0 Ports - 1x USB-C Port - 1x Gigabit Ethernet - 1x 3.5mm Headphone Jack - 1x 3.5mm Microphone Jack Many laptops are removing or drastically reducing the number of ports available. Get back your USB, audio, and network connections, or just make it easier to leave things plugged in at your main work area, and reconnect them, with one cable from the dock. Hardware Compatibility Notes USB-C is a new standard with much versatility. As a result, compatibility information is complex. Some USB-C systems support Alt Mode video output, while others do not. Some can be powered and charged through USB PD, while others do not. It is very important to check the compatibility of your device before purchase. In the "Technical Specification" section of this Amazon product page is a "Specification Sheet" PDF that contains detailed compatibility notes for a variety of laptops, tablets, 2-in-1s, motherboards, and mobile devices that is updated regularly. DisplayPort Adapters Conversion to HDMI, single link DVI, and VGA is possible using the following adapters (not included with dock) - DisplayPort to HDMI 2.0: Plugable DP-HDMI Active Adapter (maximum resolution of 4K 60Hz) - DisplayPort to HDMI 1.4: Plugable DPM-HDMIF Passive Adapter (maximum resolution of 4K 30Hz) - DisplayPort to DVI: Plugable DPM-DVIF Passive Adapter - DisplayPort to VGA: Plugable DPM-VGAF Passive Adapter Port Features, Limitations, Notes, and Terminology Alternate Mode (Alt Mode) is a new feature introduced with USB 3.1, allowing USB cables to carry video signals directly from a device over a USB cable. Alt Mode video comes directly from the graphics card or integrated graphics processor on a device, meaning outputs from an Alt Mode video port have the full graphics acceleration of your system. HDMI 1.4 allows for a maximum output resolution of 4K 30Hz (3840x2160 @ 30Hz). Lower resolutions such as 1920x1200, and 1920x1080 (1080p) are supported at 60Hz. The HDMI 1.4 connection on this dock is provided by converting DisplayPort Alt Mode to HDMI 1.4. DisplayPort 1.2 allows for a maximum output resolution of 4K 60Hz (3840x2160 @ 60Hz). These ports are Dual-Mode (DP++), allowing the use of simpler and less expensive adapters to convert the DisplayPort outputs to other display types, like HDMI and DVI. However, as a limitation of DisplayLink technology used to provide these video ports, multi-stream transport (MST) is not supported and conversion to dual link DVI is not supported. DisplayLink is a technology that allows compressed data of various types to be sent over USB data connections. The DisplayLink DL-6950 chipset in this docking station connects all the data and v

Key Features

Plugable Technologies UD-ULTC4K. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T. Product colour: Black, HD type: 4K Ultra HD, Maximum digital resolution: 3840 x 2160 pixels. AC input voltage: 20 V, Input current: 5 A, Power supply: 100 W. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
