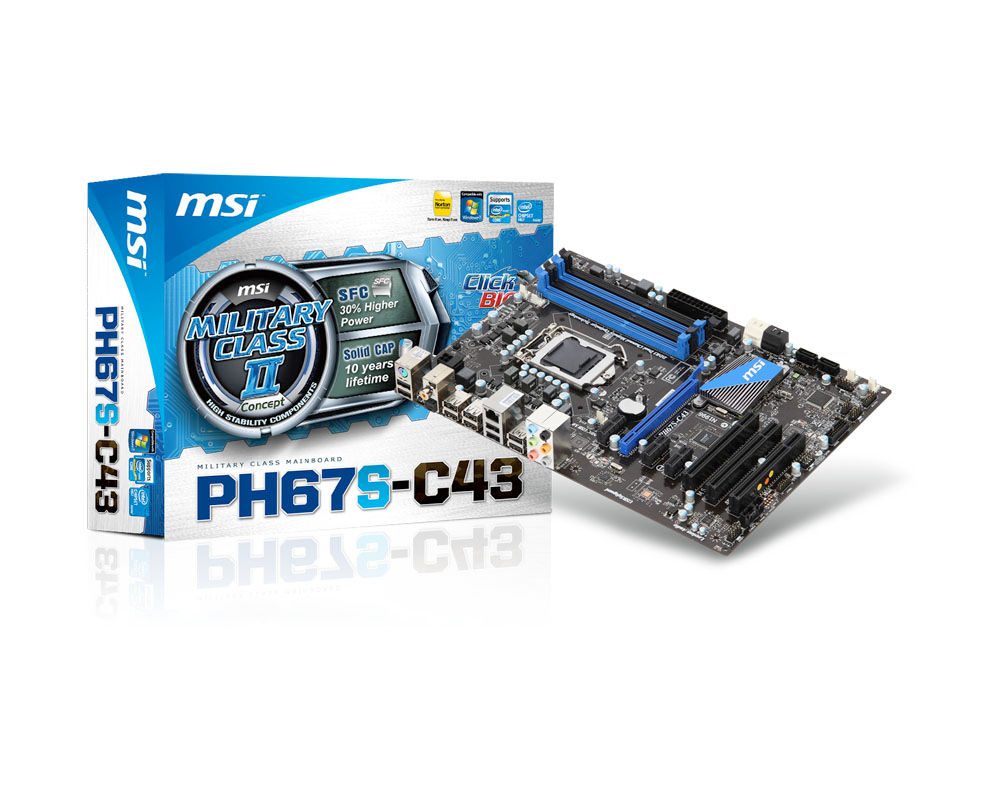

MSI PH67S-C43 (B3) motherboard Intel® H67 LGA 1155 (Socket H2) ATX
Brand: MSI · SKU: PH67S-C43 (B3) · MPN: PH67S-C43 (B3) · Category: Components
MSI PH67S-C43 (B3), Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 32 GB, 1.5 V. MSI PH67S-C43 (B3) motherboard Intel® H67 LGA 1155 (Socket H2) ATX (part number PH67S-C43 (B3)) is an enterprise components product available from Server Tech Central. Key specifications include depth 305 mm, width 215 mm, audio chip Realtek ALC892, component for PC, tpm connector Yes, lan controller Realtek RTL8111E, memory voltage 1.5 V, s/pdif in port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 305 mm |
|---|---|
| Width | 215 mm |
| Audio chip | Realtek ALC892 |
| Component for | PC |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111E |
| Memory voltage | 1.5 V |
| S/PDIF in port | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Clear CMOS button | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Motherboard chipset | Intel® H67 |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 1 |
| PCI Express x1 slots | 3 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 215 mm x 305 mm |
Product Description
B3 Stepping Ready To fix Intel’s 6 Series chipset design error, the SATA problems in its 6 Series chipset, MSI implements the latest Intel B3 Stepping 6 Series chipset on its Z68/P67/H67 mainboards for fixing SATA problems in the Intel Series 6 chipsets. Consumers can now identify the latest MSI Z68/P67/H67 mainboards equipped with the Intel B3 Stepping chipset with the MSI B3 Stepping Ready logo. This provides a more confident way to identify your next-generation P67/H67 mainboard. THX TruStudio PRO THX is a trade mark of a high-end audio/visual reproduction standard for movies, home theaters, computer speakers and other audio devices. THX Certified Audio products are designed to let users experience movies & videos as live show. The true sound effect can make high definition video more powerful. Features - A high-fidelity sound reproduction standard - Accurately reproduce the fullest audio experience of movie, music and game soundtracks SATA 6Gb/s SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your mainboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It’s also the current trend for upcoming high-speed internal storage devices to to break the existing bottleneck of a PC’s performance. Features - 2X Faster Than SATA 3Gb/s - Up to 6Gb/s Data Transfer Bandwidth - Unleash True Performance of New HDDs/SSDs M-Flash Compared to common mainboard which need extra BIOS chips, MSI’s M-Flash has a double advantage which doesn’t need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover it can also be seen as a portable BIOS chip which is actually able to boot up your PC. Features - Backup/Restore Your BIOS to/from Any USB Flash Disk - Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process - Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process APS (Active Phase Switching) Active Phase Switching, APS, technology is an intelligent design that helps to save energy on MSI’s mainboards. The underlying idea is to switch off the power supply as soon as no electricity is needed, and when the system needs more resources again, APS will automatically adjust electricity supply accordingly. APS will automatically detect your processor’s loading at any given time and save energy accordingly. This is only possible by means of a very advanced power controlling technology. Other than software-based solutions, APS technology stands out from MSI's own research. The specially developed IC chip can operate automatically depending on the demands of the power supply, which is to reduce the total power usage. Lossless 24-bit/192KHz HD Audio Onboard PC audio gets better! MSI is the first to implement the most high-end HD Audio codecs available. Don’t be fooled by other inferior audio solutions onboard (sometimes you can’t even find the driver!) Only MSI offers the Loss-less 24-bit/192KHz HD Audio function with an incredible 109 SNR dB value to provide the most clear & vivid HD audio quality and support 7.1 channels surround sound playback with a 2-channel independent stereo output (multiple streaming) through the front panel 3.5 inch phone jack. Winki 3 Winki 3 is a free Linux-based O/S which is based on the Linux core. With an ultra-fast booting speed and a multi-language interface, the built-in Winki 3 provides an easy-to-use internet environment that includes the most popular functions such as internet surfing, web mail, instant messaging, picture browsing, and more. It's the most practical way to be online in the shortest time. Features - User friendly & totally free applications - Power on to run applications in 25 seconds - Multi-language interface support i-Charger Mobile consumer appliances are getting more and more attention in current day fast moving life style, with smart phones and tablets almost becoming a fashion accessory. However, many ordinary personal computers cannot charge some of these devices, making it difficult to stay connected. The MSI i-Charger is a Windows resident program capable of revising the power supply mode of your USB port to become more powerful. Once your phone or tablet is connected to your USB port, the i-Charger sends a signal to initiate its charging circuit, making it a really smart and convenient charging solution for mobile computing needs. Features - Automatically Detect & Charge Your Smart Phone or Tablet - Support Microsoft Windows 98SE/ME/2000/XP/Vista/7 32Bit Live Update 5 MSI Live Update 5 is a powerful and useful application for updating the latest BIOS and Drivers, saving you time and lowers the risk of updating. End-users can install and run the Live Update 5 software on their computers with the companion CD or downloading the app from the MSI website. Features - Automatically Detect the BIOS/Driver/VGA/Utility Update - Support Microsoft Windows XP/Vista/7
Key Features
MSI PH67S-C43 (B3). Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory voltage: 1.5 V. Supported storage drive interfaces: SATA II, SATA III. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Frequently Asked Questions
Is this product genuine OEM?
Yes, this MSI PH67S-C43 (B3) motherboard Intel® H67 LGA 1155 (Socket H2) ATX (PH67S-C43 (B3)) is 100% genuine MSI hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This MSI PH67S-C43 (B3) motherboard Intel® H67 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the MSI PH67S-C43 (B3) motherboard Intel® H67 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PH67S-C43 (B3).
