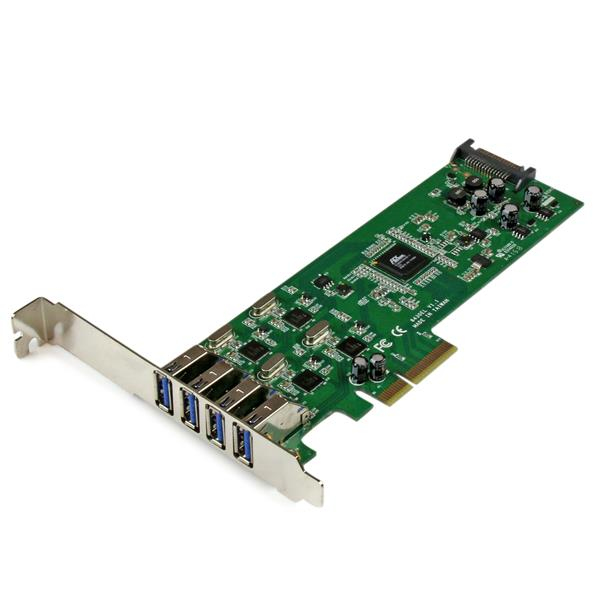

StarTech.com PEXUSB3S400 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
Brand: StarTech.com · SKU: PEXUSB3S400 · MPN: PEXUSB3S400 · Category: Components
StarTech.com PEXUSB3S400, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Green, Renesas/NEC uPD720202, 5 - 85 °C, -65 - 150 °C. StarTech.com PEXUSB3S400 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) (part number PEXUSB3S400) is an enterprise components product available from Server Tech Central. Key specifications include depth 73.2 mm, width 171 mm, height 19 mm, weight 60 g, chipset Renesas/NEC uPD720202, internal Yes, package depth 145 mm, package width 210 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 73.2 mm |
|---|---|
| Width | 171 mm |
| Height | 19 mm |
| Weight | 60 g |
| Chipset | Renesas/NEC uPD720202 |
| Internal | Yes |
| Package depth | 145 mm |
| Package width | 210 mm |
| Host interface | PCIe |
| Package height | 38 mm |
| Package weight | 171.6 g |
| Product colour | Green |
| Output interface | USB 3.2 Gen 1 (3.1 Gen 1) |
| Data transfer rate | 5 Gbit/s |
| Compliance certificates | RoHS |
| Storage temperature (T-T) | -65 - 150 °C |
| Operating temperature (T-T) | 5 - 85 °C |
| Compatible operating systems | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Vista (32/64-bit)/ Server 2008 R2/ 7 (32/64-bit)/ 8 (32/64-bit) |
| Operating relative humidity (H-H) | 20 - 80% |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Warranty | 3-Year Warranty |
| Weight | 60 g |
| Dimensions | 171 mm x 73.2 mm x 19 mm |
Product Description
The PEXUSB3S400 PCI Express USB 3.0 Card adds 4 independent external USB 3.0 ports to any PCI Express x4-enabled computer system, with full bandwidth support (up to 5Gbps) per port when connected to USB 3.0 devices.Unlike other USB 3.0 cards, which share the maximum bandwidth between multiple ports, the PEXUSB3S400 offers maximum transfer rates to each device when multiple devices are connected. This 4-port USB 3.0 card features a stacked port layout, which places the ports one on top of the other, so more ports are able to fit into a smaller space. Plus, with a built-in SATA power connector, each USB port can provide up to 900mA of power to devices that draw power from a host bus connection (500mA for USB 2.0) by connecting to your computer power supply. The PEXUSB3S400 USB 3.0 PCIe x4 card is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Increase efficiency of your USB 3.0 devices with up to 5 Gbps of bandwidth on each port. - Fits into full or low profile/small form factor (SFF) systems, with a dual profile design. - Power high-powered USB devices as necessary, with the optional SATA power connector.
Key Features
StarTech.com PEXUSB3S400. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1). Product colour: Green. Chipset: Renesas/NEC uPD720202. Width: 171 mm, Depth: 73.2 mm, Height: 19 mm. Package width: 210 mm, Package depth: 145 mm, Package height: 38 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com PEXUSB3S400 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) (PEXUSB3S400) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com PEXUSB3S400 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com PEXUSB3S400 interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXUSB3S400.
