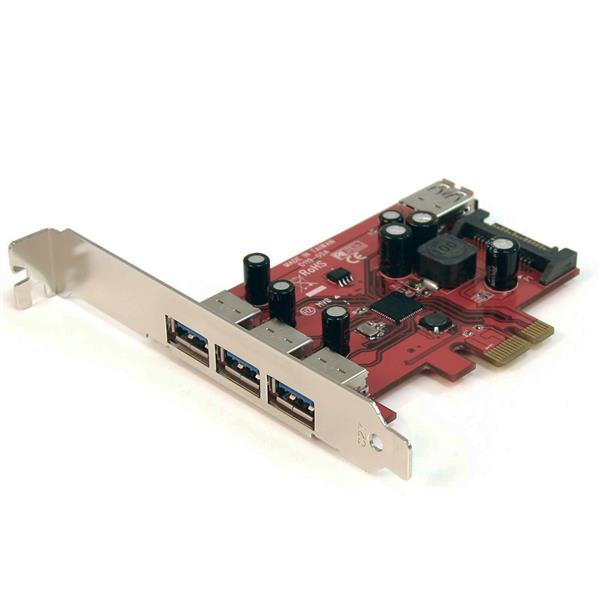

StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power

Brand: StarTech.com · SKU: PEXUSB3S4 · MPN: PEXUSB3S4 · Category: Components

StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power
Request for Quote
Backorder

StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), Full-height, SATA, PC, FCC, CE. StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power (part number PEXUSB3S4) is an enterprise components product available from Server Tech Central. Key specifications include depth 90 mm, width 70 mm, height 22 mm, weight 60 g, purpose PC, internal Yes, user guide Yes, connector(s) SATA. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.

View Components Products

Specifications

Depth90 mm
Width70 mm
Height22 mm
Weight60 g
PurposePC
InternalYes
User guideYes
Connector(s)SATA
CertificationFCC, CE
Package depth215 mm
Package width155 mm
Plug and PlayYes
Host interfacePCIe
Package height45 mm
Package weight190 g
Ports quantity4
Output interfaceUSB 3.2 Gen 1 (3.1 Gen 1)
Mac compatibilityNo
Data transfer rate5 Gbit/s
Compliance certificatesRoHS
Connectivity technologyWired
Expansion card form factorFull-height
Operating temperature (T-T)5 - 50 °C
Server operating systems supportedWindows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2
Warranty3-Year Warranty
Weight60 g
Dimensions70 mm x 90 mm x 22 mm

Product Description

Add 4 USB 3.0 ports to your desktop computer through a PCI Express expansion slot The PEXUSB3S4 4-Port PCI Express SuperSpeed USB 3.0 Card (with SATA Power) adds 3 external USB 3.0 ports and an internal USB 3.0 port to any PCI Express-enabled computer system. With SuperSpeed USB 3.0, you can reach data transfer speeds up to 5 Gbps, while still being backward compatible with existing USB 2.0 devices at 480Mbps. Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details. With a built-in SATA power connector, each USB port can provide up to 900mA of power to USB 3.0 devices (500mA for USB 2.0) by connecting to your computer power supply. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. Backed by a StarTech.com 2-year warranty and free lifetime technical support. Improved Performance with UASP UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance. At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources. Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive. The StarTech.com Advantage - SuperSpeed USB 3.0 connectivity at up to 5 Gbps and 80% more power than USB 2.0 - Fit into standard or low profile systems, with a dual profile design - Ensure sufficient power for your USB devices with the integrated SATA power connector

Key Features

StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1), Expansion card form factor: Full-height. Purpose: PC, Certification: FCC, CE. Windows operating systems supported: Windows 7 Home Premium, Windows 7 Home Premium x64, Windows Vista Home Premium, Windows Vista Home..., Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2. Width: 70 mm, Depth: 90 mm, Height: 22 mm. Package width: 155 mm, Package depth: 215 mm, Package height: 45 mm

Frequently Asked Questions

Is this product genuine OEM?

Yes, this StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power (PEXUSB3S4) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the StarTech.com 4 Port SuperSpeed USB 3.0 PCI Express Card with UASP - SATA Power compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXUSB3S4.
