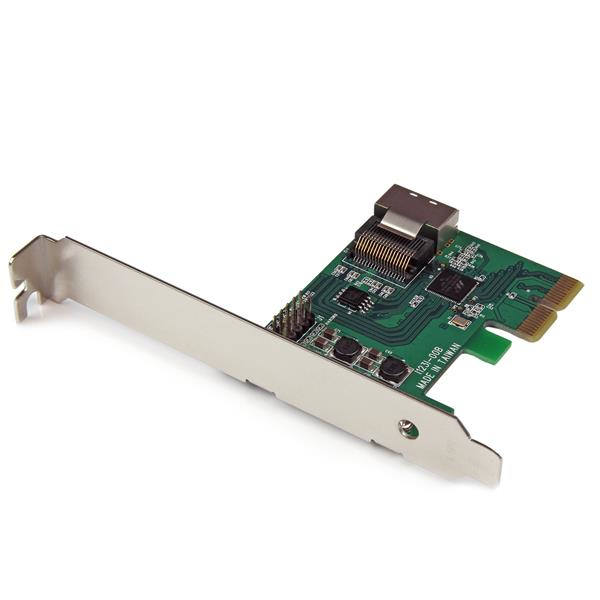

StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering
Brand: StarTech.com · SKU: PEXSAT34SFF · MPN: PEXSAT34SFF · Category: Components
StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering, SAS, PCI Express x2, 0, 1, 10, JBOD, 6 Gbit/s, Marvell 88SE9230, 48 bit
Specifications
| Depth | 70 mm |
|---|---|
| Width | 120 mm |
| Height | 10 mm |
| Manual | Yes |
| Weight | 40 g |
| Chipset | Marvell 88SE9230 |
| RAID levels | 0, 1, 10, JBOD |
| SSD support | Yes |
| Certification | RoHS, CE, FCC |
| Host interface | PCI Express x2 |
| Package weight | 131 g |
| Port multiplier | Yes |
| Drivers included | Yes |
| Data transfer rate | 6000 Mbit/s |
| PCI Card form factor | Full-height (low-profile) |
| Internal mini-SAS ports | 1 |
| PCI Express slots version | 2.0 |
| Storage temperature (T-T) | -25 - 70 °C |
| Package dimensions (WxDxH) | 145 x 175 x 30 mm |
| Operating temperature (T-T) | 5 - 50 °C |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Operating relative humidity (H-H) | 20 - 80% |
| Maximum supported storage capacity | 4 TB |
| Supported storage drive interfaces | SAS |
| Warranty | 3-Year Warranty |
| Weight | 40 g |
| Dimensions | 120 mm x 70 mm x 10 mm |
Product Description
The PEXSAT34SFF PCI Express 2.0 SATA Controller Card enables 4 AHCI SATA III connections to be added to a computer through a single internal Mini-SAS (SFF-8087) connector. The Mini-SAS connector with Port Multiplier support allows for multiple SATA drives (up to 7) to be connected using a single cable. When used with our Mini-SAS to 4x SATA breakout cable or Mini-SAS SFF-8087 backplane (accessories not included, SAS drives not supported), you have a complete internal 6Gbps connectivity solution, all from a single card. Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) Compliant with SATA revision 3.0, this PCI Express SATA RAID card delivers up to 6Gbps of data bandwidth; ideal for high performance hard drives and solid state drives (SSD). Plus, the controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. The PEXSAT34SFF PCIe SATA 6G card is backed by a 2-year StarTech.com warranty and free lifetime technical support. Note: The PEXSAT34SFF does not support SAS hard drives. You can connect multiple SATA hard drives to the card's SAS connector using a breakout cable such as the Mini-SAS to 4x SATA breakout cable. The StarTech.com Advantage - Leverage SSD performance and standard HDD capacity with HyperDuo technology - Maximize system capability with SATA III connection speeds - Eliminate cabling hassles by connecting a single SATA supported Mini-SAS backplane cable
Key Features
StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering. Supported storage drive interfaces: SAS, Host interface: PCI Express x2. RAID levels: 0, 1, 10, JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell 88SE9230. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7.... Width: 120 mm, Depth: 70 mm, Height: 10 mm. PCI Card form factor: Full-height (low-profile), Maximum supported storage capacity: 4 TB
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering (PEXSAT34SFF) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com PCI Express 2.0 SATA III 6Gbps Mini-SAS (SFF-8087) RAID Controller Card w/ HyperDuo SSD Tiering compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEXSAT34SFF.
