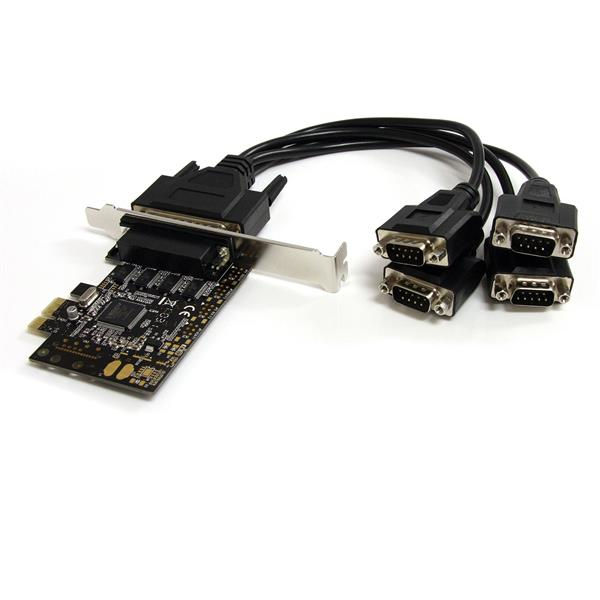

StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable
Brand: StarTech.com · SKU: PEX4S553B · MPN: PEX4S553B · Category: Components
StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable, PCIe, Serial, RS-232, Black, REACH, CE, ASIX Moschip MCS9904CV-AA. StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable (part number PEX4S553B) is an enterprise components product available from Server Tech Central. Key specifications include depth 80.5 mm, width 12 mm, height 68 mm, manual Yes, weight 239 g, chipset ASIX Moschip MCS9904CV-AA, internal Yes, baud rate 230.4 Kbit/s. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 80.5 mm |
|---|---|
| Width | 12 mm |
| Height | 68 mm |
| Manual | Yes |
| Weight | 239 g |
| Chipset | ASIX Moschip MCS9904CV-AA |
| Internal | Yes |
| Baud rate | 230.4 Kbit/s |
| Data bits | 5, 6, 7, 8 |
| Parity bit | Even, Mark, No, Odd |
| Certification | REACH, CE |
| Package depth | 145 mm |
| Package width | 208 mm |
| Host interface | PCIe |
| Package height | 41 mm |
| Package weight | 343 g |
| Product colour | Black |
| Cables included | Serial |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 4 |
| Compliance certificates | RoHS |
| Storage temperature (T-T) | -40 - 85 °C |
| Warranty | 3-Year Warranty |
| Weight | 239 g |
| Dimensions | 12 mm x 80.5 mm x 68 mm |
Product Description
Add 4 RS232 serial ports to any PC using a single PCI Express expansion slot The PEX4S553B 4-Port PCI Express Serial Card (with breakout cable) lets you add 4 RS232 serial ports using a single PCIe expansion slot, with an included 1-to-4 cable enabling you to add 4 serial ports to a single low profile slot. The serial card features a native single-chip design that provides optimum reliability and speed, reducing the CPU load by up to 48% over conventional bridge-chip serial cards - a cost-effective solution for connecting legacy serial devices to PCIe-enabled computers. The multi-port serial adapter includes both full profile and low profile/half-height brackets for compatibility with standard and small form factor computers, and is compatible with a broad range of operating systems, including Windows, Linux, and MAC OS. This product is a replacement for our PEX4S552B card. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Lower CPU load of native single-chip, single lane PCI Express design ensures optimal system performance (up to 48% less CPU load) - Includes both standard and low profile/half-height brackets, which makes this the perfect card for any application, including small form factor embedded applications - Breakout cable design means that only one expansion slot is needed, to add 4 additional serial ports to any system
Key Features
StarTech.com 4 Port RS232 PCI Express Serial Card w/ Breakout Cable. Host interface: PCIe, Output interface: Serial, Serial interface type: RS-232. Product colour: Black, Certification: REACH, CE. Chipset: ASIX Moschip MCS9904CV-AA, Baud rate: 230.4 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 12 mm, Depth: 80.5 mm, Height: 68 mm
