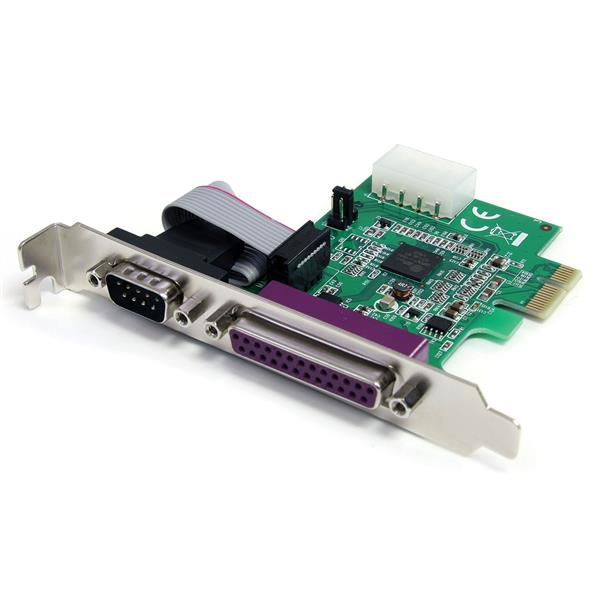

StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART
Brand: StarTech.com · SKU: PEX1S1P952 · MPN: PEX1S1P952 · Category: Components
StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART, PCIe, Parallel, Serial, PCIe 1.1, RS-232, Green, 87600 h. StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART (part number PEX1S1P952) is an enterprise components product available from Server Tech Central. Key specifications include depth 80 mm, width 12 mm, height 65 mm, manual Yes, weight 64 g, chipset PLX/Oxford - OXPCIe952, internal Yes, data bits 5, 6, 7, 8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 80 mm |
|---|---|
| Width | 12 mm |
| Height | 65 mm |
| Manual | Yes |
| Weight | 64 g |
| Chipset | PLX/Oxford - OXPCIe952 |
| Internal | Yes |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Certification | CE, FCC, TAA |
| Package depth | 174 mm |
| Package width | 144 mm |
| Host interface | PCIe |
| Package height | 31 mm |
| Package weight | 148 g |
| Product colour | Green |
| Drivers included | Yes |
| Output interface | Parallel, Serial |
| Flow Control type | XON/XOFF |
| Data transfer rate | 1.5 Mbit/s |
| Flow control support | Yes |
| Supports EPP and ECP | Yes |
| Serial interface type | RS-232 |
| Warranty | 3-Year Warranty |
| Weight | 64 g |
| Dimensions | 12 mm x 80 mm x 65 mm |
Product Description
Add a parallel and serial port through a standard or low-profile PCI Express slot The PEX1S1P952 1S1P Native PCI Express Parallel/Serial Combo Card with 16950 UART turns a PCI Express slot into 1 RS232 (DB9) serial, and 1 parallel port. The combo card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards that use a bridge chip design. This 1-Port Serial/1-Port Parallel card offers compatibility with a broad range of operating systems including Windows (32/64-bit) and Linux, for easy integration into mixed environments. The card also features an optional low profile/half-height bracket that enables you to install the card in virtually any computer case, regardless of form factor. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Native single-chip, single lane PCI Express chipset delivers true PCIe performance, reducing load on the CPU by up to 48% - Standard and low profile/half-height bracket included to ensure fitment in any system - Selectable power output on pin 9 allows for compatibility with more serial devices and industrial applications
Key Features
StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART. Host interface: PCIe, Output interface: Parallel, Serial, Expansion card standard: PCIe 1.1. Product colour: Green, Mean time between failures (MTBF): 87600 h, Certification: CE, FCC, TAA. Chipset: PLX/Oxford - OXPCIe952, FIFO (First In, First Out): 128 B, Data bits: 5, 6, 7, 8. Power consumption (typical): 0.2 W. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows..., Other operating systems supported: Windows XP Embedded
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART (PEX1S1P952) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1S1P Native PCI Express Parallel Serial Combo Card with 16950 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX1S1P952.
