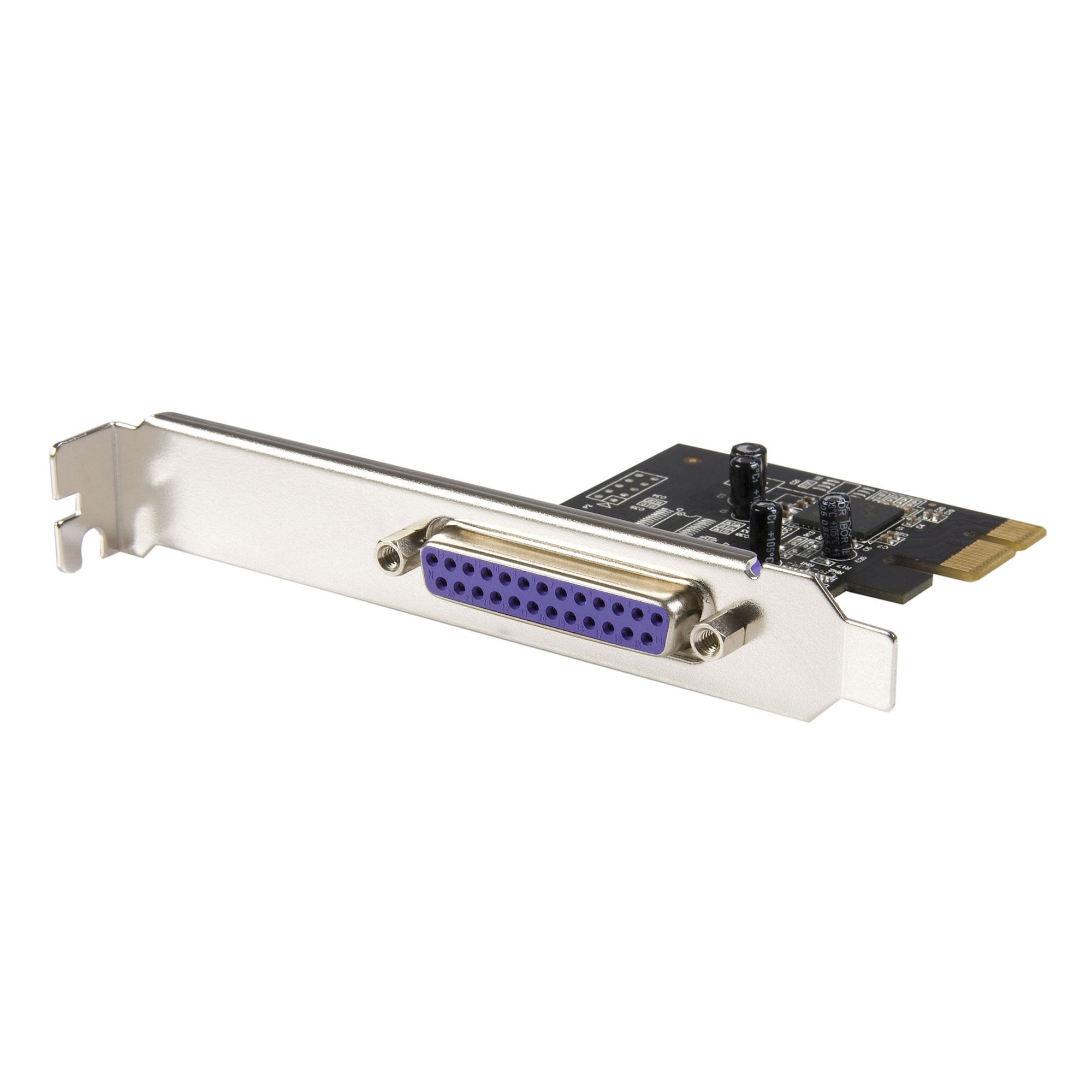

StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P)
Brand: StarTech.com · SKU: PEX1P · MPN: PEX1P · Category: Components
StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P), PCIe, Parallel, PCI 2.2, PLX/Oxford - OXPCIe952, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows...
Specifications
| Depth | 21 mm |
|---|---|
| Width | 110 mm |
| Height | 120 mm |
| Manual | Yes |
| Weight | 42 g |
| Chipset | PLX/Oxford - OXPCIe952 |
| Internal | Yes |
| Package depth | 170 mm |
| Package width | 143 mm |
| Host interface | PCIe |
| Package height | 30 mm |
| Package weight | 133 g |
| Drivers included | Yes |
| Output interface | Parallel |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCI 2.2 |
| Parallel ports quantity | 1 |
| Master (outer) case width | 305 mm |
| Master (outer) case height | 360 mm |
| Master (outer) case length | 590 mm |
| Mounting brackets included | Yes |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 80 pc(s) |
| Linux operating systems supported | Yes |
| Warranty | 3-Year Warranty |
| Weight | 42 g |
| Dimensions | 110 mm x 21 mm x 120 mm |
Product Description
Add a parallel port to your desktop computer through a PCI Express slot; features both standard and half-height mounting bracketsThe PEX1P PCIe Parallel Adapter card can be installed in a PCI Express (PCIe) slot, allowing you to connect EPP/ECP parallel peripherals to any computer system. Relying on a native single-chip design(Oxford OXPCIe952), this adapter harnesses the true capability of PCI Express - ensuring maximum performance and reliability.This high performance SPP/EPP/ECP parallel card adds one DB25 parallel port, perfect for connecting printers, scanners, CD-R/RW drives, memory card readers, bar code scanners and more. With the added convenience of plug and play capability, installing the parallel adapter card is hassle-free!The PCIe Parallel Adapter card includes both standard and half-height/low profile mounting brackets and is backed by a StarTech.com two year warranty and free lifetime technical support.The StarTech.com Advantage
Key Features
StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P). Host interface: PCIe, Output interface: Parallel, Expansion card standard: PCI 2.2. Chipset: PLX/Oxford - OXPCIe952. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows..., Other operating systems supported: Windows XP Embedded. Width: 110 mm, Depth: 21 mm, Height: 120 mm. Package width: 143 mm, Package depth: 170 mm, Package height: 30 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P) (PEX1P) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com Newer version available PEX1P2: 1 Port PCI Express Dual Profile Parallel Adapter Card - SPP/EPP/ECP - 1x DB25 IEEE 1284 PCIe Parallel Card (PEX1P) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX1P.
