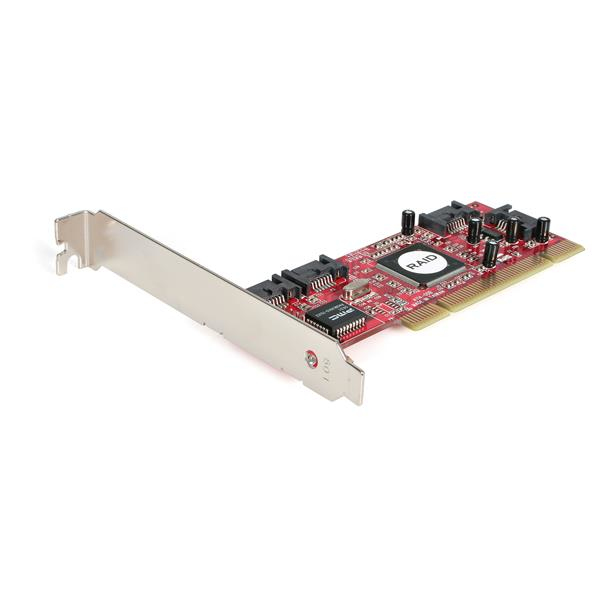

StarTech.com 4 Port PCI SATA RAID Controller Adapter Card
Brand: StarTech.com · SKU: PCISATA4R1 · MPN: PCISATA4R1 · Category: Components
StarTech.com 4 Port PCI SATA RAID Controller Adapter Card, SATA, PCI, PCI-X, PC, CE, FCC, RoSH, 3114R, 1.5 Gbit/s. StarTech.com 4 Port PCI SATA RAID Controller Adapter Card (part number PCISATA4R1) is an enterprise raid controllers product available from Server Tech Central. Key specifications include depth 120 mm, width 45 mm, height 22 mm, weight 46 g, chipset 3114R, purpose PC, internal Yes, i/o ports 4 - SATA 7-pin F. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 120 mm |
|---|---|
| Width | 45 mm |
| Height | 22 mm |
| Weight | 46 g |
| Chipset | 3114R |
| Purpose | PC |
| Internal | Yes |
| I/O ports | 4 - SATA 7-pin F |
| RAID levels | 0, 10, JBOD |
| Certification | CE, FCC, RoSH |
| Package depth | 217 mm |
| Package width | 48 mm |
| Plug and Play | Yes |
| SATA revision | 1.0 |
| Host interface | SATA |
| Package height | 160 mm |
| Package length | 8.54 mm |
| Package weight | 200 g |
| Ports quantity | 4 |
| Output interface | PCI, PCI-X |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1.5 Gbit/s |
| Storage temperature (T-T) | -25 - 70 °C |
| Warranty | 3-Year Warranty |
| Weight | 46 g |
| Dimensions | 45 mm x 120 mm x 22 mm |
Product Description
Add 4 SATA ports to your PC through a PCI expansion slot, with support for high-performance RAID array installation The PCISATA4R1 4 Port PCI SATA RAID Controller lets you add four internal SATA 1.0 (1.5 Gbps) ports to your PC through a single PCI expansion slot, while offering support for several RAID modes or a simple JBOD (Just a Bunch of Disks) configuration. The PCI SATA card provides increased performance and capacity with RAID 0 (Striping), or a redundant copy of your hard drive with RAID 1 (Mirroring). Configuring in RAID 10 (a.k.a. RAID 0+1) lets you leverage both by creating a mirrored copy of your striped disk set. Plus, the SATA RAID card supports RAID 1+S (Mirror + Spare), which uses a third installed drive to automatically replace a failed drive and rebuild the mirrored set – even if it is the boot drive that failed. For the ability to fit most standard computer cases, the card ships with a standard profile bracket installed and includes a low profile bracket for adapting to slimline or small form factor systems. Note: While the PCISATA4R1 card supports any size hard drive in JBOD mode, the max supported drive size when in RAID mode is 2 TB (per port). Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Configure for data redundancy, increased capacity or both with versatile RAID support - Fit almost any PC case with included low and full profile brackets
Key Features
StarTech.com 4 Port PCI SATA RAID Controller Adapter Card. Host interface: SATA, Output interface: PCI, PCI-X. Purpose: PC, Certification: CE, FCC, RoSH. Chipset: 3114R, Data transfer rate (max): 1.5 Gbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Width: 45 mm, Depth: 120 mm, Height: 22 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 4 Port PCI SATA RAID Controller Adapter Card (PCISATA4R1) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 4 Port PCI SATA RAID Controller Adapter Card includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 4 Port PCI SATA RAID Controller Adapter Card compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCISATA4R1.
