StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI / 66 MHz
Brand: StarTech.com · SKU: PCISAT2IDE1 · MPN: PCISAT2IDE1 · Category: Components
StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI / 66 MHz, PCI, PCI, PCI-X, PC, VIA VT6421A, 0.146 Gbit/s, 256 B
Specifications
| Chipset | VIA VT6421A |
|---|---|
| Purpose | PC |
| Internal | Yes |
| RAID levels | 0, 1, JBOD |
| Package depth | 211 mm |
| Package width | 38 mm |
| SATA revision | 1.0 |
| Host interface | PCI |
| Package height | 144 mm |
| Package length | 8.31 mm |
| Package weight | 200 g |
| Ports quantity | 3 |
| Cables included | SATA |
| Output interface | PCI, PCI-X |
| Data transfer rate | 150 Mbit/s |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Data transfer rate (max) | 0.146 Gbit/s |
| FIFO (First In, First Out) | 256 B |
| Compatible operating systems | Windows 98/98SE/ME/NT 4.0/2000/XP/Vista |
| Internal SATA ports quantity | 2 |
| Compliance industry standards | PCI 2.2, Serial ATA V1.0 |
| Case or master carton quantity | 50 pc(s) |
| Linux operating systems supported | Yes |
| Warranty | 3-Year Warranty |
Product Description

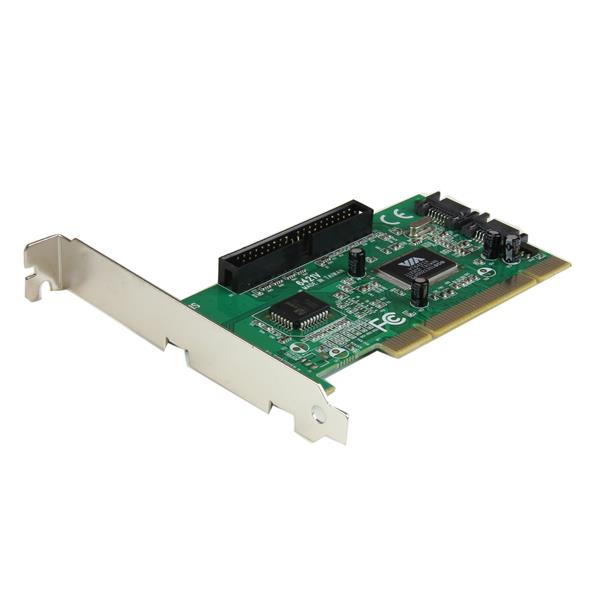

StarTech.com’s 2S1I PCI SATA IDE Combo Controller Adapter Card adds two Serial ATA ports and one Ultra ATA133 channel (supports 2 IDE drives) through simple installation in a single PCI slot. The SATA/IDE controller adapter card also includes a low profile bracket for adapting to slimline or small form factor system applications. This high quality adapter card is backed by StarTech.com's Lifetime Warranty and FREE lifetime tech support, making it the perfect upgrade for power-users. The StarTech.com Advantage - Connect both SATA and IDE hard drives in the same full or low profile system - Built in support for RAID 0, 1 or JBOD allows for flexible installations that need either speed, data redundancy or capacity - Two independent Serial ATA ports and one Ultra ATA133 port on one PCI card Applications - Connect both SATA and legacy IDE peripherals in the same system - Replace failed SATA and/or IDE connectors on the motherboard - Add additional IDE and SATA ports to a low or full profile computer system
Key Features
StarTech.com 2S1I PCI SATA IDE Combo Controller Adapter Card - Storage controller (RAID) - 3 Channel - SATA-150/DMA/ATA-133 - 150 MBps - RAID 0, 1, JBOD - PCI / 66 MHz. Host interface: PCI, Output interface: PCI, PCI-X. Purpose: PC. Chipset: VIA VT6421A, Data transfer rate (max): 0.146 Gbit/s, FIFO (First In, First Out): 256 B. Cables included: SATA, Package width: 38 mm, Package depth: 211 mm. Data transfer rate: 150 Mbit/s, Connectivity technology: Wired, Compatible operating systems: Windows 98/98SE/ME/NT 4.0/2000/XP/Vista
