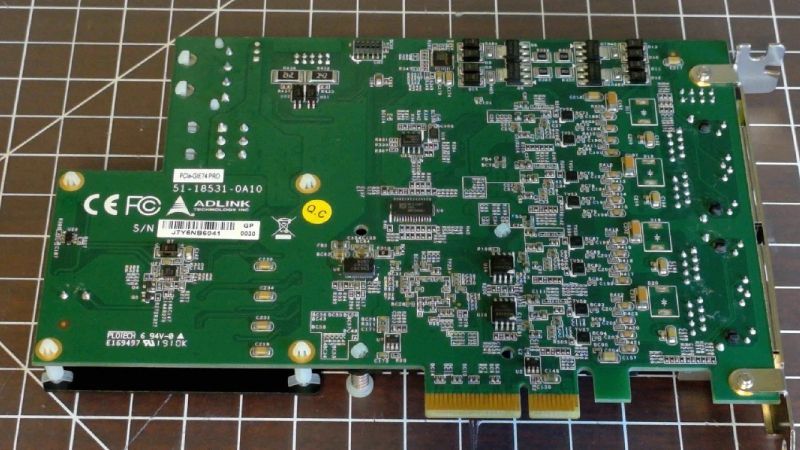

ADLINK PCIe-GIE74 4-Channel PCI Express GigE Vision PoE+ Frame Grabber
Brand: ADLINK Technology · SKU: PCIE-GIE74 · MPN: PCIE-GIE74 · Category: Components
The ADLINK PCIE-GIE74 is a high-performance 4-channel PCI Express GigE Vision PoE+ frame grabber designed to support multiple GigE Vision cameras for industrial and machine vision applications. It features four independent Gigabit Ethernet ports, providing seamless data acquisition with up to 1 Gb/s transfer rate per port. The card is equipped with IEEE 802.3at (PoE+) support, delivering up to 30W per port for direct camera power supply, which reduces cable clutter. The total PoE power output can reach up to 120W, depending on the power configuration, with options to draw power from the PCIe bus, 4-pin, or 6-pin Molex connectors (Note: some sources mention 60W total for the standard PCIe-GIE74, while the PRO version supports up to 120W). It supports jumbo frames up to 9 kB, link aggregation for increased bandwidth, and IEEE 1588 (PTP) for precise synchronization in multi-camera setups. The card utilizes a PCI Express x4 interface and is ideal for automated inspection, intelligent surve
Specifications
| Features | Link Aggregation, PoE Protection, Automated Power Budget Control, Multi-card Support |
|---|---|
| Interface | PCI Express x4 |
| PoE Standard | IEEE 802.3at (PoE+) |
| Ethernet Ports | 4 independent Gigabit Ethernet |
| Synchronization | IEEE 1588 (PTP) |
| Total PoE Power | Up to 120W (PCIe-GIE74 PRO) or up to 60W (Standard/Other configurations) |
| Max PoE per Port | Up to 30W |
| Jumbo Frame Support | Up to 9 kB |
| Warranty | 3 year warranty mentioned by one retailer; 1 Year Worldway Guarantee mentioned by another. |
| Weight | 5.00 (Likely lbs or an arbitrary packaging weight, not the card itself) |
| Dimensions | 4.2" x 6.6" (167.6 W x 106.6 H mm) |
Key Features
The ADLINK PCIe-GIE74 is a 4-channel PCI Express frame grabber specifically designed for GigE Vision machine vision systems. It provides high-speed, four-port Gigabit Ethernet connectivity with integrated Power over Ethernet Plus (PoE+) to power and communicate with up to four cameras simultaneously. Its robust feature set, including PTP synchronization and PoE protection, makes it suitable for demanding industrial automation and intelligent surveillance applications.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ADLINK PCIe-GIE74 4-Channel PCI Express GigE Vision PoE+ Frame Grabber (PCIE-GIE74) is 100% genuine ADLINK Technology hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ADLINK PCIe-GIE74 4-Channel PCI Express GigE Vision PoE+ Frame Grabber includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ADLINK PCIe-GIE74 4-Channel PCI Express GigE Vision PoE+ Frame Grabber compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCIE-GIE74.
