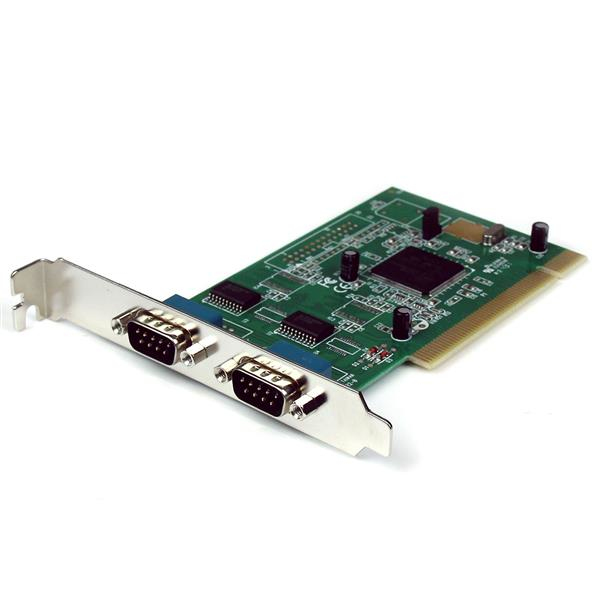

StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART
Brand: StarTech.com · SKU: PCI2S950 · MPN: PCI2S950 · Category: Components
StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART, PCI, Serial, Full-height, RS-232, Green, Metallic, PC. StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART (part number PCI2S950) is an enterprise components product available from Server Tech Central. Key specifications include depth 120 mm, width 20 mm, height 120 mm, weight 60 g, chipset PLX/Oxford - OX16PCI952, purpose PC, internal Yes, data bits 5, 6, 7, 8. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 120 mm |
|---|---|
| Width | 20 mm |
| Height | 120 mm |
| Weight | 60 g |
| Chipset | PLX/Oxford - OX16PCI952 |
| Purpose | PC |
| Internal | Yes |
| Data bits | 5, 6, 7, 8 |
| User guide | Yes |
| Certification | CE, FCC, UL |
| Package depth | 212 mm |
| Package width | 40 mm |
| Host interface | PCI |
| Package height | 144 mm |
| Package weight | 200 g |
| Product colour | Green, Metallic |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Data transfer rate (max) | 0.0004608 Gbit/s |
| Storage temperature (T-T) | -20 - 100 °C |
| Expansion card form factor | Full-height |
| Warranty | 3-Year Warranty |
| Weight | 60 g |
| Dimensions | 20 mm x 120 mm x 120 mm |
Product Description
Add 2 RS-232 serial ports to your computer via a single PCI slot The PCI2S950 2 Port PCI RS232 Serial Adapter Card with 16950 UART offers two high performance 16C950 serial UART channels/ports using a single PCI slot. Perfect for connecting new or legacy serial peripherals to your system, with data transfer rates of up to 460.8 Kbps. The PCI-based RS232 Serial card is a cost-effective solution for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, without having to upgrade peripherals for USB compatibility. Installation is a breeze with support for a broad range of Windows® operating systems. Plus, IRQ sharing and a PCI plug and play interface guarantee convenient, hassle-free connections. Backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Data transfer rates of up to 460.8 Kbps for peak serial device performance - Backward compatible with 16C450, 16C550, 16C650 and 16C750 UARTs for simple integration with existing hardware - Easy to install and use with full step-by-step instructions saves time and hassle
Key Features
StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART. Host interface: PCI, Output interface: Serial, Expansion card form factor: Full-height. Product colour: Green, Metallic, Purpose: PC, Mean time between failures (MTBF): 14744913 h. Chipset: PLX/Oxford - OX16PCI952, Data transfer rate (max): 0.0004608 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012. Width: 20 mm, Depth: 120 mm, Height: 120 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART (PCI2S950) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2 Port PCI RS232 Serial Adapter Card with 16950 UART compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCI2S950.
