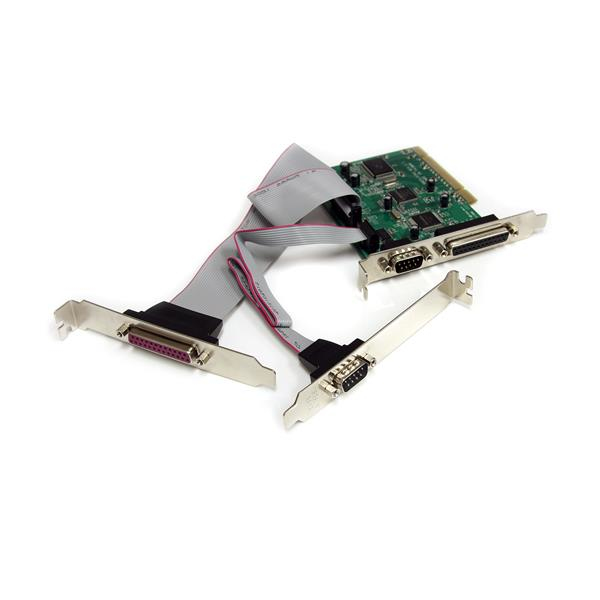

StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART
Brand: StarTech.com · SKU: PCI2S2PMC · MPN: PCI2S2PMC · Category: Components
StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART, PCI, Parallel, Serial, Full-height, RS-232, Multicolour, Moschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A. StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART (part number PCI2S2PMC) is an enterprise components product available from Server Tech Central. Key specifications include depth 133 mm, width 19 mm, height 89 mm, weight 80 g, chipset Moschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A, internal Yes, package depth 210 mm, package width 145 mm. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 133 mm |
|---|---|
| Width | 19 mm |
| Height | 89 mm |
| Weight | 80 g |
| Chipset | Moschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A |
| Internal | Yes |
| Package depth | 210 mm |
| Package width | 145 mm |
| Host interface | PCI |
| Package height | 40 mm |
| Package weight | 240 g |
| Ports quantity | 4 |
| Product colour | Multicolour |
| Output interface | Parallel, Serial |
| Mac compatibility | No |
| Data transfer rate | 1.5 Mbit/s |
| Supports EPP and ECP | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Connectivity technology | Wired |
| Parallel ports quantity | 2 |
| Storage temperature (T-T) | -45 - 150 °C |
| Expansion card form factor | Full-height |
| FIFO (First In, First Out) | 256 B |
| Warranty | 3-Year Warranty |
| Weight | 80 g |
| Dimensions | 19 mm x 133 mm x 89 mm |
Product Description
Add two Serial and two Parallel ports to your desktop system through a single PCI slot The PCI2S2PMC 2S2P PCI Serial/Parallel Combo Card (16C1050 UART) adds 2 RS232 serial, and 2 IEEE-1284 Parallel ports to your system, through a PCI slot. Supporting RS232 speeds up to 115.2 Kbps and parallel rates up to 1.5 Mbps, the serial/parallel adapter offers the added connectivity needed for industrial and business applications, while only occupying a single 3.3/5V PCI slot. This 2S-2P card offers a broad operating system compatibility list that includes Windows 7, Windows Server 2003, XP, DOS and Linux, for simple integration into mixed environments. Backed by a StarTech.com Lifetime warranty and free lifetime technical support. The StarTech.com Advantage - Unique 2S2P card design allows you to add 2 Serial and 2 Parallel ports using only a single PCI slot - Universal support for 32/64-bit, 3.3/5V PCI or PCI-X slots makes this a suitable expansion card for almost any system - Broad OS compatibility, including Windows and Linux for simple integration into mixed environments
Key Features
StarTech.com 2S2P PCI Serial Parallel Combo Card with 16C1050 UART. Host interface: PCI, Output interface: Parallel, Serial, Expansion card form factor: Full-height. Product colour: Multicolour. Chipset: Moschip MS9865IV-AA(2P) SystemBase SB10C1052PCI(2S) Pericom PI7C8140A, FIFO (First In, First Out): 256 B, Logical block addressing (LBA) support: 8 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,.... Width: 19 mm, Depth: 133 mm, Height: 89 mm
