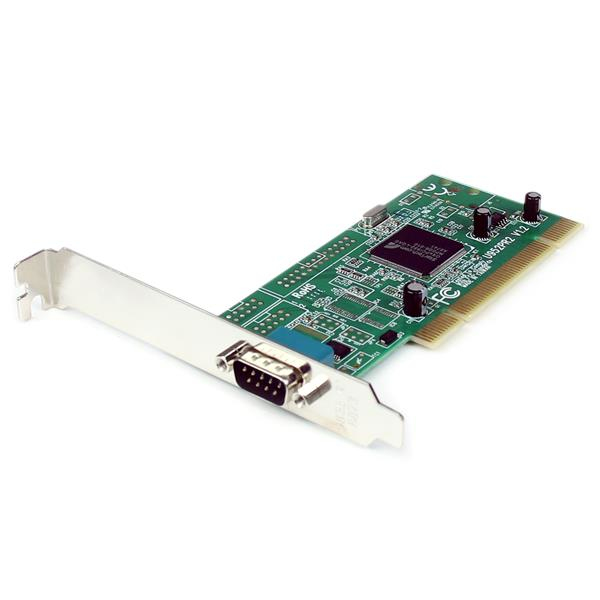

StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage
Brand: StarTech.com · SKU: PCI1S950DV · MPN: PCI1S950DV · Category: Components
StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage, PCI, Serial, Full-height / Low-profile, PCI 2.2, RS-232, Green, Stainless steel. StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage (part number PCI1S950DV) is an enterprise components product available from Server Tech Central. Key specifications include depth 120 mm, width 20 mm, height 120 mm, manual Yes, weight 60 g, purpose PC, internal Yes, certification CE, FCC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 120 mm |
|---|---|
| Width | 20 mm |
| Height | 120 mm |
| Manual | Yes |
| Weight | 60 g |
| Purpose | PC |
| Internal | Yes |
| Certification | CE, FCC |
| Package depth | 148 mm |
| Package width | 58 mm |
| Host interface | PCI |
| Package height | 195 mm |
| Package weight | 200 g |
| Product colour | Green, Stainless steel |
| Drivers included | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Compliance certificates | RoHS |
| Expansion card standard | PCI 2.2 |
| Data transfer rate (max) | 0.00046 Gbit/s |
| Storage temperature (T-T) | -20 - 100 °C |
| Expansion card form factor | Full-height / Low-profile |
| FIFO (First In, First Out) | 128 B |
| Warranty | 3-Year Warranty |
| Weight | 60 g |
| Dimensions | 20 mm x 120 mm x 120 mm |
Product Description
The PCI1S950DV 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage offers a high performance 16950 UART channel/port for connecting any new or legacy serial peripheral, with data transfer rates of up to 460Kbps. A cost-effective solution for connecting serial modems, POS devices, printers, ISDN terminal adapters and more, and offers dual voltage support, allowing you to use a PCI (5V) or PCI-X (3.3V) slot for installation. A versatile solution, the PCI Serial card supports several current and legacy versions of Windows®, plus IRQ sharing and a PCI plug and play interface to guarantee convenient, hassle-free serial device connections. Suitable for installation in standard or small form factor PC cases, the PCI serial card includes an optional low profile/half-height bracket for easy installation. Backed by a StarTech.com Lifetime Warranty and free lifetime technical support. The StarTech.com Advantage - Reach maximum transfer rates up to 420 Kbps for efficient serial device performance - Standard and low profile/half-height bracket included for fitment into almost any system form factor - Universal PCI card works in both 3.3 and 5.0 volt PCI/PCI-X slots for maximum compatibility
Key Features
StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage. Host interface: PCI, Output interface: Serial, Expansion card form factor: Full-height / Low-profile. Product colour: Green, Stainless steel, Purpose: PC, Certification: CE, FCC. Data transfer rate (max): 0.00046 Gbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012. Width: 20 mm, Depth: 120 mm, Height: 120 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage (PCI1S950DV) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 1 Port PCI RS232 Serial Adapter Card w/ 16950 UART - Dual Voltage compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCI1S950DV.
