Brand: National Instruments (NI) · SKU: PCI-GPIB · MPN: Varies by model (e.g., 778686-01, 778032-01, 783007-01) · Category: Components

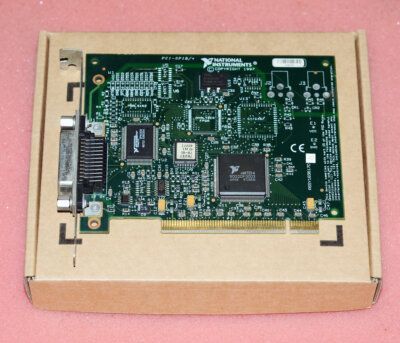

The National Instruments PCI-GPIB is a plug-and-play IEEE 488 interface for PCs and workstations with PCI expansion slots. It uses the PCI-MITE and TNT family ASICs to provide a maximum-performance IEEE 488.2 interface for the PCI bus. The board features an onboard bus master DMA controller to prevent microprocessor interruptions during data transfer. It supports data transfer rates of more than 1.5 MB/s using the IEEE 488.1 3-wire interlocked handshake and up to 7.7 MB/s using the high-speed IEEE 488.1 non-interlocked handshake (HS488). The PCI-GPIB/LP variant is a low-profile version. Various part numbers exist for different OS support (e.g., Windows, Linux) and profiles (e.g., 778686-01, 778032-01, 783007-01).
| Connector | IEEE 488 24-pin connector (LP version uses a special cable) |
|---|---|
| HS488 Rate | Up to 7885 kbytes/s (7.7 MB/s) |
| Bus Interface | PCI (Compliant with PCI Specification 2.1) |
| GPIB Standard | IEEE 488.2 |
| DMA Controller | Onboard Bus Master DMA |
| Controller ASIC | PCI-MITE and TNT family |
| Storage Temperature | -20 °C to 70 °C |
| Operating Temperature | 0 °C to 55 °C |
| 3-Wire Interlocked Handshake Rate | Up to 1536 kbytes/s (1.5 MB/s) |
| Warranty | Three Year Warranty (for specific models/offers). |
| Weight | Not explicitly listed, but is a standard PCI card. |
| Dimensions | Standard PCI card size approx. 13.3 cm × 10.7 cm (5.25 in. × 4.20 in.) for PCI-GPIB/TNT4882C; PCI-GPIB/LP is 12 cm × 6.44 cm (4.87 in. × 2.54 in.). |
The PCI-GPIB is a high-performance IEEE 488.2 interface board designed for PCI expansion slots in PCs and workstations. It provides fast data transfer capabilities (up to 7.7 MB/s with HS488) and includes DMA control for efficient operation without interrupting the host CPU. It is compatible with NI-488.2 driver software.
