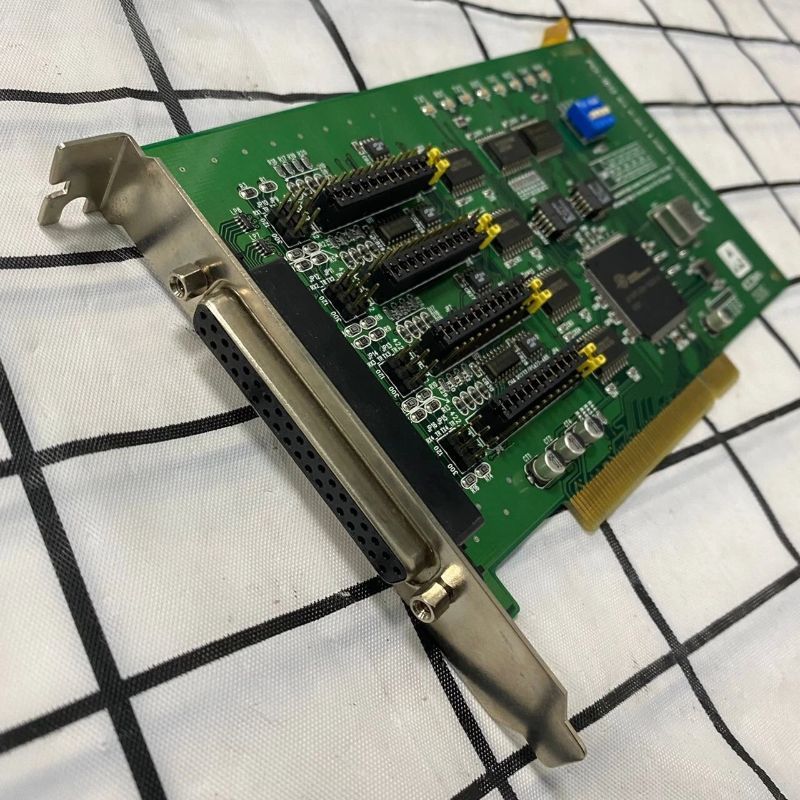

Advantech PCI-1612A-BE 4 Port RS-232/422/485 PCI Serial Communication Card with DB25
Brand: Advantech · SKU: PCI-1612A-BE · MPN: PCI-1612A-BE · Category: Components
The Advantech PCI-1612A-BE is a 4-port RS-232/422/485 PCI Serial Communication Card featuring a DB25 connector. It is compliant with the PCI bus specification 2.1 and offers communication speeds up to 921.6 kbps. The card utilizes 16PCI954 UARTs with 128-byte FIFOs as standard. It supports automatic I/O address assignment via PCI Plug & Play and is compatible with operating systems including Windows® 98/ME/2000/XP and Linux®. The design includes an interrupt status register for enhanced performance and automatic RS-485 data flow control. This model appears to use a DB37 connector, although one source mentions DB25 in the title for the -BE variant specifically, and another mentions DB37-F for the general PCI-1612A series. The PCI-1612A series generally supports Universal PCI (3.3 V or 5 V bus signal).
Specifications
| Ports | 4 |
|---|---|
| Connector | DB25 (as per -BE variant title) / DB37-F (for general PCI-1612A) |
| Max Speed | 921.6 kbps |
| UART/FIFO | 16PCI954 UARTs with 128-byte FIFOs standard |
| Flow Control | RTS/CTS, Xon/Xoff, Automatic RS-485 data flow control |
| Bus Interface | PCI V 2.1 |
| Interface Standard | RS-232/422/485 |
| Operating Temperature | -10 ~ 60° C (14 ~ 144° F) or 0~ 65° C (32 ~ 149° F) |
| Warranty | N/A (Check with Seller) |
| Weight | N/A |
| Dimensions | 185 x 100 mm (7.3” x 3.9”) (for PCI-1612A series) |
Key Features
A 4-port serial communication card based on the PCI 2.1 bus, supporting RS-232, RS-422, and RS-485 protocols with high transmission speeds and 128-byte FIFOs per port for efficient CPU usage. It is designed for Plug & Play installation and features automatic RS-485 data flow control.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Advantech PCI-1612A-BE 4 Port RS-232/422/485 PCI Serial Communication Card with DB25 (PCI-1612A-BE) is 100% genuine Advantech hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Advantech PCI-1612A-BE 4 Port RS-232/422/485 PCI Serial Communication Card with DB25 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Advantech PCI-1612A-BE 4 Port RS-232/422/485 PCI Serial Communication Card with DB25 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PCI-1612A-BE.
