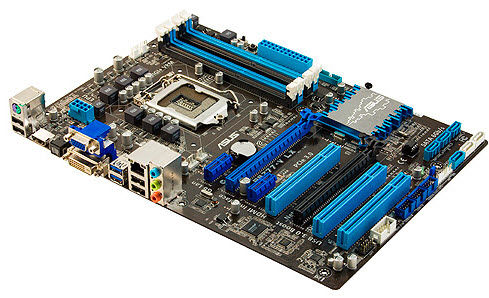

ASUS P8Z77-V-LX motherboard Intel Z77 LGA 1155 (Socket H2) ATX
Brand: ASUS · SKU: P8Z77-V-LX · MPN: P8Z77-V-LX · Category: Components
ASUS P8Z77-V-LX, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, DIMM, Dual-channel. ASUS P8Z77-V-LX motherboard Intel Z77 LGA 1155 (Socket H2) ATX (part number P8Z77-V-LX) is an enterprise components product available from Server Tech Central. Key specifications include depth 218 mm, width 305 mm, bios type UEFI, pci slots 3, audio chip Realtek ALC887, raid levels 0, 1, 5, 10, acpi version 2.0a, ethernet lan Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 218 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI |
| PCI slots | 3 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Graphics card | HD Graphics |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 2 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 218 mm |
Product Description
CPU, Chipset and Graphics Features LGA1155 Intel® 3rd/2nd Generation Processors Ready This motherboard supports LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processorsare among the most powerful and energy efficient CPUs in the world Intel® Z77 Express Chipset The Intel® Z77 Express Chipset is a single-chipset design to support LGA1155 socket for 3rd generation Intel® Core™ processor-based platform and 2nd Generation Core™ i7/ i5/ i3/ Pentium® / Celeron® Processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel® Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance. Intel® Smart Response Technology SSD Speed with HDD Capacity Intel® Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system. Intel® Smart Connect Technology Auto Application Refresh. Less Waiting Time Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience. Intel® Rapid Start Technology Instant Awake your PC from Sleep Mode Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping the energy use low. LucidLogix Virtu MVP Up to 60% Hybrid Graphics Boost and 3X Faster Video Conversion LucidLogix Virtu MVP featuring HyperFormance™ Technology boosts your discrete graphics card up to 60% beyond its original performance through the test of 3DMark Vantage. Designed for Intel® processor graphics and Windows® 7 PCs, it perfectly combines the performance of discrete graphics cards with fast computing iGPU. Also with the newly designed Virtual Sync, users can enjoy a smoother gaming experience by eliminating tearing artifacts. LucidLogix Virtu MVP could also dynamically assign tasks to the best available graphics resource, based on power, performance and system load. This allows users to fully utilize 3x faster video conversion with Intel® Quick Sync Video technology while retaining high-end 3D rendering and gaming performance, provided by both NVIDIA® and AMD graphic cards. When the discrete graphics card is not required, power consumption goes automatically down to near zero, making the system more environmentally-friendly. For users searching for perfection, LucidLogix Virtu MVP provides great graphical performance and the best flexibility and efficiency. PCIe 3.0 Ready PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them. ASUS Exclusive Features DIGI+ VRM Digital Power Design All-new digital CPU power controls work perfectly together to match digital power signal (SVID) requests from the CPU, with ultra-fast sensing and response efficiently delivering precision power. Accurate delivery reduces waste, and provides more stable CPU Vcore voltages. Users can adjust CPU PWM voltages and frequencies for various overclocking scenarios, with accurate input through UEFI BIOS tuning or the exclusive ASUS interface. This proprietary design increases overclocking headroom to push performance to its full potential. USB 3.0 Boost Faster USB 3.0 Transmission with UASP ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a
Key Features
ASUS P8Z77-V-LX. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory channels: Dual-channel. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: Quad-GPU CrossFireX, Maximum graphics card memory: 1696 MB, Graphics card: HD Graphics. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8Z77-V-LX motherboard Intel Z77 LGA 1155 (Socket H2) ATX (P8Z77-V-LX) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8Z77-V-LX motherboard Intel Z77 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8Z77-V-LX motherboard Intel Z77 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8Z77-V-LX.
