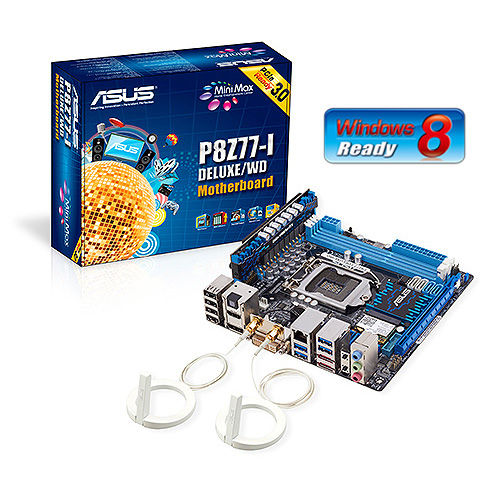

ASUS P8Z77-I DELUXE/WD motherboard Intel Z77 LGA 1155 (Socket H2) mini ITX
Brand: ASUS · SKU: P8Z77-I DELUXE/WD · MPN: P8Z77-I DELUXE/WD · Category: Components
ASUS P8Z77-I DELUXE/WD, Intel, LGA 1155 (Socket H2), Intel® Celeron® G, Intel® Pentium®, 5 GT/s, DDR3-SDRAM, 16 GB. ASUS P8Z77-I DELUXE/WD motherboard Intel Z77 LGA 1155 (Socket H2) mini ITX (part number P8Z77-I DELUXE/WD) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, wi-fi Yes, width 170 mm, bios type UEFI, bluetooth Yes, audio chip Realtek ALC898, raid levels 0, 1, 5, 10, ethernet lan Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Wi-Fi | Yes |
| Width | 170 mm |
| BIOS type | UEFI |
| Bluetooth | Yes |
| Audio chip | Realtek ALC898 |
| RAID levels | 0, 1, 5, 10 |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Intel® 82579V |
| Cables included | SATA |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| System bus rate | 5 GT/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g |
| BIOS memory size | 64 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| Bluetooth version | 4.0 |
| CPU fan connector | Yes |
| Clear CMOS jumper | Yes |
| Headphone outputs | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
LGA1155 Intel® 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors Ready This motherboard supports Intel® 3rd/2nd generation Core™ i7/i5/i3/Pentium®/Celeron® processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 3rd/2nd generation Core™ i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy efficient CPUs in the world. PCIe 3.0 Ready CI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them. Intel® Z77 Express Chipset The Intel® Z77 Express Chipset is a single-chipset design to support socket 1155 Intel® 3rd/2nd generation Core™ i7/i5/i3/Pentium®/Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, Z77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel® Z77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance. Dual Intelligent Processors 2 with DIGI+ VRM Digital Power Design: The New Standard The world’s first Dual Intelligent Processors from ASUS pioneered the use of two onboard chips - EPU (Energy Processing Unit) and TPU (TurboV Processing Unit). The new generation of Dual Intelligent Processors 2 with DIGI+ VRM provides precise Vcore PWM, integrated graphics voltages and frequency module adjustments with minimal power loss through BIOS tuning and an exclusive user interface to increase the board’s overclocking range while performance reaches its full potential. ASUS DIGI+ VRM digital power design empowers users with superior flexibility and perfect precision to ensure optimized performance, extreme system stability and greater power efficiency. DIGI+ VRM Herald the Arrival of a New Digital Power Design Era VRM, or voltage regulator modules, are considered among the most essential motherboard design components. They supply the voltage demanded by the CPU, and a good VRM must intelligently detect actual CPU power draw to provide precise power accordingly. ASUS DIGI+ VRM is an innovative, industry-leading technology that fully integrates Intel® VRD12 specifications on a native level, greatly enhancing power to go far beyond the limits of analog designs. TPU The Ultimate Turbo Processor Unleash your performance with ASUS' simple onboard switch or AI Suite II utility. The TPU chip offers precise voltage control and advanced monitoring through Auto Tuning, GPU Boost and TurboV functions. Auto Tuning offers a user friendly way to automatically optimize the system for fast, yet stable clock speeds, while TurboV enables unlimited freedom to adjust CPU frequencies and ratios for optimized performance in diverse situations. EPU Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! USB 3.0 Boost Faster USB 3.0 Transmission with UASP New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction. WiDi ASUS offers the first star appearance of Intel® WiDi technology on mini ITX motherboards, enabling wireless streaming of content from your desktop to the big screen. Favorite movies, family videos, or precious photos - everything looks great in complete clarity, so sharing is easier and more fun. Plus, it works equally well for productivity and business presentations, upscaling your experiences in multiple ways. USB BIOS Flashback Easy, Worry-free USB BIOS Flashback USB BIOS Flashback offers the most convenient way to flash the BIOS ever! It allows overclockers to try new UEFI BIOS versions easily, without even entering their existing BIOS or operating system. It even works without key components such as the CP
Key Features
ASUS P8Z77-I DELUXE/WD. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron® G, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: LucidLogix Virtu, Graphics card family: Intel, Maximum resolution: 2560 x 1600 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Intel® 82579V, Wi-Fi standards: 802.11a, 802.11b, 802.11g
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8Z77-I DELUXE/WD motherboard Intel Z77 LGA 1155 (Socket H2) mini ITX (P8Z77-I DELUXE/WD) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8Z77-I DELUXE/WD motherboard Intel Z77 LGA 1155 (Socket H2) mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8Z77-I DELUXE/WD motherboard Intel Z77 LGA 1155 (Socket H2) mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8Z77-I DELUXE/WD.
