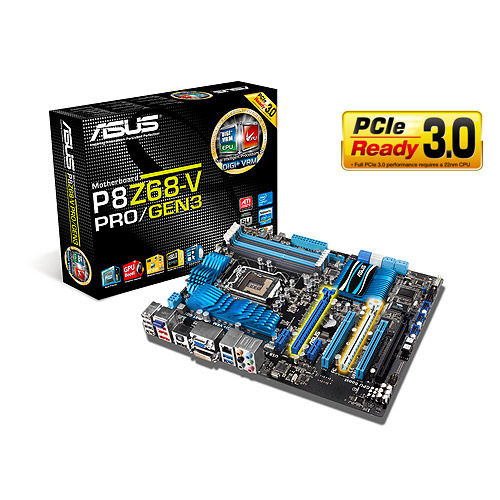

ASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX
Brand: ASUS · SKU: P8Z68-V-PRO/GN3 · MPN: P8Z68-V-PRO/GN3 · Category: Components
ASUS P8Z68-V-PRO/GN3, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, DIMM, Dual-channel. ASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX (part number P8Z68-V-PRO/GN3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 305 mm, bios type UEFI, bluetooth Yes, pci slots 2, acpi version 2.0a, component for PC, s/pdif in port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 305 mm |
| BIOS type | UEFI |
| Bluetooth | Yes |
| PCI slots | 2 |
| ACPI version | 2.0a |
| Component for | PC |
| S/PDIF in port | Yes |
| Memory channels | Dual-channel |
| BIOS memory size | 64 Mbit |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 12 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel Z68 |
| Power fan connector | Yes |
| S/PDIF in connector | Yes |
| eSATA ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| Supported memory types | DDR3-SDRAM |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 244 mm |
Product Description
USB 3.0 Boost Faster USB 3.0 Transmission with UASP New ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol), the latest USB 3.0 standard. With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to an already impressive fast USB 3.0 transfer speed. ASUS software automatically accelerates data speeds for compatible USB 3.0 peripherals without the need for any user interaction. - World’s 1st USB 3.0 UASP Support – 170% faster instantly - Complete USB 3.0 Solution – Performance boost for most USB devices - Simple Plug & Boost – Auto detection design ensures best performance always PCI Express® 3.0 PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them. UEFI BIOS (EZ Mode) Flexible & Easy BIOS Interface Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information. Supports Hard Drives over 2.2TB ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions. Exclusive ASUS Interface - EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing - Advanced Mode - for experienced performance enthusiasts that demand intricate system settings LucidLogix® Virtu Universal Switchable Graphics Technology LucidLogix® Virtu is designed for the Intel® Sandy Bridge platform's powerful integrated graphics. Its GPU virtualization dynamically assigns tasks to the best available graphics resources based on power, performance and system load on Windows® 7 based PCs. It allows users to fully utilize the unique capabilities of advanced Sandy Bridge multimedia features alongside the high end 3D rendering performance provided by installed graphics cards. When no discrete graphics are needed, the graphics card is put in idle mode to lower utilization, heat, fan speed and power draw down to near zero, making the system more environmentally-friendly. For users with diverse needs, LucidLogix® Virtu GPU virtualization provides great flexibility and efficiency.
Key Features
ASUS P8Z68-V-PRO/GN3. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory channels: Dual-channel. Supported storage drive interfaces: SATA. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel. BIOS type: UEFI, BIOS memory size: 64 Mbit, ACPI version: 2.0a
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX (P8Z68-V-PRO/GN3) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8Z68-V-PRO/GN3 motherboard Intel Z68 LGA 1155 (Socket H2) ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8Z68-V-PRO/GN3.
