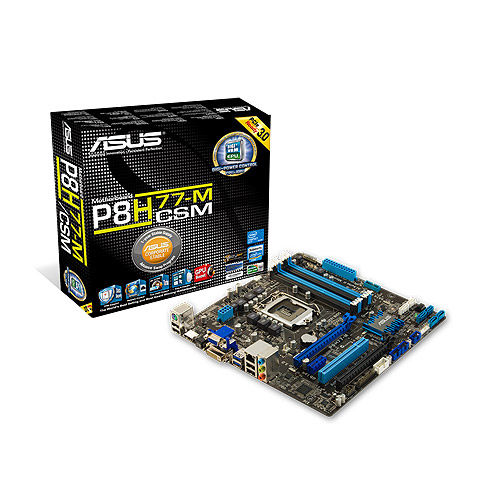

ASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8H77-M/CSM · MPN: P8H77-M/CSM · Category: Components
ASUS P8H77-M/CSM, Intel, LGA 1155 (Socket H2), Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, DDR3-SDRAM, 32 GB, DIMM. ASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATX (part number P8H77-M/CSM) is an enterprise components product available from Server Tech Central. Key specifications include hdcp Yes, depth 245 mm, wi-fi No, width 245 mm, bios type EFI AMI, bluetooth No, pci slots 1, audio chip Realtek ALC887. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| HDCP | Yes |
|---|---|
| Depth | 245 mm |
| Wi-Fi | No |
| Width | 245 mm |
| BIOS type | EFI AMI |
| Bluetooth | No |
| PCI slots | 1 |
| Audio chip | Realtek ALC887 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Dual Link DVI | Yes |
| Graphics card | HD Graphics |
| Microphone in | Yes |
| TPM connector | Yes |
| LAN controller | Realtek RTL8111F |
| Memory voltage | 1.5 V |
| OpenGL version | 3.2 |
| Cables included | SATA |
| DirectX version | 11 |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 245 mm |
Product Description
LGA1155 Intel® 3rd/2nd Generation Processors Ready This motherboard supports the Intel® 3rd/2nd generation processors in the LGA1155 package, with iGPU, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, 2-channel (4 DIMM) DDR3 memory and 16 PCI Express 3.0/2.0 lanes. This provides great graphics performance. Intel® 3rd/2nd generation processors are among the most powerful and energy efficient CPUs in the world. Intel® H77 Express Chipset The Intel® H77 Express Chipset is a single-chipset design to support socket 1155 Intel® 3rd/2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, H77 chipset provides 4 USB 3.0 ports for 10 times faster data retrieval speed. Moreover, Intel® H77 Express Chipset can also enable iGPU function, letting users enjoy the latest Intel® integrated graphic performance. Intel® Smart Response Technology Intel® Smart Response Technology boosts overall system performance. It uses an installed fast SSD (min 18.6GB available capacity required) as a cache for frequently accessed data. Key benefits include reduced load and wait times, and lower power consumption through the elimination of unnecessary hard drive spin. This technology combines SSD performance with hard drive capacity, operating up to 6X faster than a hard drive-only system. Intel® Smart Connect Technology Your computer can receive web updates with fresh content for selected applications, even when the system is in sleep mode. This means less time waiting for applications to update and sync with the cloud, leading to a more efficient computing experience. Intel® Rapid Start Technology Allows your computer to quickly resume from a low-power hibernate state in seconds. Saving your system memory to the designated SSD, it provides your computer a faster wake-up response time, while still keeping the energy use low.
Key Features
ASUS P8H77-M/CSM. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7. Supported memory types: DDR3-SDRAM, Maximum internal memory: 32 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III, RAID levels: 0, 1, 5, 10. Parallel processing technology support: 2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX, Maximum graphics card memory: 1696 MB, Graphics card family: Intel. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111F, Networking features: Gigabit LAN
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATX (P8H77-M/CSM) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H77-M/CSM motherboard Intel H77 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8H77-M/CSM.
