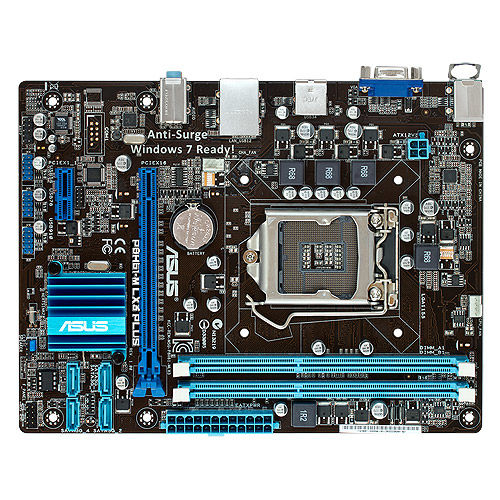

ASUS P8H61-M LX3 PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8H61-M LX3 PLUS · MPN: P8H61-M LX3 PLUS · Category: Components
ASUS P8H61-M LX3 PLUS, Intel, LGA 1155 (Socket H2), Intel® Celeron®, Intel® Pentium®, DDR3-SDRAM, 16 GB, DIMM. ASUS P8H61-M LX3 PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (part number P8H61-M LX3 PLUS) is an enterprise components product available from Server Tech Central. Key specifications include depth 173 mm, width 226 mm, bios type UEFI, audio chip VIA VT1708S, cooling type Passive, ethernet lan Yes, component for PC, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 173 mm |
|---|---|
| Width | 226 mm |
| BIOS type | UEFI |
| Audio chip | VIA VT1708S |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111F |
| Cables included | SATA |
| Memory channels | Dual-channel |
| BIOS memory size | 32 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| USB 2.0 connectors | 3 |
| Motherboard chipset | Intel® H61 |
| Networking features | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 226 mm x 173 mm |
Product Description
P8H61-M LX3 PLUS H61 with enhanced safety, better system stability and easy-to-use UEFI BIOS - Anti-Surge - Full-time Power Guardian-Make System Free From Risk; - ESD Protection - Protect Your Computer with ESD Guards; - UEFI BIOS - Flexible & Easy BIOS Interface; - AI Suite II - One-stop Access to Innovative ASUS Features. LGA1155 socket for Intel® Second Generation Core™ i7/ Core™ i5/ Core™ i3 Processors This motherboard supports the Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors in LGA1155 package with memory and PCI Express controllers integrated to support 2-channel (2 DIMMs) DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® second generation Core™ i7 / Core™ i5 / Core™ i3 processors are among the most powerful and energy efficient CPUs in the world. Intel® H61(B3) Express Chipset The Intel® H61(B3) Express Chipset is the latest single-chipset design to support the new 1155 socket Intel® Core™ i7 / Core™ i5 / Core™ i3 2nd generation processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Anti-Surge Protection Protect Your Device Anti-Surge Protection Design detects overvoltage conditions and prevents voltage surges from spreading in real time. It also actively cuts off the overvoltage supply to protect the system. 1. Real-time over voltage detection. 2. Active protection against potential damage to your motherboards and systems. Dual-Channel DDR3 1333 / 1066 support The motherboard supports DDR3 memory that features data transfer rates of 1333 / 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. AI Suite II With its fast user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows you to supervise overclocking, energy management, fan speed control, voltage and sensor readings. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. 100% All High-quality Conductive Polymer Capacitors This motherboard uses all high-quality conductive polymer capacitors for durability, improved lifespan, and enhanced thermal capacity. EZ-Flash 2 Simply update BIOS from a USB flash disk before entering the OS EZ Flash 2 is a user-friendly BIOS update utility. Simply launch this tool and update BIOS from a USB flash disk before entering the OS. You can update your BIOS only in a few clicks without preparing an additional floppy diskette or using an OS-based flash utility. UEFI BIOS (EZ Mode) Exclusive to ASUS motherboards, its UEFI (Unified Extensible Firmware Interface) is the first ever mouse-controlled graphical BIOS interface designed with dual selectable modes. It delivers a user-friendly interface that goes beyond traditional keyboard-only BIOS controls to enable more flexible and convenient input with quick scrolling. Users can easily navigate the UEFI BIOS with the smoothness of their operating system. Quick and simple overclocking and setup sharing is facilitated by the F12 hotkey BIOS snapshot feature. The exclusive EZ Mode displays frequently-accessed setup info, while the Advanced Mode is for experienced performance enthusiasts that demand far more intricate system control, including detailed DRAM information. Supports Hard Drives over 2.2TB ASUS UEFI BIOS natively supports hard drives larger than 2.2TB in 64-bit, with full storage space utilization helping deliver far more exciting computing than traditional BIOS versions. Exclusive ASUS Interface - EZ Mode - gives easy access to selectable, optimized system modes, clear system info display and drag and drop boot prioritizing; - Advanced Mode - for experienced performance enthusiasts that demand intricate system settings 8-channel high definition audio. The onboard 8-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output and jack-detect feature that automatically detects and identifies what types of peripherals are plugged into the audio I/O jacks and notifies users of inappropriate connection, which means there will be no more confusion of Line-in, Line-out, and Mic jacks. ErP ready The motherboard is European Union´s Energy-related Products (ErP) ready, and ErP requires products to meet certain energy efficiency requirements in regards to energy consumptions. This is in line with ASUS vision of creating environment-friendly and energy-efficient products through product design and innovation to reduce carbon footprint of the product and thus mitigate environmental impacts.
Key Features
ASUS P8H61-M LX3 PLUS. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron®, Intel® Pentium®. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II. Maximum graphics card memory: 1748 MB, Graphics card family: Intel, Maximum resolution: 2048 x 1536 pixels. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111F, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8H61-M LX3 PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX (P8H61-M LX3 PLUS) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8H61-M LX3 PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8H61-M LX3 PLUS motherboard Intel® H61 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8H61-M LX3 PLUS.
