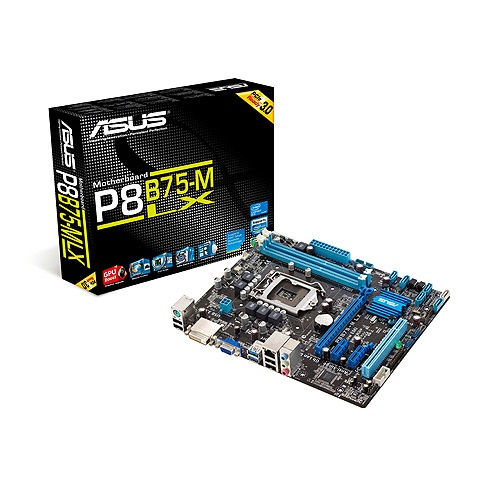

ASUS P8B75-M LX motherboard Intel B75 LGA 1155 (Socket H2) micro ATX
Brand: ASUS · SKU: P8B75-M LX · MPN: P8B75-M LX · Category: Components
ASUS P8B75-M LX, Intel, LGA 1155 (Socket H2), Intel® Celeron® G, DDR3-SDRAM, 16 GB, DIMM. ASUS P8B75-M LX motherboard Intel B75 LGA 1155 (Socket H2) micro ATX (part number P8B75-M LX) is an enterprise components product available from Server Tech Central. Key specifications include depth 198 mm, width 244 mm, bios type AMI, pci slots 1, audio chip VIA VT1708S, acpi version 2.0a, ethernet lan Yes, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 198 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | VIA VT1708S |
| ACPI version | 2.0a |
| Ethernet LAN | Yes |
| Component for | PC |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111F |
| Cables included | SATA |
| Memory channels | Dual-channel |
| BIOS memory size | 128 Mbit |
| Drivers included | Yes |
| Processor socket | LGA 1155 (Socket H2) |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Maximum resolution | 2048 x 1536 pixels |
| Parallel connector | Yes |
| USB 2.0 connectors | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 198 mm |
Product Description
LGA1155 Intel® Ivy Bridge Processor Ready This motherboard supports the latest Intel® Ivy Bridge processors in the LGA1155 package, with memory and PCI Express controllers integrated to support 2-channel DDR3 memory and 16 PCI Express 2.0 lanes. This provides great graphics performance. Intel® Ivy Bridge processors are among the most powerful and energy efficient CPUs in the world. Intel® B75 Express Chipset The Intel® B75 Express is the latest single-chipset design that supports the new socket 1155 Intel® Core™ i3/Core™ i5/Core™ i7 2nd and 3rd generation processors. It improves performance by utilizing serial point-to-point links, allowing for increased bandwidth and stability. Additionally, the P8B75-M LE comes with 1 SATA 6Gb/s and 5 SATA 3Gb/s ports for faster data retrieval, doubling the bandwidth of current bus systems. Moreover, Intel® B75 Express Chipset also supports iGPU function. PCIe 3.0 Ready PCI Express® 3.0 (PCIe 3.0) is the latest PCI Express bus standard with improved encoding schemes that provide twice the performance of current PCIe 2.0. Total bandwidth for a x16 link reaches a maximum of 32GB/s, double the 16GB/s of PCIe 2.0 (in x16 mode). As such, PCIe 3.0 provides users unprecedented data speeds, combined with the convenience and seamless transition offered by complete backward compatibility with PCIe 1.0 and PCIe 2.0 devices. PCIe 3.0 will become a must-have feature for users who wish to improve and optimize graphic performance, as well as have the latest technology available to them. PCIe 3.0 speed is supported by Intel® 3rd generation Core™ processors. Next-gen Technology Native SATA 6Gb/s Support The Intel® B75 Chipset natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems. Native USB 3.0 Support The Intel® B75 Chipset natively supports next-generation USB 3.0 technology. Experience ultra-fast data transfer at 4.8Gbps with USB 3.0 – the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10 times faster and is also backward compatible with USB 2.0 components. GPU Boost Go to the Limit with iGPU Level Up! GPU Boost accelerates the integrated GPU for extreme graphics performance. The user-friendly interface facilitates flexible frequency adjustments. It easily delivers stable system-level upgrades for every use. EPU Energy Efficiency All Around Tap into the world's first real-time PC power saving chip through a simple onboard switch or AI Suite II utility. Get total system-wide energy optimization by automatically detecting current PC loadings and intelligently moderating power consumption. This also reduces fan noise and extends component longevity! Network iControl Real-time Network Bandwidth Control With a single-click on/off button, the application currently in use has its data and network bandwidth prioritized over other programs. Moreover, you can prioritize your favorite software easily by configuring profiles through the intuitive user interface. Within the profile, programs can be pre-scheduled to run in a specific time period to avoid network congestion and long-waits on downloads. Auto PPPoE network connection provides a one-step setup for enhanced online convenience. Overall, it's an intuitive network bandwidth control center. AI Suite II One-stop Access to Innovative ASUS Features With its user-friendly interface, ASUS AI Suite II consolidates all the exclusive ASUS features into one simple to use software package. It allows users to supervise overclocking, energy management, fan speed control, voltage and sensor readings, and even interact with mobile devices via Bluetooth. This all-in-one software offers diverse and ease to use functions, with no need to switch back and forth between different utilities. ASUS FanXpert Active Quiet & Cool ASUS Fan Xpert intelligently allows users to adjust both the CPU and chassis fan speed according to different ambient temperature , which is caused by different climate conditions in different geographic regions and system loading.Built-in variety of useful profiles offer flexible controls of fan speed to achieve a quiet and cool environment. ASUS Anti-Surge Protection This special design prevents expensive devices and the motherboard from damage caused by power surges from switching power supply(PSU). CrashFree BIOS 3 The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip. Flexible and Easy BIOS Interface ASUS UEFI BIOS offers the first mouse-controlled graphical BIOS designed with selectable modes, providing a user-friendly interface that goes beyond the traditional keyboard-only controls. It also natively supports fully-utilized hard drive
Key Features
ASUS P8B75-M LX. Processor manufacturer: Intel, Processor socket: LGA 1155 (Socket H2), Compatible processor series: Intel® Celeron® G. Supported memory types: DDR3-SDRAM, Maximum internal memory: 16 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA II, SATA III. Parallel processing technology support: LucidLogix Virtu, Maximum graphics card memory: 1024 MB, Graphics card family: Intel. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111F
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P8B75-M LX motherboard Intel B75 LGA 1155 (Socket H2) micro ATX (P8B75-M LX) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P8B75-M LX motherboard Intel B75 LGA 1155 (Socket H2) micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P8B75-M LX motherboard Intel B75 LGA 1155 (Socket H2) micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P8B75-M LX.
